Sinotruk HOWO-A7 6X4 Tractor Truck with 420HP Engine

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

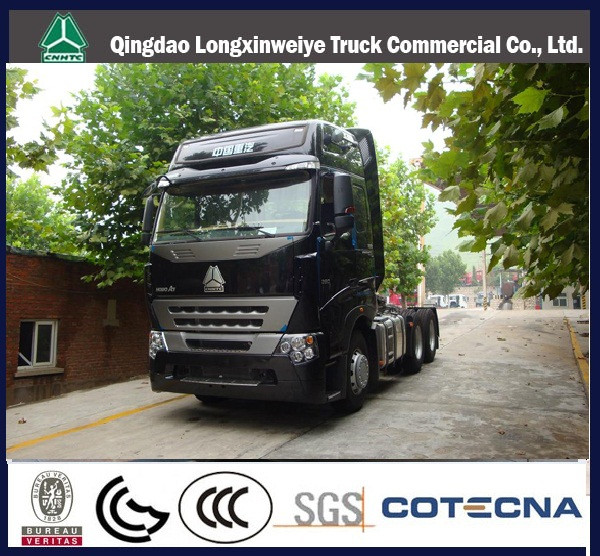

Sinotruk HOWO-A7 6X4 Tractor Truck with 420HP Engine

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Piece)	Unit Price
1.0	US $ 39800.0-48980.0/

Price:$39800.0 - $48980.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Jan 08, 2015 To Jan 24, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ4257V3247N1B

Transmission Type:Manual

Power:Diesel

Load Capacity:?50t

Emission Standard:Euro 3

Drive Wheel:6×4

Seats:?5

Horsepower:351-450hp

Engine Capacity:?8L

Tire Type:Inner Tube

Tire Design:Radial

Condition:New

Truck Type:Tractor Truck

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:SINOTRUK

Packing:Nude Packing

Standard:Euro 3 emission

Origin:Shandong, China

Production Capacity:6000units/Month

Product Description

Promotion Sinotruk HOWO-A7 6X4 Tractor Truck with 420HP Engine

We are the first level agency for SINOTRUK whole truck series, we can supply HOWO trucks and HOWO A7 truck series, include tractor trucks, dump trucks and concrete mixer trucks.
The HOWO A7 series trucks are developed on the base of HOWO trucks, with higher technology and higher equipment, EUROIII emission standard.

Technical
Performance Drive type 6x4
Overall Dimensions(mm) 6985x2496x3745

Transmission SINOTRUK HW19710ACL,
ATM type (Automatic & Manual), 10 forward
Speeds+2 reverse speeds WABCO system
Wheelbase(mm) 3200+1400
Rear tread (mm) 1830
Overall weight (kg) 25, 000
Gross Vehicle Weight (kg) 8, 800
Retractor bearing capacity (kg) 16, 070
Rated Pull Weight 40, 000
Max. Speed (km/h) 101

Engine Type D12, 42, 420HP, Euro 3
Displacement (CC) 11596 INSIDE CAB PIC
Max. Output power(HP/rpm) 420HP

Clutch
Spring plate dry diaphragm spring diameter
?430, hydraulic operating with air assistance
Driving axle HC16, 16tons (HOWO heavy hub reduction driving axle) Ratio: 4.42
Front axle HF9, 9 tons with plate (disc) brake
Steering ZF power steering model ZF8098 hydraulically steering with power assistance
Brake Serive brake: Dual circuit compressed air brake
Parking brake: Spring energy compressed air operating on rear wheels
Tank 600 Liter aluminum alloy
Tyre 315/80R22.5, tubeless tires
Cab Seating capacity (includes driver) HOWO A7-G, cab 2 persons with two beds
Air condition includes YES
ABS (WABCO) YES
Whole mudguards YES
Battery 180AH
Fuel tank 600L aluminum alloy
5th wheel: 90mm
Colour: White
Year of manufacturing April, 2012, brand new

Name	Promotion Sinotruk HOWO-A7 6X4 Tractor Truck with 420HP Engine
Dimension(LXW)mm	6865x2480 mm
Height	3210 mm	High-floor standard cab (without air spoiler)
	3540 mm	High-floor standard cab (with air spoiler)
	3745 mm	High-floor high-roof cab (without air spoiler)
	3850 mm	High-floor high-roof cab (with air spoiler)
Front overhang/rear overhang	1540/750, 725 mm (HW16 driving axle)
Wheelbase	3200+1400 (HW16 driving axle) /3225+1350 mm
Track	Track front	2022 mm
	Track rear	1830 mm
Cab	Brand-new a7 cab, 4-point full-floating air suspension, adjustable steering wheel with various heights and angles, air suspension seat, central door lock, electric window lifter, power mirror
Engine	Sinotruk's new D12 series engine; Turbocharged with inter-cooling; High-pressure common-rail fuel injection system with maximum pressure of 1600bar; NationalIII emission standard; Power range: 340-460hp; D10 series engine as option
Clutch	Sinotruk's 430 diaphragm spring clutch
Gear box	Sinotruk's 19710
Front axle	New HW07 single reduction driving axle; ST16 duoble reduction drive axle as option
Rear axle	HW single reduction drive axle; ST16 double reduction drive axle as option
Tire	315/80R22.5 tubeless tire
Brae system	Front disc rear shoes brake, four-circuit protection valve, EVB brake actuator, ABS+ASR+EBL+TPM
Frame	High-strength single U-profile frame with a section of 300908
Electrical system	24V, CAN bus intellectual electronic control system
