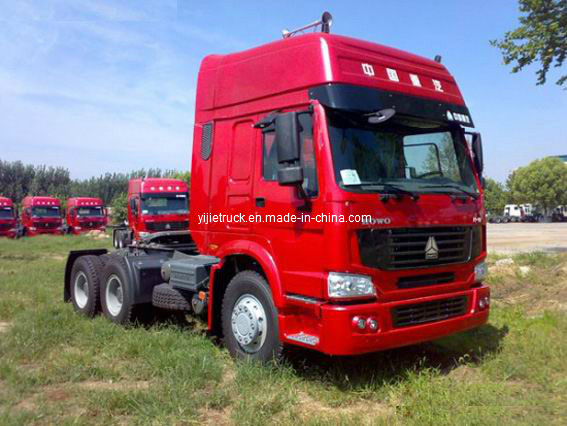

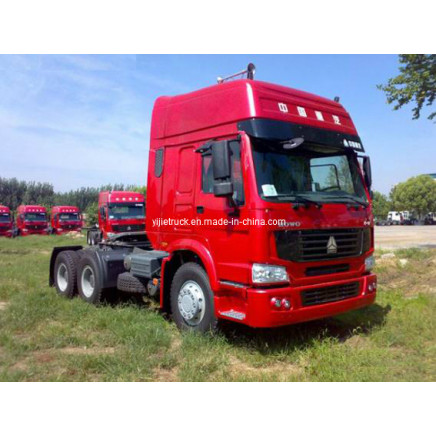

Sinotruk HOWO 6X4 Trailer Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Unit)	Unit Price
1.0	US $ 37800/

Price:US $37800.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Jun 03, 2015 To Sep 03, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ4257N3511W

Transmission Type:Manual

Power:Diesel

Load Capacity:31-40t

Emission Standard:Euro 3

Drive Wheel:6×4

Seats:?5

Horsepower:251-350hp

Engine Capacity:?8L

Tire Type:Inner Tube

Tire Design:Radial

Condition:New

Truck Type:Tractor Truck

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:SINOTRUK

Packing:Nude Packing

Origin:Shandong, China

Production Capacity:3000 Units/Month

Product Description

Sinotruk-HOWO 6x4 Trailer Truck

ZZ4257S3241V
Traction type: 6X4
Driving type: LHD (RHD is optioned)
Cabin: HOWO cab, flat head, double sleepers, tippable, high-roof
Engine brand: Sinotruk(Steyr technology)
Engine model: WD615.47
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
With water cooling, turbo-charging & intercooling
Displacement: 9.726 liters
Max. Output: 371HP@2200RPM
Max torque: 1100-1600
Bore/Stroke(mm): 126/130
Mean Position Speed: 9.53m/s
Compression ratio: 15.5: 1
Specific fuel consumption: 198g/Kwh

Gear box
Model: HW79
No. Of speeds: 9 forward, 1 reverse
Forward ratio: 12.42, 8.29, 6.08, 4.53, 3.36, 2.47, 1.81, 1.35, 1.00
Reverse ratio: 12.99
Clutch: 430 Diaphragm type
Steering: ZF8098 integral type power-steering
Fuel consumption (L/100km): 36
Fuel tank capacity (L): 400
Max. Speed (km/h): 90
Max. Gradeability(%): 25
Kerb. Mass: 9180kg
Total mass: 25000kg
Max towing load: 39800kg
Max load on 5th wheel: 15690kg
Turning circle diameter: 24m
Approach angle: 16 degree
Departure angle: 70 degree

SINOTRUK HOWO 6X4 TRACTOR TRUCK,TRACTOR HEAD 371HP
	MODEL	HOWO 6x4 TRACTOR TRUCK
Cab	Driving type	Left Hand Drive(RHD is optional)
Cab	Cab type	HW76 flat roof cab with one sleeper bed,with A/C
Engine	Engine Model	WEICHAI WD615.47,371hp
	Type	6-cylinder in-line with water cooling, supercharging & inter cooling
	Displacement	9.726L
	Engine output	371hp/2200 rpm
	Max. torque	1460NM /1300-1600rpm
Frame and equipments	Transmission (gear box)	HW19710,10 speed transmission
	Clutch	D430 Diaphragm type
	Steering	ZF8098
	Front axle	HF7 drum type, 7tons
	Rear axle	HC16 Double reduction Ratio=3.73
	Fuel tank	400L
	Tires	12.00R20, 10+1spare
Weights in kg	Kerb. mass	9180kg
	Total mass	25000kg
	Max.towed capacity	40tons to 60tons
Performance	Max. speed (km/h)	102
	Max. gradeability(%)	26
	Approach/departure angle	16/70 degree
Dimension in mm	Overall dimension(mm)	6800×2496×2958
	Wheel base (mm)	3200+1400
	Front/rear overhang (mm)	1500/725
	Front /rear wheel track(mm)	2022/1850
	Saddle joint surface height(empty/full)	1360/1326
	Front /rear turning circle(mm)	2790/2230
	Minimum ground clearance(mm)	267
	Saddle size	2''( 3.5'' is optional)
