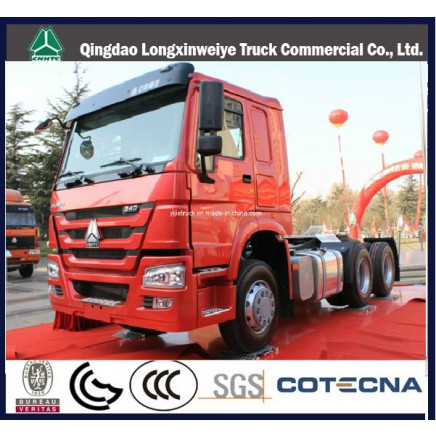

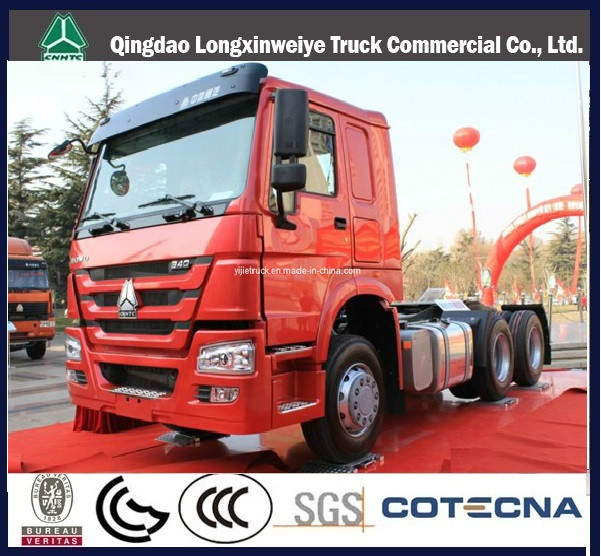

Sinotruk HOWO 6X4 Prime Move Tractor (ZZ4257N3241W)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Unit

Trade Terms:FOB, CFR, CIF

Payment Terms:L/C, T/T

Trademark:SINOTRUK

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ4257N3241W

Transmission Type:Manual

Power:Diesel

Load Capacity:?50t

Emission Standard:Euro 3

Drive Wheel:6×4

Seats:?5

Horsepower:351-450hp

Engine Capacity:?8L

Tire Type:Inner Tube

Tire Design:Radial

Condition:New

Truck Type:Tractor Truck

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:SINOTRUK

Packing:Nude Packing

Origin:Shangdong, China

Production Capacity:60000units/Year

Product Description

Sinotruk HOWO 6x4 Prime Move/Tractor Head(ZZ4257N3241W)

Cabin: HOWO cab, flat head, double doors, tippable, normal-roof
Engine brand: Sino truck
Engine model: WD615.69
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
With water cooling, turbo-charging & intercooling
Displacement: 9.726 liters
Max. Output: 336HP@2200rpm
Gear box:
Model: Fuller 9 speeds
Clutch:
Model: GF420 Spring type
Steering: ZF technology
Front axle: HOWO front axle
Rear axle: HOWO 1697 drive axles
Tyre: 12.00-20 (rim: 8.5-20)
Spring: 9/12
Fuel consumption (L/100km): 36
Max. Speed (km/h): 90
Max. Gradeability(%): 25
Kerb. Mass: 9180kg
Total mass: 25000kg
Max towing load: 39200kg
Max load on 5th wheel: 15690kg
Wheel base (mm): 3225+1350/3200+1400
Front overhang (mm): 1500
Rear overhang (mm): 725/700
Front track (mm): 2022
Rear track (mm): 1830
Turning circle diameter: 24m
Approach angle: 16 degree
Departure angle: 70 degree
Dimension (mm): 6800x2496x2958/3718

Engine brand	SINOTRUK HOWO 6X4 Prime Move/Tractor Head(ZZ4257N3241W)
Engine model	WD615.96(C), 375hp
Engine type	Diesel 4-stroke direct injection engine, 6-cylinder in-line, water cooled, turbo-charging & intercooling
Displacement	9.726 liters
Max. Output	375hp@2200rpm
Bore/Stroke	126/130mm
Compression ratio	17: 01
Specific fuel consumption	? 193g/kW. H
Driver' s Cab (with A/C, one sleeper)
Type	HW76, Forward control cab, hydraulically tiltable by 60o
Construction	Current standard all steel construction
Instrument panel	Clearly visible
Seats	Driver adjustable & passenger fixed
Seat belts	For driver & passenger
Glass	Tempered safety glass
Sun visors	Dual, adjustable
Mirrors	Large, truck type convex
Wind screen wiper	3 arm wind screen wiper system with 3 speeds
Entertainment system	FM/AM/SW, 4 band radio with cassette player, two speaker and antenna
Steering wheel	Adjustable steering wheel
Horn	Air horn
Panel	LCD Panel with LED light
