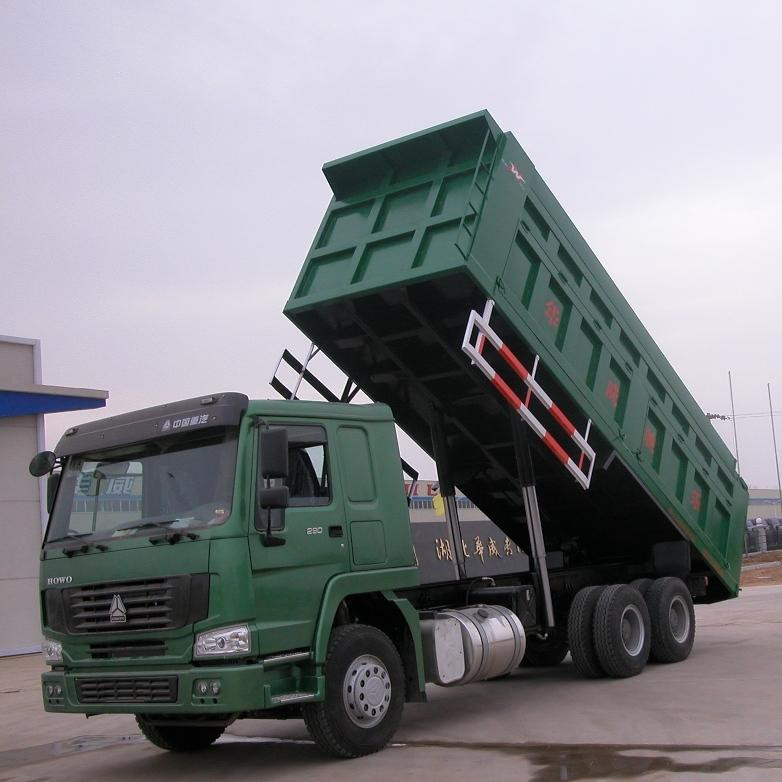

Sinotruk HOWO 6X4 Dump Truck Tipper Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF

Payment Terms:L/C, T/T

Trademark:HOWO

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ

Transmission Type:Manual

Power:Diesel

Load Capacity:31-40t

Emission Standard:Euro 2

Drive Wheel:6×4

Engine Capacity:?8L

Seats:?5

Horsepower:351-450hp

Tire Type:Inner Tube

Tire Certification:ECE

Tire Design:Tubeless

Dumping Type:Front Lifting Style

Condition:New

Wheel:6*4

Export Markets:Global

Additional Info.

Trademark:HOWO

Packing:Nude

Standard:6*4

Origin:China

HS Code:8704230090

Production Capacity:5000/year

Product Description

Engine: 336HP, 6-cylinder water cooling engine

Clutch: Single-plate dry oil-spring clutch

Front axle: Steering axle

Steering: ZF power steering, ZF8098

Geear Box: HW18709

Lifting: Middle Lifting system

Maximum Speed: 75Km/h

Fuel Consumption: 32L/100Km

6x4 Dump Truck
Cabin	Driving type		6×4 LHD
	HOWO Standard cab
Vehicle main Dimensions	Overall dimensions (L×W×H)mm		9755×2496×3170
	Wheel base (mm)		4625+1350
	Wheel track (front/rear) (mm)		2041/1830
	Approach/Departure angle(°)		19/22
Weight in KGS	Tare Weight		12100
	Loading Capacity		12770
	Front axles loading capacity		7000
	Rear axles loading capacity		2×9000
Max.driving speed (km/h)			75
Engine	Brand		SINOTRUK
	Model		ZZ3257M4641
	Type		4-stroke direct injection,6-cylinder in-line with water cooking, turbo-charging and inter-cooking
	Displacement (L)		9.726
	Horse Power (HP)/(KPM)		290HP/2200KPM
	Max.Torque/(KMP)		1160Nm/1100-1600RPM
	Emission standard		Euro II
Gearbox	FULLER9, 9 forward&1 reverse
Clutch	Reinforced diaphragm clutch, diameter 420mm



Steering Gear	ZF power steering, modol ZF8098, hydraulic steering with power assitance
Fuel tank (L)	400
Tire	12.00-20,Optional 12.00R20,11.00-20,11.00R20

Dump body
Dimension	L×W×H	7000×2300×1200	5200×2300×1250
Thickness	Floor	8mm	8mm
	Side	6mm	6mm
	Front	6mm	8mm
	Door	6mm	6mm
Hydraulics	Tipping Type	Front Lifting with HYVA psiton
	Working Pressure	190 bar
	Sustaining tipping weight	50,000 KG S

Additional Information
