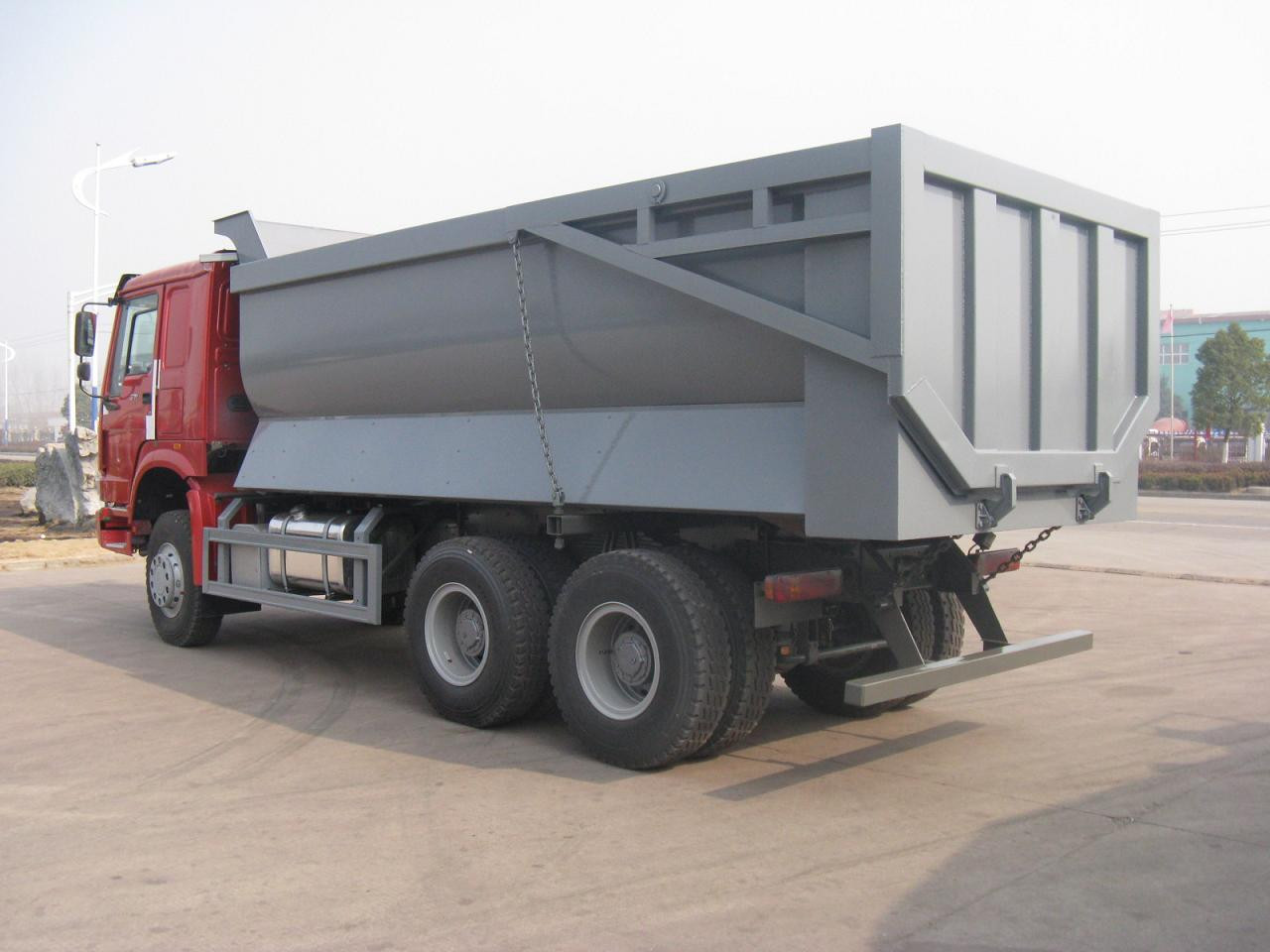

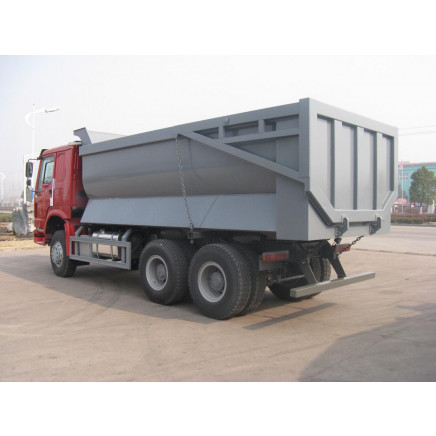

Sinotruk HOWO 6X4 40 Tons Tipper China Dump Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 35000.0-45000.0/ Piece

Price:$35000.0 - $45000.0 / Piece

Trade Terms: FOB, CFR, CIF, DDP, CIP, CPT, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Oct 30, 2014 To Jan 30, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ

Transmission Type:Manual

Power:Diesel

Load Capacity:30t

Emission Standard:Euro 2

Drive Wheel:4WD

Engine Capacity:4-6L

Seats:?5

Horsepower:251-350hp

Tire Type:Solid Tire

Tire Certification:ISO

Tire Design:Tubeless

Dumping Type:Bidirection Dumping Style

Condition:New

Truck Type:Dump Truck

Type:Tipper

Export Markets:Global

Additional Info.

Trademark:SINOTRUK

Packing:Nude

Standard:Euro Ii

Origin:China

Production Capacity:200 Sets/Year

Product Description

Cabin Driving type 6x4 LHD/RHD

HW76 cab, with A/C and one bed, 70° Hydraulically tillable to the front as attached photo for ref.

Vehicle Main DimensionsOverall dimensions (L x W x H)mm8900× 2496× 3386
Wheel base (mm)4125+1350
Wheel track (front/rear) (mm)2020/1830
Approach/Departure angle(° )19/23
Weight in KGSTare Weight12300
Payload28700
Front axles loading capacity1x9000
Rear axles loading capacity2x16000
Max. Driving speed(km/h)75
Engine BrandSinotruk
ModelWD615.69
Type4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP)336
Emission standardEuro II
GearboxHW19710, 10 Forwards gear & 2 reverse gear
ClutchReinforced diaphragm clutch, diameter 430mm
Steering GearZF 8098, power steering, hydraulic steering with power assistance
Fuel tank (L)400
Tire 12.00R20 ALL STEEL RADIAL TYRE
Brakes Service brake: Dual circuit compressed air brake
Parking brake: (emergency brake): Spring energy, compressed air operating on rear wheels
Auxiliary brake: Engine exhaust valve brake
Bin size6000*2300*1500 mm, 20.7 cbm, side is 6 mm, front and bottom 8 mm
Hydraulic systemHYVA cylinder, front lift

product Specifications
Overall dimension (LWH)		8214x2496x3386 mm
Cargo body size ( LWH, mm )		5400x2300x1500 mm
Emission Standard		EURO II III IV V optional
Driving Position		Left Hand Driving
Vehicle curb weight		12290 kg
Vehicle gross weight		25000 kg
Wheelbase		3625+1350 mm
Steering model		ZF8098
Transmission		HW15710 10 forwards and 2 reverse
Front axle		HF9 , Steering with double T-cross section beam Loading capacity:9000KG
Rear axle		HC16 , Casting axle housing, central double reduction with differential locks between axles and wheels
Oil Tank Capacity		300 L with locking fuel cap
Clutch		Single-plate dry clutch ?420mm
Tire		12.00 -- 20 11 pieces
Brake System	Service	Dual circuit compressed air brake
	Parking	spring energy, compressed air operating on rear wheels
	Auxiliary	Engine exhaust brake
Cabin	HW7 6 cab	single sleeping, with air-condition
		Option: without berth or with one berth can be choose
