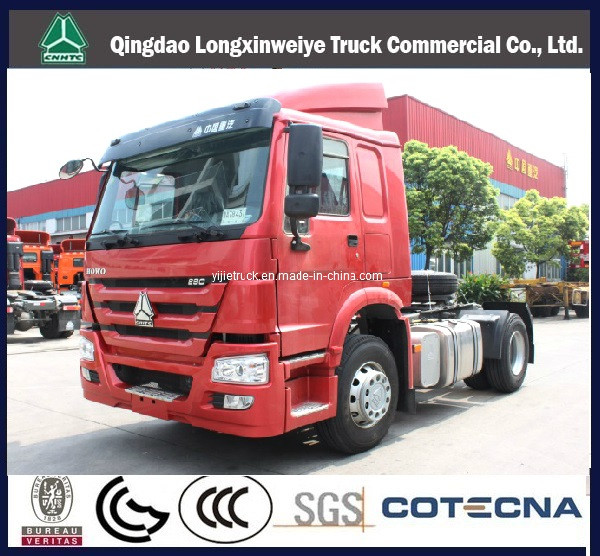

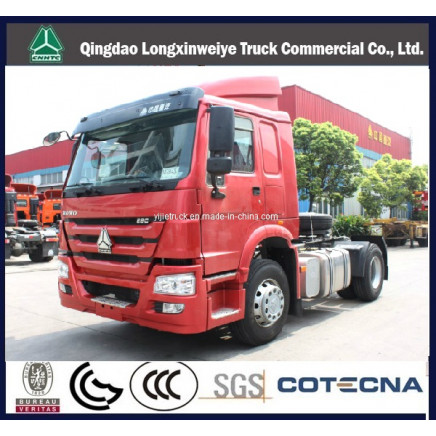

Sinotruk HOWO 4X2 Tractor Truck 336HP

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Piece)	Unit Price
1.0	US $ 18000.0-24000.0/

Price:$18000.0 - $24000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Jan 08, 2015 To Jan 14, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ4187N3517C

Transmission Type:Manual

Power:Diesel

Load Capacity:11-20t

Emission Standard:Euro 3

Drive Wheel:4×2

Seats:?5

Horsepower:251-350hp

Engine Capacity:?8L

Tire Type:Inner Tube

Tire Certification:GCC

Tire Design:Radial

Condition:New

Truck Type:Tractor Truck

Type:Heavy Duty Truck

Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:CNHTC-SINOTRUK

Packing:Nude Packing

Origin:Shandong, China

Production Capacity:3000units/Month

Product Description

Sinotruk HOWO 4X2 Tractor Truck 336HP

1.howo 4x2 tractor truck head.
1). This truck is sinotruk mature products;
2). Stable and reliable structure, strong carrying capacity;
3). Superior performance, stable and reliable performance, can satisfy different road conditions;
4). Cab is not only beautiful and easy but safe and comfortable, suitable for long distance transportation of highway and highway transportation;

2. Main parameter.

1). Engine: CNHTC brand WD615.95C, 340hp, Euro III emission;
2). Transmission: 12 speeds (HW19712CL);
3). Steering: ZF8098 hydraulic steering with power assistance
4). Front axle: HF7, load 7ton
5). Rear axle:MCY13 driving axle, load 13ton
6). Rim/Tyres: 295/80R22.5
7). Brake: with ABS system
8). Total weight of trailer: 34600 kgs;
More details please check the table.

Model		ZZ4187M3511W(V)	ZZ4187N3511W(V)	ZZ4187S3511W(V)
	Model	HW 76(HW79)	HW 76(HW79)	HW 76(HW79)
Cab	Type	Cab with extended high floor,4-point floating air suspension+shock absorber+lateral stability device , single partible sleeper , driver seat with air suspension , adjustable steering wheel , Euro BEHR new overall air conditioning heater , VDO instrument,CAN bus and electric control system , safrty belt with double lock , the locks for electric lifting glass and rearview mirror are all in one , external sun shade , above fairing+side wind scooper , electronic handle accelerator
	Model	WD615.62(WD615.87)	WD615.69	WD615.447(D12.38)
	Output	266(290)	336	371(380)
Engine	Rated power kW/rpm	196/2200(213/2200)	247/2200	273/2200
	Max torque Nm/rpm	1160/1300-1600	1470/1300-1600	1590/1200-1500
	Displacement L	9.726	9.726	9.726
Clutch		Single-plate dry coil-spring clutch,diameter420mm,hydraulically operating with air assistance
Transmission		HW15710	HW15710	HW19710
Front axle		HF7,Specified load : 7 ton,disc or drum brake
Rear axle		HW1667 single reduction(speed ratio standard configuration: 3.73 ; 4.22 as potion);except ZZ4187V3517N1B/V2PC ST16 double reduction(speed ratio standard configuration : 3.93 ; 4.42 and 4.8 as option)as option except for ZZ4187V3517N1B/V2PC
Suspension		Both front and rear suspension are plate spring +shock absorber+performance rod
Steering		ZF8098 Steering
Braking system		Service brake: dual circuit compressed air brake Parking brake (emergency brake):spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake
Electrical system		Operating voltage:24 V, negative grounded Starter:24 V,5.4Kw Alternator:3-phtase,28 V,1500 W Batteries:2×12 V,165Ah Cigar-lighter, horn, headlamps, fog lights, brake lights,indicators and reverse light
Wheel Tyre		12.00R20
Curb weight kg		7180(7210)	7180(7210)	6800
Gross mass kg		19000	19000	19000
Standard hang weight kg		31000	37100	38600
Rated capacity at the fifth wheel(kg)		11645	11645	11645
Overall dimension (L×W×H) mm		6110×2480×3718	6110×2480×3718	6110×2480×3718
Wheel base mm		3500	3500	3500
Front/Rear overhang mm		1500/1110	1500/1110	1500/1110
Min ground clearance mm		298	298	298
Approach/Departure angle °		15/42	15/42	15/42
Max speed km/h		102	102	102
Min turing diameter m		14.2	14.2	14.2
Pin specification		50#(2 inch)	50#(2 inch)	50#(2 inch)
