Sinotruk HOWO 4X2 Tractor 290HP Trailer Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Unit)	Unit Price
1.0	US $ 39800.0-42300.0/

Price:$39800.0 - $42300.0 / Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Apr 21, 2015 To Jul 21, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ4187M3511W

Transmission Type:Manual

Power:Diesel

Load Capacity:21-30t

Emission Standard:Euro 2

Drive Wheel:4×2

Seats:?5

Horsepower:251-350hp

Engine Capacity:?8L

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Condition:New

Truck Type:Tractor Truck

Engine Volume:9624L

Horse Power:266HP-430HP

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:SINOTRUK

Packing:Nude Packing

Origin:Shandong, China

Production Capacity:3000 Units Per Month

Product Description

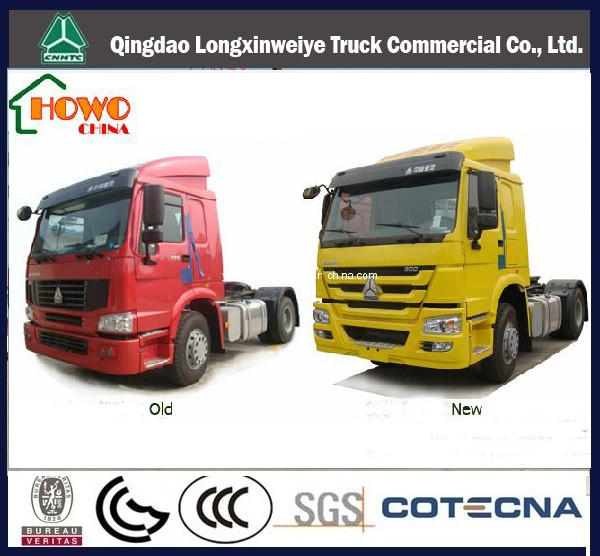

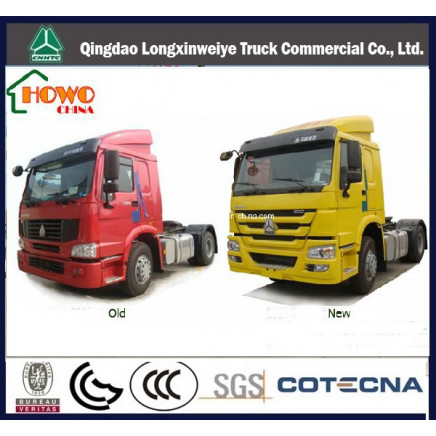

Sinotruk HOWO 4X2 Tractor 290HP Trailer Truck

Supply HOWO 4x2, 6x4 tractor truck, including the engine of 266hp. 290hp, 371hp, 380hp. Also have STEYR series tractor truck.

1) Engine model: WD615.87 (290HP)
2) Clutch: Single-plate dry clutch, GF420, hydraulically operating with air
Assisted
3) Transmission: Fuller RT-11509C, constant-mesh, 9 forward and 1 reverse
4) Propeller shaft: Flange with end gear
5) Front axle: Rigid stub axle with double T-cross section
6) Steering: ZF8098, hydrostatic steering with power assisted, ratio 26.2: 1
7) Wheels and tires: Disc wheels 8.5-20, tires 12.00-20 18ply rating
8) Height of saddle above road: 1, 328mm
9) Maximum driving speed: 85km/h
10) Maximum gradeability: 31%
11) Minimum ground clearance: 298mm
12) Minimum turning circle: 14.2m
13) Fuel consumption: 36L/100km
14) Rated traction weight: 35, 500kg
15) Maximum loading capacity at fifth wheel: 18, 000kg
16) Dead weight: 7, 210kg
17) Gross vehicle weight: 19, 000kg
18) Front axle loading capacity: 6, 500kg
19) Gross combination weight: 55, 000kg
20) Rear axle loading capacity: 13, 000kg
21) Wheelbase: 3, 500mm
22) Front wheel track: 1, 939mm
23) Rear wheel track 1, 800mm
24) Front overhang: 1, 576mm
25) Rear overhang: 1, 110mm
26) Approach angle: 15 degrees
27) Departure angle: 42 degrees
28) Overall length: 6, 110mm
29) Overall width: 2, 496mm
30) Overall height: 3, 958mm

SINOTRUK HOWO 4X2 TRACTOR TRUCK/290HP Trailer
	MODEL	HOWO 4X2 TRACTOR TRUCK
Cab	Driving type	Left Hand Drive(RHD is optional)
Cab	Cab type	HW79 high roof cab with two sleeper beds,with A/C
Engine	Engine Model	WEICHAI WD615.47,371hp
	Type	6-cylinder in-line with water cooling, supercharging & inter cooling
	Displacement	9.726L
	Engine output	371hp/2200 rpm
	Max. torque	1460NM /1300-1600rpm
Frame and equipments	Transmission (gear box)	HW19710,10 speed transmission
	Clutch	D430 Diaphragm type
	Steering	ZF8098
	Front axle	HF7 drum type, 7tons
	Rear axle	HC16 Double reduction Ratio=3.73
	Fuel tank	400L
	Tires	12.00R20,6+1spare
Weights in kg	Kerb. mass	7210kg
	Total mass	18000kg
	Max.towed capacity	40tons
Performance	Max. speed (km/h)	102
	Max. gradeability(%)	30
	Approach/departure angle	16/42 degree
Dimension in mm	Overall dimension(mm)	6110×2496×3563
	Wheel base (mm)	3500
	Front/rear overhang (mm)	1500/1110
	Front /rear wheel track(mm)	2022/1850
	Saddle joint surface height(empty/full)	1330/1297
	Front/rear turning circle(mm)	2220/1820
	Minimum ground clearance(mm)	267
	Saddle size	2''( 3.5'' is optional)

Additional Information
