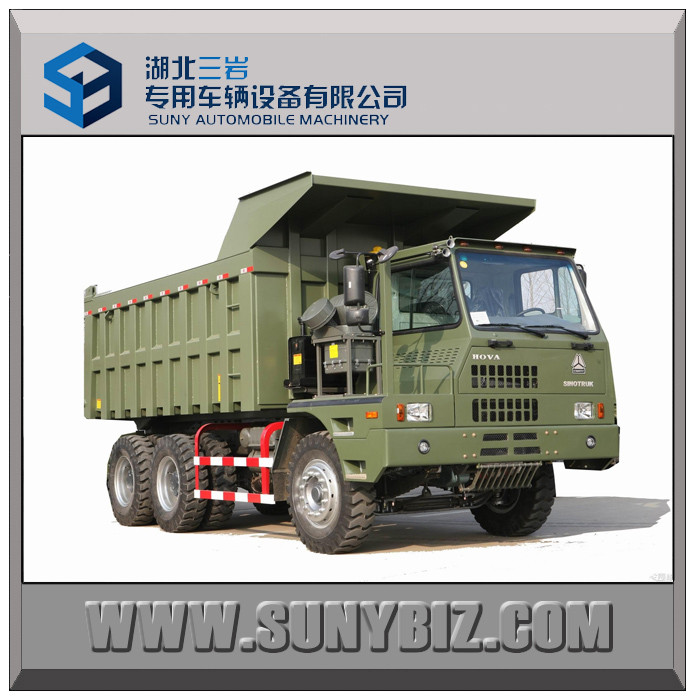

Sinotruk HOWO 371HP & 420HP Heavy Mining Dumper Truck

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Sinotruk HOWO 371HP & 420HP Heavy Mining Dumper Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$60000.0 - $80000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 80000/ Piece
20.0	US $ 70000/ Piece
50.0	US $ 60000/ Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Apr 28, 2015 To Dec 31, 2017

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ5707V3840CJ

Transmission Type:Manual

Power:Diesel

Load Capacity:61-70t

Emission Standard:Euro 2

Drive Wheel:6�4

Engine Capacity:?8L

Seats:?5

Horsepower:351-450hp

Tire Type:Inner Tube

Tire Certification:GCC, ISO

Tire Design:Radial

Dumping Type:Front Lifting Style

Condition:New

Chassis Brand:Sinotruk Hw7d

Engine:D12.42 309kw /420HP Optional 371HP

Gerbox:Hw21712 ,12-Speed

Drivre Axle:AC26 Heavy Reduction Drive Axle

Cargo Body Size:5800X3100X1800mm

Cargo Body Volume:28cubic-35cubic

Thickness:Side 10mm;Bottom 12mm

Lifting System:with Front Hydraulic RAM

Hydraulic Cylinders:Optional Hyva Brand

Rear Door:Single Door

Export Markets:Global

Additional Info.

Trademark:SUNY

Packing:After Waxing by Container, RO-RO, Bulk Freighter

Standard:ISO&CCC

Origin:Hubei Suizhou

Production Capacity:500 Unit / Month

Product Description

Sinotruk howo 371hp & 420hp heavy mining dumper truck
dump truck with HW7D single row.mining STR Rear axle,mining tire 14.00-25 or 14.00R20
howo dumper equtipment HYVA lift system,howo70 PTO,howo gearbox 12-speed.etc

Chassis Info:
howo TRUCK. Load capacity 55T,60T,65T,70t,80t
Diesel engine, 309kw / 420hp,12-speed Manual Gearbox,Dual-circuit air brake,24V.

Dump Cargo body:
Size:5800*3100*1500/1800mm ,
28CBM Dump Truck,30CBM Dump Truck,32cbm Dump Truck/Tipper truck

Equipped with material of carbon steel Q235,Side 10mm thickness;bottom 12mm thickness,
Equipped with front hydraulic ram(Optional HYVA Brand),Single rear door.

Sinotruk HOWO 371HP & 420HP Heavy Mining Dumper Truck

Chassis Specifications
Model		ZZ5707V3840CJ
Cab		SINOTRUK HW7D single side cab, no bunk,left driving,air conditioner
Driving Type		6x4
Overall Dimensions(mm)		8600�3300�4340
Wheel base(mm)		3800+1500
Gross vehicle weight (Kg)		75000
Kerb weight (Kg)		23000
Rated load weight(Kg)		52000
Performance	Maximum drving speed (km/h)	46(10.47)/57(8.51)
	Fuel consumption (1/100 km)	50
Engine	Model	D12.42T2
	Horsepower	420
	Maximum output Kw/r/min	309/2000
	Maximum torque N.m/r/min	1820/1100-1500
	Type	6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
	Bore x Stroke	126x155mm
	Valve	4
	Displacement	11.596L
	Make SINOTRUCK (CNHTC), Euro 2 emission standard, Rigid fan. Option:Cold-start with electric-inlet-air heating System
Clutch	SINOTRUK CH430-21-model diaphragm-spring clutch,hydraulically operating with air assistance
Transmission	SINOTRUK HW21712 transmission ,12 forward and 2 reverse with HW70 power takeoff
Front Axle	SINOTRUK HF12 Front Axle,HOWO 12-ton front axles of equipped with drum brakes.
Steering	ZF8098 Steering Gear Box ,hydraulic steering with power assistance
Rear Axles	SINOTRUK AC26 Heavy reduction drive axle, STR hub-reduction with differential locks between wheels and axles, enforced STR axle
Brake System	Service brake	dual circuit compressed air brake
	Parking brake	spring energy,compressed air operating on rear wheels
	Auxiliary brake	engine exhaust valve brake;EVB
Wheels & Tyres	Rims:10.0-25,12 hole-steel ;Tyres:14.00-25(36PR) Mining tyre with 1 Spare tire Option:14.00R25 Mining radial tyre
Electrics	Operating voltage	24V,negative grounded
	Starter	24V,7.5 Kw
	Alternator	3-phase,28V,1540 W
	Batteries	2x12 V,180 Ah Batteries
Oil Tank	D type-500L Aluminum alloy fuel tank
Cargo body Specifications
Cargo body Dimensions(mm)		5800x3100x1800
Cubage (m3)		32.364
Steel thickness of Carriage(mm)		Floor:14mm/Side:12mm
Hydraulic Lift of Carriage		Front Lift

Optional Dump Type:
1.Truck:(rear)Dump truck,Side dump truck; 40ton~65ton side tipper truck
2.Trailer: (rear)Dump trailer,Side dump trailer,Front side dump,rear dump trailer; 50ton ~ 100ton side tipper trailer
3.Full trailer and Side dump full trailer. 15ton~20ton~25ton~30ton full trailer
4.flatbed dump truck and faltbed dump trailer. 30ton~35ton~40ton~45ton~50ton~60ton flatbed tipper truck
5.U-Type dump truck & Dump truck crane (with XCMG,UNIC,SANY,Crane) & Mining Dump truck. 25ton ~ 80ton

We also have howo water tank truck,Oil tank truck,Garbage truck,Van truck,Flatbed Truck,Dump truck,Truck with crane,etc

Other brand of Chassis eg,Dongfeng-DFAC,FOTON-AUMAN-FORLAND,FAW-J5-J6,SHACMAN-F3000-M3000-X3000,SIONTRUK-HOWO-A7,Beiben,IVECO-HONGYAN-GENLYON,JAC,JMC,YUEJIN,KAMA,T-KING,UD,HINO,ISUZU,etc.

A.Product Series
1. Fuel tank truck/trailer/semi-trailer/container.
2. Water tank truck/trailer/semi-trailer/container.
3. Chemical tank truck/trailer/semi-trailer/container.
4. Bitumen tank truck/trailer/semi-trailer/container.
5. Bulk powder tank truck/trailer/semi-trailer/container.
6. Gas tank truck/trailer/semi-trailer/container.
7. Dump truck/trailer/semi-trailer
8. Truck mounted crane
9. Fecal suction truck.
10. Sewage suction vacuum tank truck.
11. High pressure washing truck.
12. Sewage suction vacuum tank and high pressure washing truck.
13. (vacuum)Sweeper truck.
14. Garbage truck(swing arm type,sealed dump type,compression type,hanging barrel type,docking type)
15. Concrete mixer truck
16. Fire truck
17. Wrecker
18. Refrigerator truck/trailer/semi-trailer
19. Platform transported truck/trailer/semi-trailer
20. Van truck/trailer/semi-trailer
21. High-altitude operation truck

B,Packaging & Shipping:
Truck is nude packing, shipping by container, bulk cargo, ro-ro.
We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!
Sinotruk HOWO 371HP & 420HP Heavy Mining Dumper Truck

C:Customer service:
We supply sincerity, efficient, professional, happiness service on pre-sale, in the sale, after-sale
Any requiry will be replied within 24 hours.
High quality ,competitive&reasonable price, fast lead time.
Our products are direct from factory,there is no middle man,no high markup,so we can provide quality items yet very competitive price.
We guarantee that all our goods has gone through strict quality control and testing to ensure that it is in good condition before ship out.We strive for 100% customer satisfaction on every sale we complete.
Fast delivery time: within about 10~~20 working days.
We provide 12 months warranty.
We supply quick-wear parts and spare parts in time for customer.

IF YOU HAVE ANY QUESTIONS PLEASE LET Adam Li KNOW.
Mob:0086 137 0717 3051
