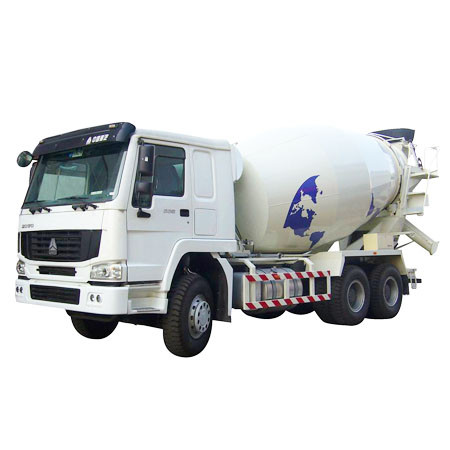

Sinotruk HOWO 290HP 8CBM 6X4 Concrete Mixer Truck EuroII

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 50000/ Piece

Price:US $50000.0 / Piece

Trade Terms: FOB

Payment Terms: L/C, T/T

Price Valid Time:From Jul 30, 2012 To Oct 30, 2012

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Transmission Type:Automatic

Condition:New

Color:White

Power:Diesel

Emission Standard:Euro 2

Truck Type:Mixer Truck

Tire Design:Bias

Seats:?5

Tire Certification:GCC

Tire Type:Inner Tube

Export Markets:Global

Additional Info.

Trademark:SINOTRUK

Packing:Nude Packing

Standard:EURO II

Origin:China

Production Capacity:100000

Product Description

SINOTRUK HOWO 290HP 8CBM 6X4 CONCRETE MIXER TRUCK EUROII

Engine
Manufacturer: SINOTRUK
Disel: 4-Stroke direct injection diesel engine 6-cylinder in-line with water cooling, turbo-charging and intercooling
Engine model: STEYR, Euro II, WD615.87
Maximum output: 290HP(213kW)at 2200 rpm according to DIN
Maximum torque: 1150Nm at 1100-1600 rpm
Displacement: 9.726L
Bore: 126mm Stroke: 130mm

Clutch
? 430diaphragm spring clutch A-type, hydraulically operating with air assistance

Transmission
HW15710 10 Forward& 2 Reverse

Driving axle
HC16 Pressed axle housing, single reduction with hub reduction and with differential locks between axles and wheel

Front Axle
HF 9
Chassis
Steering with double T-cross section beam

Frame: U-profile parallel ladder frame with section of 850× 80× 8mm and reinforced subframe, all cold riveted cross members
Rear suspentsion: 12 leaf semi-elliptic springs, and bogie springs, and stabilizer
Fuel tank: 300 L capacity with locking fuel cap, fitted to the off side of the chassis
Steering Model ZF8098, hydraulic steering with power assistance

Braking System
Service brake: Dual circuit compressed air brake
Parking brake(emergency brake): Spring energy, compressed air operating on rear wheels
Auxiliary brake: Engine exhaust valve brake

Wheel & Tyres
12.00-20 Bias tyres Rim: 8.5-20 No. Tire: 10+1 spare

Dimensions in mm
Wheel base	3625+1350
Front wheel track	2022
Rear wheel track	1830
Front overhang	1500
Rear overhang	1870
Approach angle(& deg; )	19
Departure angel(& deg; )	23
Overall length	8714
Overall width	2496
Overall height	3386
Concrete mixer body
Body capacity	8 cbm
Motor	ETON
Decelerator	TOP
PUMP	TOP
Weight in kg
Kerb weight	14270
Front axle loading capacity	9000
Rear axle loading capacity	16000x2
Performance
Maximum driving speed(km/h)	90
Maximum gradeability(%)	30
