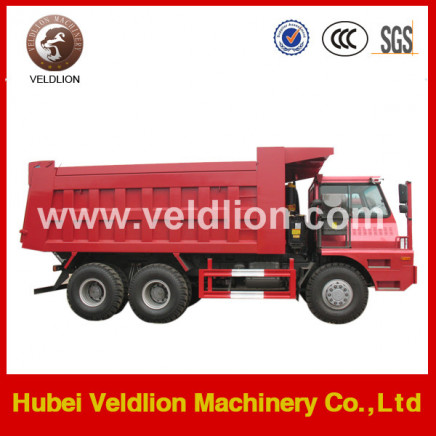

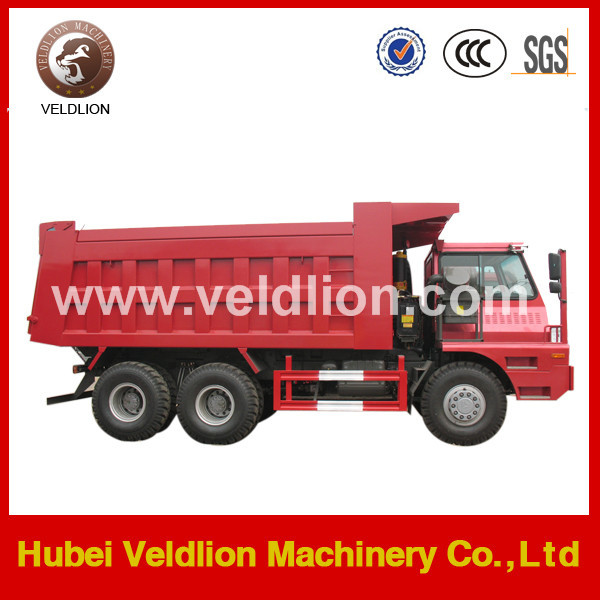

Sinotruk Heavy Duty Mining Tipper Truck Loading

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 45500/ Piece

Price:US $45500.0 / Piece

Trade Terms: FOB, CFR, CIF, FCA, EXW

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From Jun 11, 2014 To Sep 10, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:VL3257

Transmission Type:Manual

Power:Diesel

Load Capacity:21-30t

Emission Standard:Euro 2

Drive Wheel:6в4

Engine Capacity:4-6L

Seats:?5

Horsepower:251-350hp

Tire Type:Solid Tire

Tire Certification:ECE

Tire Design:Tubeless

Dumping Type:Front Lifting Style

Condition:New

Dump Truck:Tipper Dump Truck

Fump Truck Certification:ISO, BV Test, CCC, SGS

Export Markets:Global

Additional Info.

Trademark:Veldlion

Packing:Nude Package or Roro Ship

Origin:Hubei

Production Capacity:3000PCS Per Month

Product Description

1. Technical parameters of the tipper dump trucks.
(1) For construction and industrial trucks
(2) Curb Weight: 12500kgs
(3) Loading Weight: 25000kgs
(4) Box Volume: 21000L
(5) Engine Power: 266Hp - 420Hp
(6) Steelsheet Thickness: Floor 8mm, front, side and back wall 6mm

We also supply you the other type of HOWO, 4*2, 4*4, 6*2, 6*4, 6*6, 8*4 different engine power(270HP, 290HP, 310HP, 330HP, 350HP, 380HP, and 420HP), EURO II, and EURO III dump truck. We could choose the right truck for you and confirm that is your good assistant in your work.

2. Company introduce
HUBEI VELDLION MACHINERY CO., Ltd is an authorized Special Trucks manufacturer. We are specialized in the production of a variety of special-purpose vehicles.
Creating value for our customers is our company's concept. Welcome to enquiry from us, Let's our sales team make you more great in this field.
Our main products:
1. Heavy duty truck,
2. Fire engine truck
3. Truck mounted with crane
4. Dump truck
5. Water truck,
6. Fuel tanker,
7. Van truck, insulated truck, refrigeration truck
8. Fecal suction truck, sewage suction truck,
9. Concrete mixer truck,
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Bulk cement truck,
13. Chemical liquid tank truck

3. Contact us
Atten: Ms. Julia He
Mobile: 0086-15927026165
www.veldlion.com

MAIN DESCRIPTION
Overall Dimension	8145mm 2500mm3340mm (LWH)
Payload	25ton		Curb Weight	12500kg
Front Overhang	1500mm		Rear Overhang	1670mm
Wheelbase	3625mm + 1350mm
CHASSIS
Chassis Brand	SINOTRUK HOWO ZZ3257N3647A
Driving Type	6x4
Cab	HW76, left hand drive, air-conditioner, one bed
Engine and Power	Brand: SINOTRUK, diesel engine, 336hp (247kw), 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, Euro II emission standard
Steering	ZF8098, hydraulic steering with power assistance
Gear Box	HW15710, 10 forward speeds and 2 reverse
Clutch	Model: 430, diaphragm clutch
Front Axle	HF9, load capacity 9 ton, drum brake
Rear Axle	HC16 tandem axle, load capacity 13000kg x2, ratio 5.73
Tire	12.00-20, 11units including 1 spare tire
CARGO BODY
Inside Dimension		5400mm 2300mm1500mm(LWH)
Hydraulic Cylinder		Ventral T-type hydraulic system
Steel sheet thickness		Floor 8mm, front, side and back wall 6mm
Tailgate		One-piece tailgate with upper articulation, safety lock system
