Sinotruk Golden Prince 6X4 Dump Truck Tipper for Sale

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

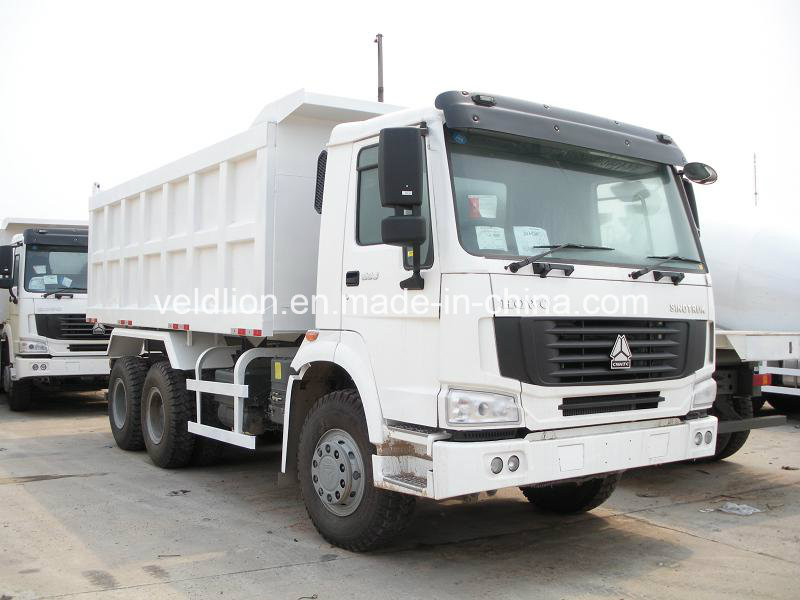

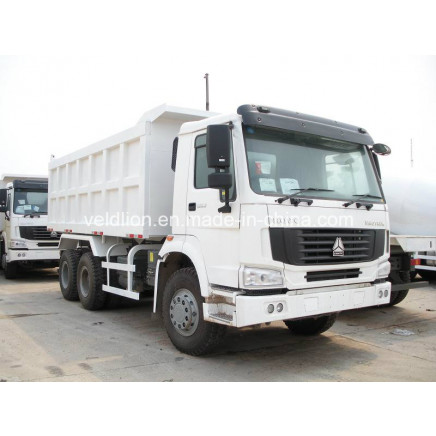

Sinotruk Golden Prince 6X4 Dump Truck Tipper for Sale

More Views

Sinotruk Golden Prince 6X4 Dump Truck Tipper for Sale

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 45000/ Piece

Price:US $45000.0 / Piece

Trade Terms: FOB, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Jul 10, 2015 To Oct 08, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:VL3251

Transmission Type:Manual

Power:Diesel

Load Capacity:21-30t

Emission Standard:Euro 3

Drive Wheel:6в4

Engine Capacity:4-6L

Seats:?5

Horsepower:251-350hp

Tire Type:Solid Tire

Tire Certification:ISO

Tire Design:Bias

Dumping Type:Middle Tipping Type

Condition:New

Zz3257n364:Dump Truck

Truck Type:Dump Truck

Type:Dump Truck

Export Markets:Global

Additional Info.

Trademark:VELDLION

Packing:in Bulk or in Container, Wax Polished

Standard:CE, ISO9001: 2000

Origin:China

HS Code:8716311000

Production Capacity:300 PCS Per Month

Product Description

1. Technical parameters of the dump trucks/tippers.

Sinotruk Goldenprince 6X4 Dump Truck/Tipper Truck

Traction type: 6X4
Driving type: LHD (RHD is option)

Engine
Engine brand: SINOTRUK BRAND
Engine model: WD615.62 266HP Euro II
Engine type: 6-cylinder in line, 4-stroke, water-cooled, turbocharged, air-to-air intercooled, direct injection
Displacement: 11.596 liters
Max. Output: 336HP@2200rpm
Max torque: 1500NM@1200-1600rpm
Bore/Stroke(mm): 126/155
Specific fuel consumption: 198g/Kwh

Gear box
Gear box: HW19710
Clutch: D430 Diaphragm type
Steering: ZF technology

Tyre Tyre: 12.00-20
No. Of tyre: 10+1spare

Front axle: HOWO front axle 9ton
Rear axle: HC16
Fuel tank capacity (L): 400 Aluminium Alloy Tank
Max. Speed (km/h): 75
Kerb. Mass: 8900kg
Total mass: 25000kg
Wheel base (mm): 4925+1350
Front overhang (mm): 1550
Rear overhang (mm): 1825
Front track (mm): 2022
Rear track (mm): 1830/1830
Approach angle: 20 degree
Departure angle: 22 degree
Dimension (mm): 8825X2496X3100

Body:
Inner size(mm): 5600X2300X1500
Capacity: 19.32 CBM
Thickness of body steel(mm): Floor 8 mm side & back 4 mm
Tipping type: Middle tipping type

We can offer SINOTRUK, DONGFENG, SHACMAN, FAW, FOTON, ISUZU 4X2, 6X4, 8X4, 10X6 dump trucks/ tippers.

Sinotruk Golden Prince 6X4 Dump Truck Tipper for Sale

2. Company introduce

HUBEI VELDLION MACHINERY Co., Ltd is an authorized forklift manufacturer. We are specialized in the production of a variety of special-purpose vehicles.

Creating value for our customers is our company's concept. Welcome to enquiry from us, Let's our sales team make you more great in this field.

Our main products:

1. Chemical liquid tank truck
2. Fire engine truck
3. Truck mounted with crane
4. Heavy duty truck, dump truck
5. Water truck,
6. Fuel tanker,
7. Van truck, insulated truck, refrigeration truck
8. Fecal suction truck, sewage suction truck,
9. Concrete mixer truck,
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Bulk cement truck,

3. Contact us
Atten: Julia He
Cellphone: 0086-15927026165
www.veldlion.com

Main Technical Parameter
Product Model	SINOTRUK Dump truck	Product Brand	SINOTRUK-STYER
Wheelbase(mm)	3200+1350	Overall Dimension(LWH)	7440в2490в3250,3450
Front/ rear suspension(mm)	1320/1570	Compartment Dimension(LWH) (mm)	4800в2300в1300
Curb weight(kg)	12170	Axle number	2
Approach/ departure angle ( ╟ )	20.5/28	Max Speed (km/h)	75
Cab capacity	2 or 3	Cab Type	Flat proof, mid length cab, single sleeper
Chassis Technical Parameter
Chassis Model:	ZZ3251	Chassis manufacturer:	CNHTC
Gear Box	HOWO 10 shift (10 forward and 2 reverse)	Transmission type:	Manual
Steering Type	LHD with hydraulic power steering	Traction Type:	6*4
Brake System	Air brake	Number of Tire	10 with 1 spare tire
Leaf Spring number:	10/12	Tire size/type	11.00R20 (steel tire)
Engine specification
Engine Model:	WD615.92	Engine Brand	CNHTC
Fuel type:	Diesel	Displacement(ml)	9726
Emission stand	Euro 3	Power(kw)	196(266hp)
	1. 24V Electric system, electrically hydraulic operation control
	2. load Capacity:15m 3 -17m 3
	3.Lifting type: Middle lifting type ,rear dump type
	4. Material: floor 8mm side & back 6mm thickness carbon steel
Warranty	12 months, from the date of supply
