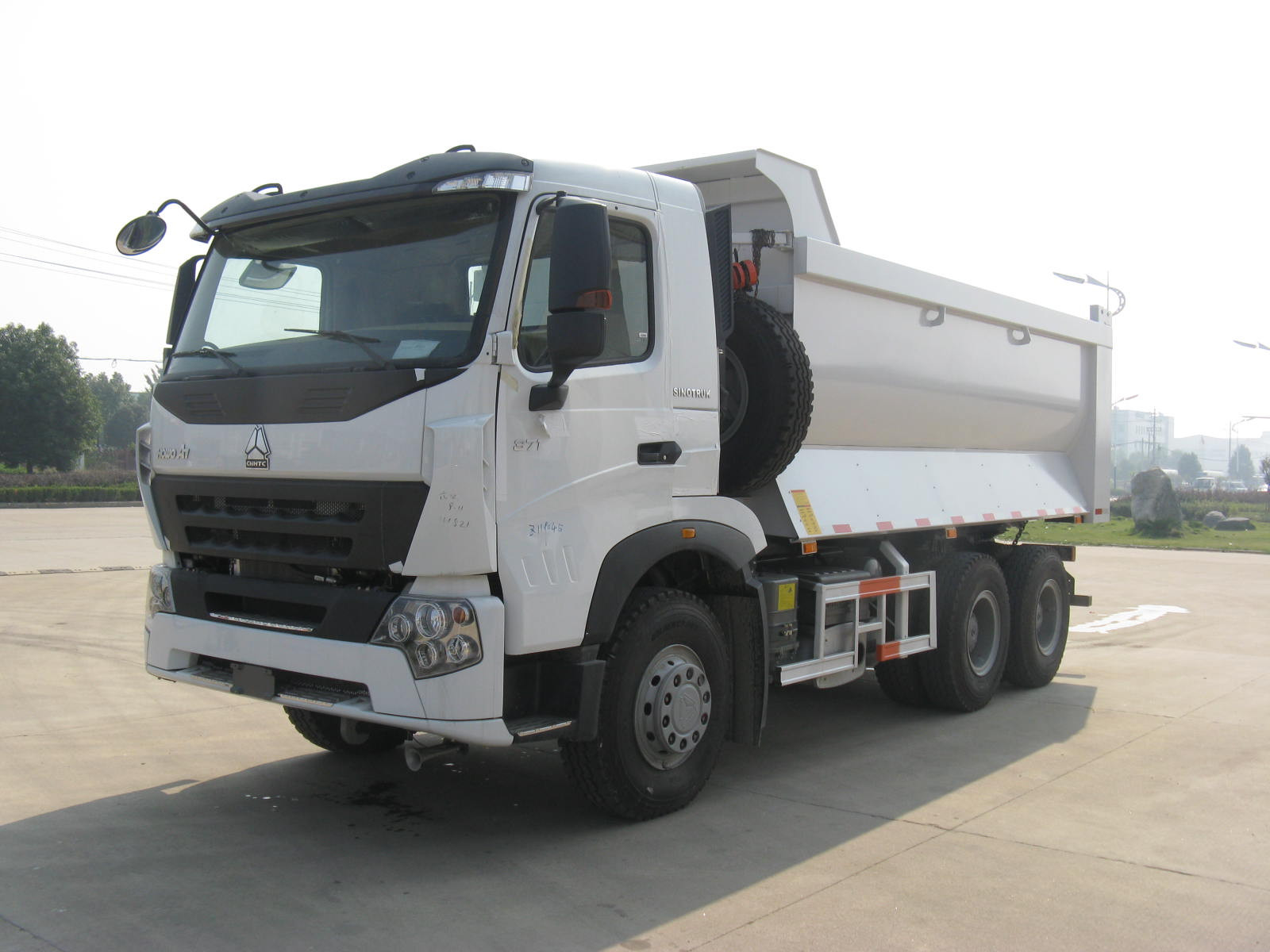

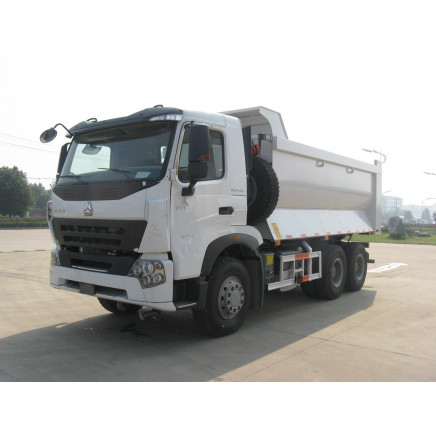

Sinotruk A7 6*4 Tipping Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 35000.0-45000.0/ Piece

Price:$35000.0 - $45000.0 / Piece

Trade Terms: FOB, CFR, CIF, DDP, CIP, CPT, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Oct 24, 2014 To Jan 24, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ

Transmission Type:Manual

Power:Diesel

Load Capacity:25t

Emission Standard:Euro 2

Drive Wheel:4WD

Engine Capacity:6-8L

Seats:?5

Horsepower:351-450hp

Tire Type:Solid Tire

Tire Certification:ISO

Tire Design:Tubeless

Dumping Type:Front Lifting Style

Condition:New

Truck Type:Dump Truck

Type:Dump Truck

Export Markets:Global

Additional Info.

Trademark:HOWO

Packing:Nude

Standard:6*4

Origin:China

Production Capacity:2000

Product Description

Cabin Driving type 6x4 LHD/RHD

HW70 standard cab, with A/C, 70° Hydraulically tillable to the front as attached photo for ref.

Vehicle Main DimensionsOverall dimensions (L x W x H)mm7934× 2496× 3370
Wheel base (mm)3225+1350
Wheel track (front/rear) (mm)2020/1800
Approach/Departure angle(° )19/24
Weight in KGSTare Weight12460
Payload28000
Front axles loading capacity1x9000
Rear axles loading capacity2x16000
Max. Driving speed(km/h)85
Engine BrandSinotruk
ModelWD615.87
Type4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP)290 @2200 rpm
Emission standardEuro II
GearboxHW15710, 10 Forwards gear & 1 reverse gear
ClutchReinforced diaphragm clutch, diameter 430mm
Steering GearZF 8098, power steering, hydraulic steering with power assistance
Fuel tank (L)400
Tire 12R22.5 tubeless tyre, Triangle Brand
Brakes Service brake: Dual circuit compressed air brake
Parking brake: (emergency brake): Spring energy, compressed air operating on rear wheels
Auxiliary brake: Engine exhaust valve brake
Bin size5400*2300*1500 mm, side is 6 mm, front and bottom 8 mm
Hydraulic systemmiddle positioned

336hp to 375hp 6*4 Sinotruk Howo 10 Wheel Dump Truck

10 wheel Dump truck is mainly used for engineering projects, for transport: Dust, sand, rock, etc, also used in mining and coal site. This truck could make to hermetic type. This type of truck adopt front single lift or twin cylinder lift, stable rise, easy to operate, rear dumping type.

Production notes:

1 Sinotruk Howo Chassis, engine capacity from 336hp to 375hp;
2 loading capacity 18-20m3
3 Competitive price
4 Reliable quality

Main Technical Parameter
Product Model	Sinotruk Howo 10 Wheel Dump Truck	Product Brand	CLW
Wheelbase(mm)	3825+1350	Overall Dimension(LWH)(mm)	8545 ×2496×3170
Front/ rear suspension(mm)	1500/1870	Front/Rear tread(mm)	2022,2041,1830/1830
Gross weight (kg)	25000	Axle number	3
Payload(kg)	12420	Compartment Dimension(LWH)	5800 ×2300×1090
Curb weight(kg)	12450	Front/Rear axle load(Kg)	7000/18000(co-load two shaft)
Approach/ departure angle ( ° )	19/23	Max Speed (km/h)	75
Cab capacity	3	Cab Type	Howo H76 Flat proof
Chassis Technical Parameter
Chassis Model:	ZZ3257N3847C	Chassis manufacturer:	China Heavy Duty Auto Group Ltd
Gear Box	HW15710 (10 shift)	Transmission type:	Manual
Steering Type	LHD	Traction Type:	6*4
Frame type	Strengthen, side rails,	Rear axle	AC16
Brake System	Air brake
Leaf Spring number:	10/12	Tire size/type	12.00-20 18PR ( 12 tires with 1 spare tire)
Engine specification
Engine Model:	WD615.95	Engine Brand	China Heavy Duty Automobile Co. ltd
Fuel type:	Diesel	Displacement(ml)	9726
Emission stand	Euro 3	Power(kw)	247(336hp)
Warranty	One year from the date of supply
Superstructure parameter	1. Strengthen T lifting, 24V Electric system, electrically hydraulic operation control
	2. load Capacity:18m 3 -20m 3
	3. Tipping type: Front tipping type ,rear dump type
	4. Material: floor 8mm side & back 6mm thickness carbon steel
