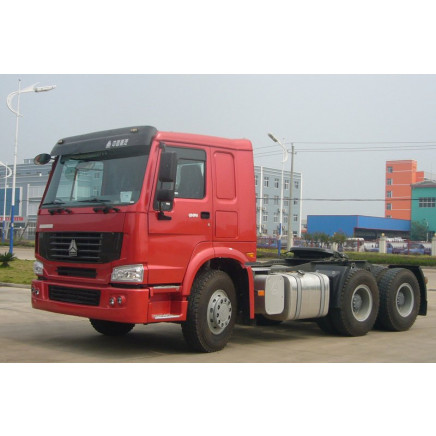

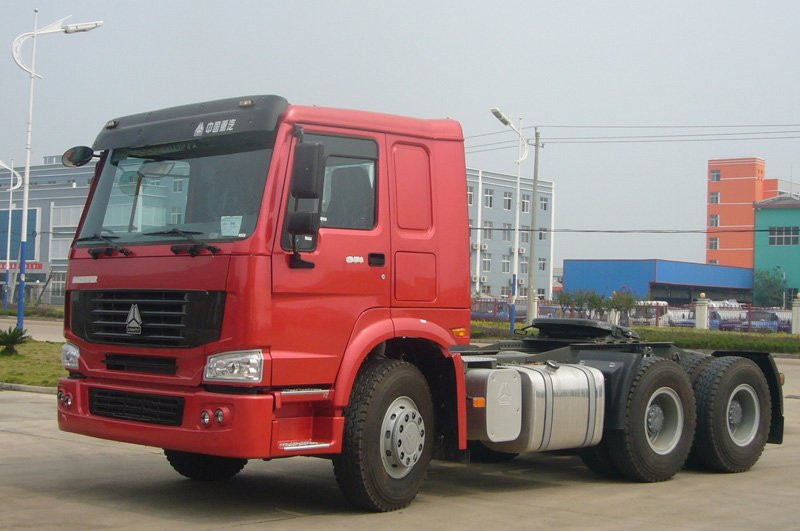

Sinotruk 6X4 HOWO Tractor Truck Prime Mover

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 37000.0-39000.0/ Piece

Price:$37000.0 - $39000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Oct 23, 2014 To Jan 23, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ

Type:Tractor Truck

Usage:Transport

Certification:ISO

Drive Wheel:4WD

Emission Standard:Euro II

Fuel:Gas / Diesel

Service Life:6-10 Years

Size:Large

Color:Blue

Condition:New

Horse Power(HP):420 @2000 rpm

Front axles loading capacity:1x7000

Rear axles loading capacity:ST16, 2x16000

Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:HOWO

Packing:Nude

Standard:6*4

Origin:China

Production Capacity:200units/Month

Product Description

6X4 HOWO tractor truck (420 HP)

Cabin Driving type 6x4 RHD
HW 76 Standard cab, with one bed, 70° Hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions Overall dimensions (L x W x H)mm 6800× 2496× 2958
Wheel base (mm) 3225+1350
Wheel track (front/rear) (mm)2022/1830
Approach/Departure angle(° ) 16/70
Weight in KGS Tare Weight 9230
Hauling Capacity 50000
Front axles loading capacity 1x7000
Rear axles loading capacity ST16, 2x16000
Max. Driving speed(km/h)92
Engine Brand Sinotruk
Model D12.42
Type 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 420 @2000 rpm
Max Torque ( N. M) 1820@1100-1500 rpm
Emission standard Euro II
Gearbox HW19710, 10-speed forward and 2 reverse gear
Clutch Reinforced diaphragm clutch, diameter 430mm
Steering Gear German ZF 8098
Fuel tank (L) 400
Tire 315/80R22.5 tubeless tyre with one spare
Brakes Service brake: Dual circuit compressed air brake
Parking brake: (emergency brake): Spring energy, compressed air operating on rear wheels
Auxiliary brake: Engine exhaust valve brake

Brand Name	HOWO	Condition	New
Drive Wheel	6×4 Tractor	Model Number	A7 ZZ4257V3247N1B
Transmission Type	HW20716AL( SINOTRUK 16 speeds Automatic Smart Shift transmission with Aluminum Alloy Case)
Engine	CNHTC brand D12, 420HP
Rear axle	HW1697 whole steel die casting axle housing, two speed reducers heavy duty driving axle
Steering	ZF8098 hydraulic steering with power assistance
Wheelbase	3200mm
Rated payload	16T
Option	4.22
Rim/Tires	315/80R22.5 Tubeless tires
Color	red, green, white, black, yellow, etc.
Saddle	50#
Front axle	HF7 with disc brake
Displacement	11.596L
Towing weight	40T
Fuel Tank	400L
Number of tires	10+1(spare tire)
Cab	A7-G high floor, two berths with air conditioner
Ratio	3.73
