Sinotruk 6X4 336HP HOWO Truck with Diesel Power

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

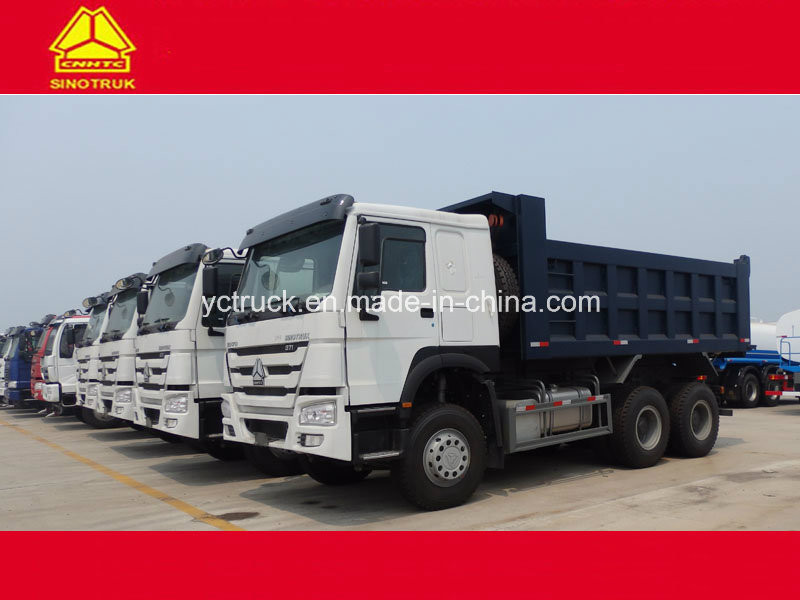

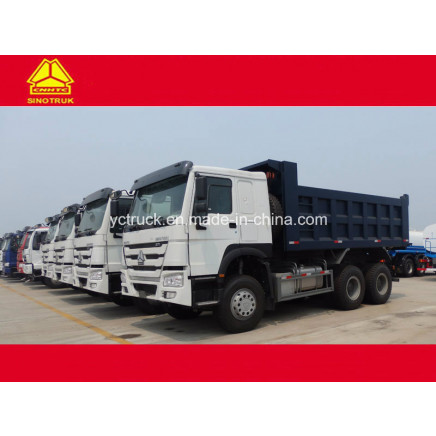

Sinotruk 6X4 336HP HOWO Truck with Diesel Power

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 10000.0-60000.0/ Piece

Price:$10000.0 - $60000.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, Money Gram, Western Union

Price Valid Time:From Jan 19, 2015 To Nov 23, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ3257N3447A

Transmission Type:Manual

Power:Diesel

Load Capacity:41-50t

Emission Standard:Euro 3

Drive Wheel:6×4

Engine Capacity:?8L

Seats:?5

Horsepower:251-350hp

Tire Type:Inner Tube

Tire Certification:ECE, GCC, ISO, DOT

Tire Design:Radial

Dumping Type:Front Lifting Style

Condition:New

Name:Sinotruk 6X4 336HP HOWO Truck

Truck Type:Dump Truck

Colour:Optional(White, Red,Yellow, Green)

Rated Loading Capacity:41-50 T

Driving Type:6X4

Maximum Output:336 HP

Gross Vehicle Weight:25000 Kg

Overall Length:8300 Mm

Overall Width:2500 Mm

Overall Height:3400 Mm

Export Markets:Global

Additional Info.

Trademark:SINOTRUK HOWO

Packing:Nude Packing

Standard:SGS

Origin:China

HS Code:8704230090

Production Capacity:50000 Units/Year

Product Description

Sinotruk 6X4 336HP HOWO Truck with Diesel Power

Product Description:
Driving Type: 6X4
Rated Loading Capacity: 41-50T
Engine brand: SINOTRUK BRAND
Engine model: WD615.69 371 HP Euro II
Engine type: 6-cylinder in line, 4-stroke, water-cooled, turbocharged, air-to-air intercooled, direct injection
Displacement: 9.726 liters
Max. Output: 336 hp (247 Kw) at 2200 rpm
Bore/Stroke(mm): 126/130
Transmission: HW15710, 10 speeds forward and two reverse (Manual)
Front Axle: Steering with double T-cross section beam
Rear Axle: Pressed axle housing, central single reduction

Steering: ZF power steering, hydraulic steering with power assistance
Tires: 12.00R20 (with one spare tire)
Wheelbase: 3420mm+1350mm
Cab: Volve cab (two seats, one bed), all steal forward control, air conditioner.

The configurations can be adjustable according to your working condition, loading capacity and special requirements.

Features:
(1) APPLICATION
The Dump Trucks are widely used in transportation and delivery of coal, mineral, iron powder, steel slag, lime ash, stone, sand, wood, cement and other bulk cargos and so on.
(2) STRUCTURE
The Dump Truck is equipped with stable and modern structure and owns many practical functions. Our advanced production technology and the best test equipments can make the Dump Truck presents a reliable, stable and modern structure.
(3) TYPES
We can offer all kinds of HOWO Dump Trucks with the driving types of 4x2, 6x4, 8 x 4, 4 x 4, 6 x6 and 8 x 8 and so on.
(4) CONFIGURATION
SINOTRUK Dump Trucks have been made with the most advanced materials and configuration. Our Trucks can meet different needs of customers.
(5) ADVANTAGE 1
The Dump Truck is equipped with the drive modes of LHD and RHD. Perfect Diesel Engine, high-quality Axles, perfect Suspension Systems, reliable Tires and large load capacity ensure the good performance of SINOTRUK HOWO Dump Truck.
(6) ADVANTAGE 2
Superior materials and hi-tech completely help our HOWO TRUCK present a high-grade quality and longer serving life. We can offer competitive price & quality assured & fuel-efficient and longer serving life.
(7)FAST DELIVERY
We can produce the trucks as soon as you finish your order. Our large supply capacity of 50000 UNITS per year can assure to meet your requirements. Our all trucks will be available at any time.
(9) PERFECT AFTER-SALE SERVICE.
Any question will be solved at the first time. We also have technical support to solve your questions before, during your using of our Trucks. Our 24-hour hotline is available at any time.

Brief introduction of our FACTORY:
Here is SHANGHAI YUECHENG AUTOMOBILE SALES CO., LIMITED, exporting DUMP TRUCK, TRACTOR TRUCK, CARGO TRUCK, MIXER TRUCK, WATER TANK TRUCK and FUEL TANK TRUCK with good quality and low price in China. We can provide all kinds of trucks that you are in need with the most professional production, the best quality and the most reasonable price. Majored in dump truck, tractor truck, cargo truck, mixer truck, water tank truck and fuel tank truck, our products have been exported to more than 30 countries including Mongolia, Congo, Kenya, Tanzania, Philippine, Nigeria, Russia, Kazakhstan, Ethiopia, Brazil and Korea and so on.

Service assurance:

1. SGS&ISO Certifications, one year Guarantee, free technical assistance.
2. Optional driving types & colors.
3. Optional dimension and configuration. We can also provide customized solution for you.
4. Both small order& large order are OK.
5. Reply to you within 10 hours after receiving your inquiry. After assuring your needed configuration and the dealing issues, we will arrange the production at the first time. We can assure to offer you the trucks you needed with the highest quality within the shortest time.
6. Convenient payment terms and fast shipment.
7. Perfect after-sale service.

Engine	Made: SINOTRUK
	Diesel 4-stroke direct injection diesel engine
	Engine model: WD615.69, Euro II emission standard
	6-cylinder in-line with water cooling, turbo-charging and intercooling
	Maximum output: 336 hp (247 Kw) at 2200 rpm
	Number of cylinder: 6
	Displacement: 9.726 l
	Bore: 126 mm
	Stroke: 130 mm
	Compression ratio: 29.8 hp/l
	Specific fuel consumption: 195 g/kWh
	Engine oil filling quantity: 23 l
	Cooling system filling quantity (long-term filling): 40 l
	Thermostat with 71 degree opening begin
	Single cylinder air compressor
	Rigid fan
Transmission	HW15710, 10 speeds forward and 2 reverse
Transmission	Fuller technology
Propeller Shaft	Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle	Steering with double T-cross section beam
Rear Axle	Pressed axle housing, central single reduction


Chassis	Frame: U-profile parallel ladder frame with section of 350x80x10 mm and reinforced subframe, all cold riveted cross members
	Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
	Rear suspension: 12 leaf semi-elliptic springs with bogie springs
	Aluminium fuel tank: 300 L capacity with locking fuel cap, fitted to the off side of the chassis

Steering	ZF power steering, modol ZF8098, hydraulic steering with power assitance
Steering
Brakes	Service brake: dual circuit compressed air brake
	Parking brake(emergency brake), spring energy, compressed air operating on rear wheels
	Auxiliary brake: engine exhaust brake
	ABS
Tyre	Tyre: 12.00R20
Driver' s Cab	Volve Cab, (2 seats and 1 bed)all steal forward control, 2-arm windscreen wiper system with three speed, laminated windscreen with
	casted-in ratio aerial, hydraulically damped adjustable driver' s seat, with heating and ventilating system, exterior sun visor, safety belts,
	adjustable steering wheel, air horn, air conditioner, with transverse stabilizer

Electrics	Operating voltage: 24 V, negative grounded
	Starter: 24 V, 5.4 Kw
	Alternator: 3-phase, 28 V, 1500 W
	Batteries: 2 x 12 V, 165 Ah
	Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Instrument Panel	Active check central controllor with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators
Instrument Panel	of compressed air pressure, coolant temperature, engine oil pressure and battery charging
Dimensions mm	Wheel base		3420+1350
	Front wheel track		1830
	Rear wheel track		1830
	Front overhang		1500
	Rear overhang		1670
	Overall length		8300
	Overall width		2500
	Overall height		3400
	Dimension of the rear dump body	16m3	520023001400
Weight kg	Gross vehicle weight		25000
	Rated loading capacity		32000
	Front axle loading capacity		9000
	Rear axle loading capacity		2*16000
Performance	Maximum driving speed (km/h)		75
	Maximum gradeability (%)		40
	Minimum ground clearance (mm)		314
	Minimum turning circle (m)		20
	Fuel consumption (l/100 km)		28
