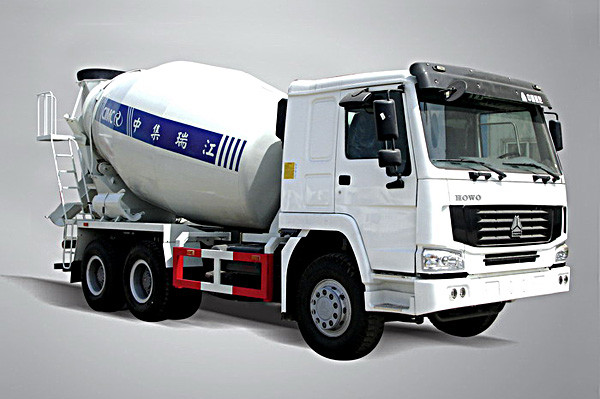

Sinotruck HOWO Concrete Mixer 6x4 336HP 8-10cbm

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Unit)	Unit Price
1.0	US $ 45000/

Price:US $45000.0 / Unit

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Aug 12, 2014 To Oct 10, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ1257N3847C

Certification:ISO9000, CCC

Transmission Type:Manual

Engine Type:4 Stroke

Payload:20T

Fuel:Diesel

Condition:New

Color:Yellow, Red, White, Ect.

Front Axle:9 Ton

Rear Axle:16t Strengthened Double Reduction Driving Axle

Engine:Wd615.95e 336HP

Cab:Hw70cab, Air Conditioner

Steering:Zf8098

Export Markets:Global

Additional Info.

Trademark:Sinotruck

Packing:Nude Packing

Standard:SGS, ISO, CCC, BV

Origin:China

Production Capacity:300 Units Per Month

Product Description

1. After-sale Service
Any small question will be solved at the most prompt time. We also offer relative technical support. Our spare parts will be available at any time after your order.
2. Supply Capacity
We manufacture the truck as soon as your order comes. And for the stock, we can delivery it immediately.

Drive type		6x4
Dimensions	Max length(mm)	9250,8800
	Max width (mm)	2500
	Max height (mm)	3 930
	Overhang(front/rear) (mm)	1500/2575
	Wheel base (mm)	3600+1400
	Track width (mm)	2041 / 18 3 0
Performance	Max speed(km/h)	90
	Min. Turning circle(m)	21
	Min. Ground clearance(mm)	279
	Approach/departure angle(º)	16 / 19
	Max.Gradability (%)	30
Engine	Brand	SINOTRUK ( STEYR TECHNOLOGY )
	Model	WD615. 95E 336hp
	Power (kw/HP)	2 47 / 336
	Max torque(N.m)/rpm	1 350 /2200
	Displacement(L)	9.726
	Emission standards	Euro II /EURIII
Transmission	Brand	SINOTRUK
	Model	HW1 5 710
	Control type	Manual
	Gear shift	10 Forward& 2 Reverse
Clutch	Type	Single plate,diaphragm spring
	Diameter (mm)	? 430 Mechanical type,hydraulic and pneumatic operation
Steering	Brand	ZF8098
	Type	Integral circuiting ball power steering
Axles	Front axle	HF9 9T front axle , drum brake
	Rear axle	HC16 16T strengthened double reduction driving axle
	Ratio	1:4.42 Option: 1:4.8,1:5.73
Tyre	Type	12.00-20 bias-tyre
	Option	12.00R20
Fuel tank	Tank capacity(l)	350
	Material	Iron
Cabin	HW7 0 cab, A/C , without sleeper
Weight	Kerb mass(kg)		1 4000
	GVW(kg)		25000
Mixer body	Capability(CBM)		8 -10
	Hy d raulic pump and mot o r		T OP (Italy) Brand
	Option		ETON (America) Brand
	Decelerator		T OP (Italy) Brand
	Discharged remain ratio		<0.5%
