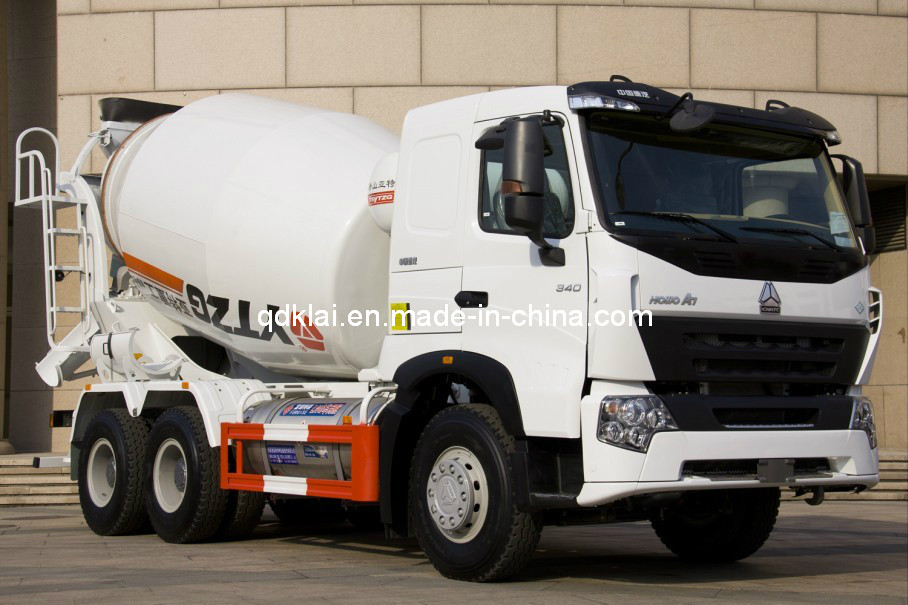

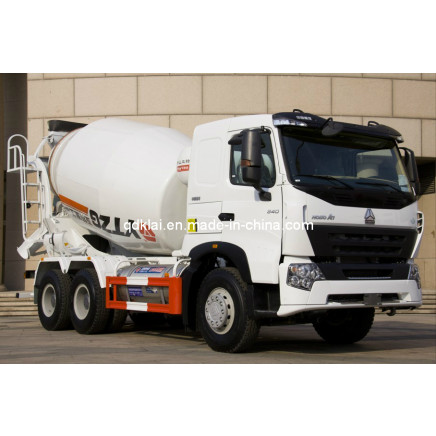

Sinotruck HOWO A7 Concrete Mixer Truck 10cbm Capacity

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF, DAP

Payment Terms:L/C, T/T

Trademark:SINOTRUK HOWO

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:HOWO A7 MIXER TRUCK

Transmission Type:Manual

Condition:New

Power:Diesel

Emission Standard:Euro 2

Truck Type:Concrete Mixer Truck

Tire Design:Radial

Seats:?5

Tire Certification:ISO

Tire Type:Inner Tube

Drive Wheel:4WD

Load Capacity:30T

Type:Mixer Truck

Export Markets:Global

Additional Info.

Trademark:SINOTRUK HOWO

Packing:Nude

Standard:ISO, CCC

Origin:Jinan, China

HS Code:8704

Production Capacity:1000 Units/Month

Product Description

We are the first level agency for SINOTRUK whole truck series, we can supply HOWO trucks and HOWO A7 truck series, include tractor trucks, dump trucks and concrete mixer trucks.
The HOWO A7 series trucks are developed on the base of HOWO trucks, with higher technology and higher equipment, EUROIII emission standard.

Features:
1. Developed technology on the base of HOWO
2. More comfortable cab
3. WABCO: ABS+ASR+EBL+TPM.
4. Manufactured by CNHTC

10m3 SINOTRUK HOWO A7 6x4 Concrete Mixer Truck

Drive type: 6x4
Cab: A7-W flat roof cab with one sleeper bed, with A/C
More comfortable Cab with Wabco ABS+ASR+EBL+TPM

Engine: D10.38
Type: 6-cylinder in-line with water cooling, supercharging & intercooling
Displacement: 9.726L
Engine output: 380hp /2000 rpm
Max. Torque: 1590 NM /1200-1500rpm

Transmission (gear box): HW19710, 10 speed transmission
Clutch: D430 Diaphragm type
Steering: ZF8098
Front axle: HF9 disc type, 9tons
Rear axle: HC16 double reduction 16 tons
Ratio=5.73
Spring suspension: 9/12, 10/12
Fuel tank: 300L
Tire: 12.00R20, 10+1spare

Max. Speed (km/h): 78
Kerb. Mass: 13770kg
Total mass: 25000kg
Wheel base (mm): 3975+1350
Front overhang (mm): 1540
Rear overhang (mm): 2620
Approach angle: 20 degree
Departure angle: 31 degree
Dimension: 9800x2490x3885

Body(mixer drum):
Capacity: 10CBM
Rotating speed: 0-18 r/min
Water Tank: 400L
Discharged remain ratio: <0.2%
Hydraulic pump and motor: EATON089 (America)
Decelerator: P68 (Italy)
