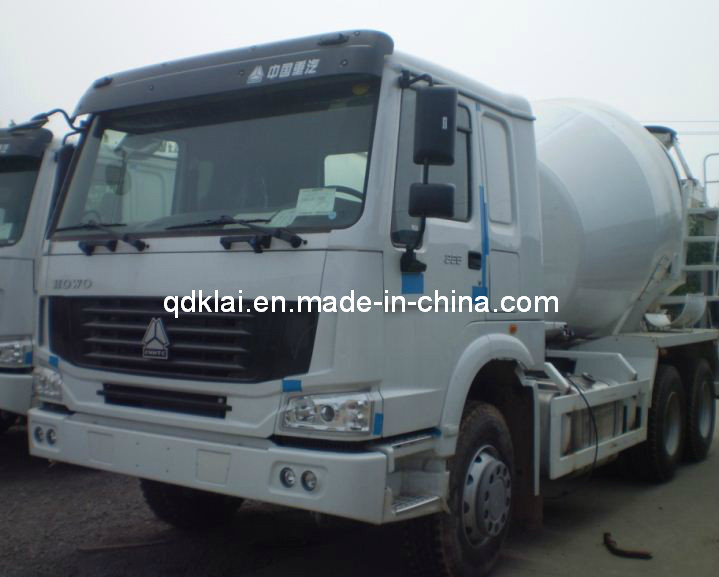

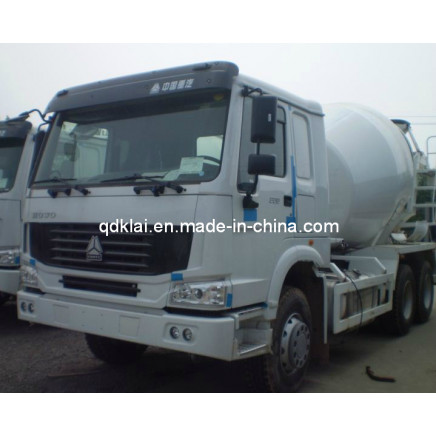

Sinotruck HOWO 6X4 Concrete Mixer Truck 9cbm Capacity

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF, DAP

Payment Terms:L/C, T/T

Trademark:SINOTRUK HOWO

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:HOWO MIXER TRUCK

Transmission Type:Manual

Condition:New

Power:Diesel

Emission Standard:Euro 2

Truck Type:Concrete Mixer Truck

Tire Design:Radial

Seats:?5

Tire Certification:ISO

Tire Type:Inner Tube

Drive Wheel:4WD

Load Capacity:25T

Type:Mixer Truck

Export Markets:Global

Additional Info.

Trademark:SINOTRUK HOWO

Packing:Nude

Origin:Jinan, China

Production Capacity:1000 Units/Month

Product Description

We are the first level agency for SINOTRUK whole truck series, we can supply HOWO tractor trucks, HOWO dump trucks, HOWO concrete mixer trucks and special trucks, we can supply trucks for our clients with good quality and competitive price, because we get directly support from the CNHTC factory.

SINOTRUK HOWO 6x4 concrete mixer truck 9m3
Drive type: 6x4
Cab: HW76 flat roof cab with one sleeper bed, with A/C

Engine: Weichai brand WD615.69
Type: 6-cylinder in-line with water cooling, supercharging & intercooling
Displacement: 9.726L
Engine output: 336hp /2200 rpm
Max. Torque: 1350 NM /1300-1600rpm

Transmission (gear box): HW15710, 10 speed transmission
Clutch: D430 Diaphragm type
Steering: ZF8098
Front axle: HF9 drum type, 9ton
Rear axle: HC16 double reduction 16 tons
Ratio=5.73
Spring suspension: 9/12, 10/12
Fuel tank: 300L
Tire: 12.00R20, 10+1spare

Max. Speed (km/h): 75
Max. Gradeability(%): 50
Kerb. Mass: 13220kg
Total mass: 25000kg
Wheel base (mm): 3825+1350
Front overhang (mm): 1525
Rear overhang (mm): 2365
Approach angle: 16 degree
Departure angle: 24 degree
Dimension: 9040x2490x3835

Body(mixer drum):
Capacity: 9CBM
Rotating speed: 0-18 r/min
Water Tank: 400L
Discharged remain ratio: <0.2%
Hyraulic pump and moter: EATON089 (America)
Decelerator: P68 (Italy)
