Sinotruck HOWO 6X4 Concrete Mixer Truck 8m3 Capacity

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF, DAP, EXW

Payment Terms:L/C, T/T

Trademark:Sinotruck

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ1257N3841W

Transmission Type:Manual

Condition:New

Mixer Tank Drum Capacity:8,9,10,12cbm

Hyraulic Pump and Motor:Eaton089 (America)

Decelerator:P68 (Italy)

Rotating Speed:0-18 R/Min

Discharged Remain Ratio:<0.2%

Water Tank:400L

Power:Diesel

Emission Standard:Euro 2

Truck Type:Cargo Truck

Tire Design:Radial

Export Markets:Global

Additional Info.

Trademark:Sinotruck

Packing:Nude

Standard:ISO

Origin:Shandong, Chia

HS Code:8705400000

Production Capacity:3000units/Year

Product Description

We have the distributor privilege for SINOTRUK whole truck series, we can supply HOWO tractor trucks, HOWO dump trucks, HOWO concrete mixer trucks, HOWO tank trucks and other special trucks, we supply trucks with good quality and competitive price, because we get directly support from the CNHTC factory.
We supply HOWO and HOWO A7 6x4 and 8x4 concrete mixer trucks, with mixer tank capacity 8cbm, 9cbm, 10cbm, 12cbm, with the engine power 290hp, 336hp and 371hp.

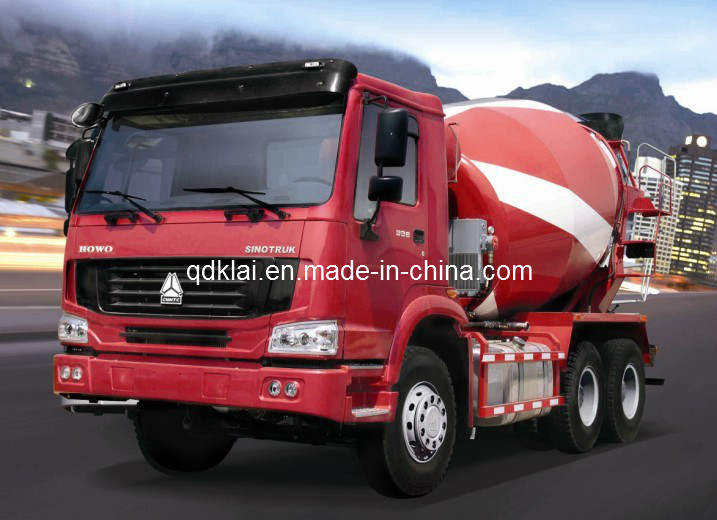

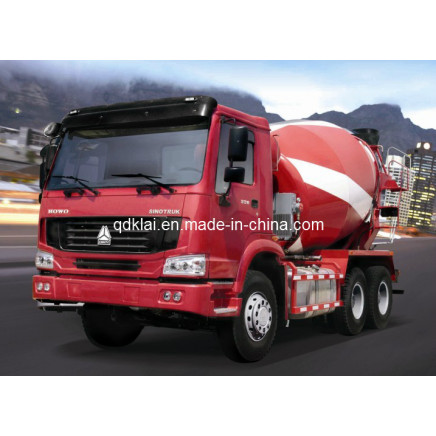

8m3 SINOTRUK HOWO concrete mixer truck
Model: ZZ1257N3841W, EUROII
Drive type: 6x4
Cab: HW76 flat roof cab with one sleeper bed, with A/C

Engine: Weichai brand WD615.69
Type: 6-cylinder in-line with water cooling, supercharging & intercooling
Displacement: 9.726L
Engine output: 336hp /2200 rpm
Max. Torque: 1350 NM /1300-1600rpm

Transmission (gear box): HW15710, 10 speed transmission
Clutch: D430 Diaphragm type
Steering: ZF8098
Front axle: HF9 drum type, 9ton
Rear axle: HC16 double reduction 16 tons
Ratio=5.73
Spring suspension: 9/12, 10/12
Fuel tank: 300L
Tire: 12.00R20, 10+1spare

Max. Speed (km/h): 75
Max. Gradeability(%): 50
Kerb. Mass: 13220kg
Total mass: 25000kg
Wheel base (mm): 3825+1350
Front overhang (mm): 1525
Rear overhang (mm): 2365
Approach angle: 16 degree
Departure angle: 24 degree
Dimension: 9040x2490x3835

Body(mixer drum):
Capacity: 8CBM
Rotating speed: 0-18 r/min
Water Tank: 400L
Discharged remain ratio: <0.2%
Hyraulic pump and moter: EATON089 (America)
Decelerator: P68 (Italy)
