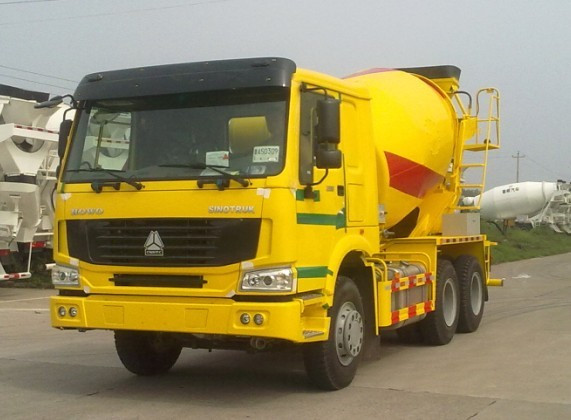

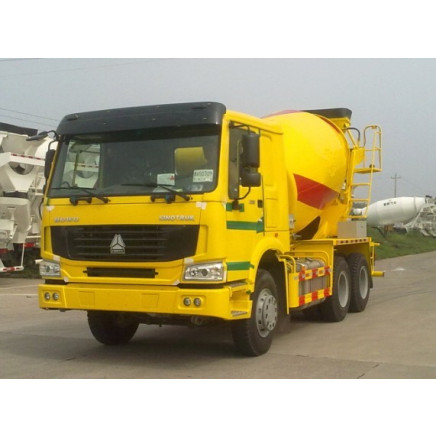

SINOTRUCK HOWO 6x4 371hp mixer truck with 8CBM capacity

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF

Payment Terms:L/C, T/T

Trademark:SINOTRUK HOWO

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ1257N3247C

Certification:ISO9000, CCC

Transmission Type:Manual

Engine Type:4 Stroke

Payload:30T

Fuel:Diesel

Condition:New

Curb Weight (Kg):8650

Gear Box:Hw15710

Wheelbase (Mm):3225+1350

Capacity:8cbm

Tyre:12.00-20

Export Markets:Global

Additional Info.

Trademark:SINOTRUK HOWO

Packing:Nude Packing, Waxing by RO-RO Ship or Bulk Ship.

Standard:CCC, ISO9001

Origin:Shandong, China.

HS Code:87054000

Production Capacity:3000 Units/ Month

Product Description

Model: ZZ1257N3247C 8m3 concrete mixer truck
Whole Vehicle
Performance &
Parameters Chassis HOWO
Curb Weight (Kg) 8650
Total Vehicle Weight (Kg) 25000
Outline Dimension(L*B*H) (mm) 7350*2496*2958
Wheelbase (mm) 3225+1350
Front Overhang (mm) 1500
Rear Overhang (mm) 1257
Vehicle Configuration Clutch Dry Single Disc Clutch (? 430)
Gear Box HW15710
Driving Type 6*4
Steering Mechanism ZF8098
Service Brake Dual-circuit Air Brake
Parking Braking Spring-powered Air-cut-off Brake
Auxiliary Brake Engine Exhaust Brake

Tyre 12.00-20

Engine Parameters Model WD615.47
Type In-line 6-cylinder, Water-cooled, Supercharged,
Inter-cooled, Electric (Direct)
Injection Diesel Engine
Emission Standard Euro II
Displacement 9.726(L)
Max Power (KW) 273KW 371 HP(2200rpm)
Max Torque 1500N. M
Max torque speed 1100-1600r/min
Max fuel consumption ? 193g/kW. H
Bore/ stroke 130x126mm
Drum Parameters Geometric Volume of Mixing Drum (m3) 13.7
Max Mixing Cubage (m3) 8
Gradient of the drum (m3) 14
Filling rate 58%
Rest rate < =1%
Rotational speed of the drum 0~14(r/min)
Slump 5cm About 30

Slump 8-12cm About 20
HYD. Driving System Pump ARK PV 070
Max. Displacement 420bar/89cc/rev
Hydraulic Motor ARK PV 070
Max. Displacement 420bar/89cc/rev
Decelerator model TOP P68
Decelerator Ratio 120.3i
Water Supply System Volume of water tank 440
Water Supply Mode Water Pump;
Pneumatic Pump
Validity time: 30days

Model : ZZ1257N3247C		8m3 concrete mixer truck
Whole Vehicle Performance & Parameters	Chassis	HOWO
	Curb Weight (Kg)	8650
	Total Vehicle Weight (Kg)	25000
	Outline Dimension(LBH) (mm)	735024962958
	Wheelbase (mm)	3225+1350
	Front Overhang (mm)	1500
	Rear Overhang (mm)	1257
Vehicle Configuration	Clutch	Dry Single Disc Clutch (? 430)
	Gear Box	HW15710
	Driving Type	6*4
	Steering Mechanism	ZF8098
	Service Brake	Dual-circuit Air Brake
	Parking Braking	Spring-powered Air-cut-off Brake
	Auxiliary Brake	Engine Exhaust Brake
	Tyre	12.00-20
Engine Parameters	Model	WD615.47
	Type	In-line 6-cylinder, Water-cooled, Supercharged, Inter-cooled, Electric (Direct) Injection Diesel Engine
	Emission Standard	Euro II
	Displacement	9.726(L)
	Max Power (KW)	273KW 371 HP(2200rpm)
	Max Torque	1500N. m
	Max torque speed	1100-1600r/min
	Max fuel consumption	? 193g/kW. h
	Bore/ stroke	130x126mm
Drum Parameters	Geometric Volume of Mixing Drum (m3)	13.7
	Max Mixing Cubage (m3)	8
	Gradient of the drum (m3)	14
	Filling rate	58%
	Rest rate	< =1%
	Rotational speed of the drum	0~14(r/min)
	Slump 5cm	About 30
	Slump 8-12cm	About 20
HYD. Driving System	Pump	ARK PV 070
	Max. Displacement	420bar/89cc/rev
	Hydraulic Motor	ARK PV 070
	Max. Displacement	420bar/89cc/rev
	Decelerator model	TOP P68
	Decelerator Ratio	120.3i
Water Supply System	Volume of water tank	440
Water Supply System	Water Supply Mode	Water Pump; Pneumatic Pump
Validity time:	30days
