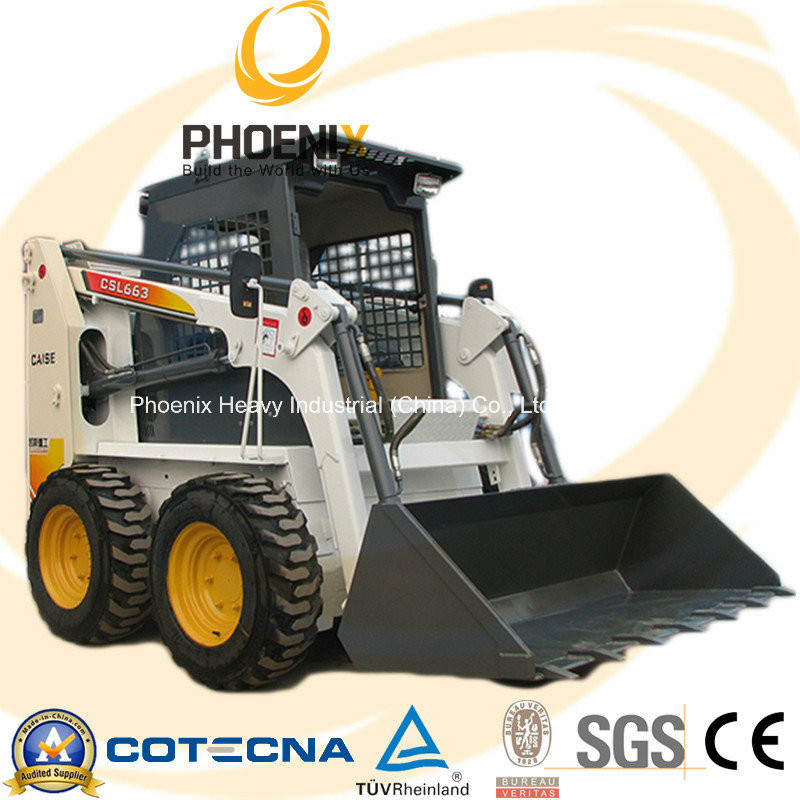

Similar Bobcat Mini Skid Steer Loader with CE (CSL663)

More Views

More than 10 available

Availability: In stock

Price:$10000.0 - $14000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 14000/ Piece
10.0	US $ 10000/ Piece

Trade Terms: FOB, CFR, EXW, CIF

Payment Terms: L/C, T/T, Western Union, Money Gram

Price Valid Time:From May 08, 2015 To Jun 16, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Login or Signup to View Links.

Description

Model NO.:CSL663

Type:Skid Steer Loader

Usage:Universal Type

Scraper Type:Pull Scraper

Transmission:Hydraulic Transmission

Walking Mode:Wheeled

Load and Unload Method:Front Discharge

Engine Power:<74kw

Certification:CE, ISO9001: 2000

Condition:New

Color:Yellow

Rated Load:660kg

Export Markets:Global

Trademark:PHOENIX

Packing:Nude Packing

Standard:CE

Origin:China Mainland

HS Code:84295100

Production Capacity:1000 Units/Month

CAISE CE Skid Steer Loader Highest Quality

Engine Power: 36.8kw
Rated load: 660kg
Operating Weight: 2600kg
Tipping Loader: 1700kg

Model	CSL663
Engine model	China XINCHAI engine B490BPG
Rated power	36.8kw
Rated speed	2650rpm
Rated loading	660kg
Operating mass	2600kg
Tipping load	1700kg
Bucket capacity	0.47m3
Max. gradeability	20%
Bucket break force	1500kg
Max. lift arm break force	13000kg
Travel speed	0-11.2km/h
Standard tire size	10.0/75-15.3
Overall length with standard bucket	3450mm
Bucket width	1680mm
Height to top of cab	2030mm
wheelbase	991mm
Tread width	1460mm
Overall operating height	3900mm
Height to hinge pin. Fully raised	2960mm
Dump height fully raised	2150mm
Reach,fully raised	750mm
Dump angle at max height	44'
Ground clearance	205mm
