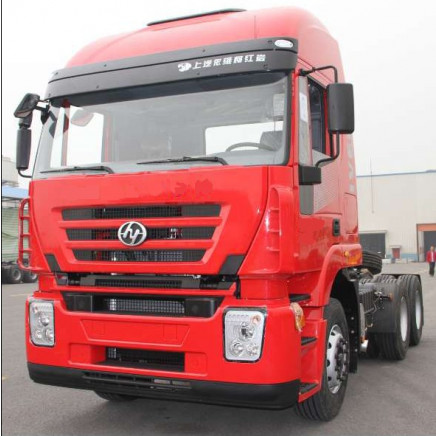

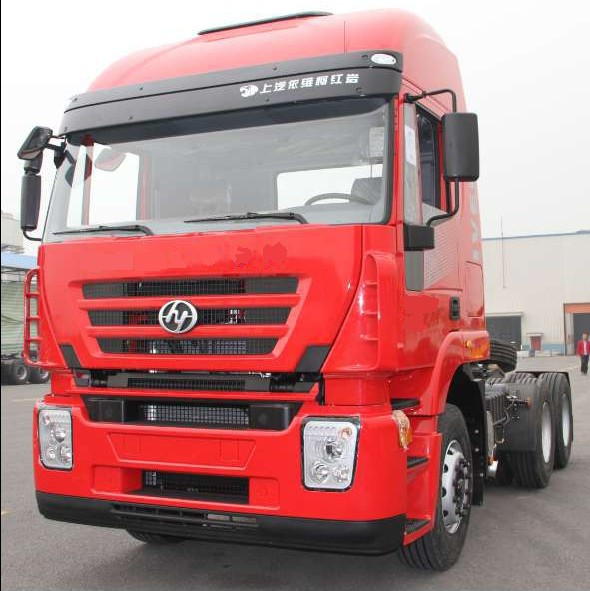

Sih High Roof Heavy Duty M100 Tractor Head

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 40000.0-48000.0/ Piece

Price:$40000.0 - $48000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From May 18, 2015 To Aug 17, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CQ4254HTVG324B

Transmission Type:Manual

Power:Diesel

Load Capacity:41-50t

Emission Standard:Euro 3

Drive Wheel:6ط4

Seats:?5

Horsepower:351-450hp

Engine Capacity:?8L

Tire Type:Inner Tube

Tire Certification:ECE, GCC, ISO, DOT

Tire Design:Radial

Condition:New

Truck Type:Tractor Truck

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:Saic-Iveco Hongyan

Packing:Nude Packing, Seaworthy

Standard:Euro 3/Euro 4 Emission Standard

Origin:Chongqing, China

HS Code:87012000

Production Capacity:50000 Units/Year

Product Description

Saic-Iveco Hongyan genlyon M100 Tractor Head Series:

1. Adopt Italian advanced techonology;
2. Flexible sales system, competitive price;
3. Excellent quality, best after-sale services and mature spare parts system.

If you are interested in this model, please feel free to send your inquiry, and we will always be glad to quote.

TECHNICAL SPECIFICATION
NO.	SPECIFICATION	PARAMETER	NOTE
1	Model	CQ4254HTVG324B
2	Cab	genlyon M100 Cab Left Hand Drive, High-Roof , with AC	Yellow/Red/White
3	Drive	6ط4
4	5th Wheel Rated Payload(kg)	16000
5	Kerb Weight(kg)	8270
6	Gross Vehicle Weight(kg)	25000
7	Hualage Weight(kg)	40000
8	Overall Dimension(mm)	6718ط2500ط3832(LWH)
9	5th Wheel Diameter(mm)	50 (2.5inch)
10	Max Speed(km/h)	120
11	Wheelbase(mm)	3225+1350
12	Engine	Cursor 9 380	Euro 3
13	Engine Output(HP)	380
14	Max. torque/speed (N.m/(r/min))	1500/1200-1600
15	Gearbox	12JSD180TA	Fuller technology
16	Steering gear	Z06 HenglongHydraulic Steering Gear
17	Drive Axle	H6A Single Reduction Driving Axle
18	Tyre	315/80R22.5, 12.00R20
19	Oil Tank	400L Aluminum-Magnesium Alloy
