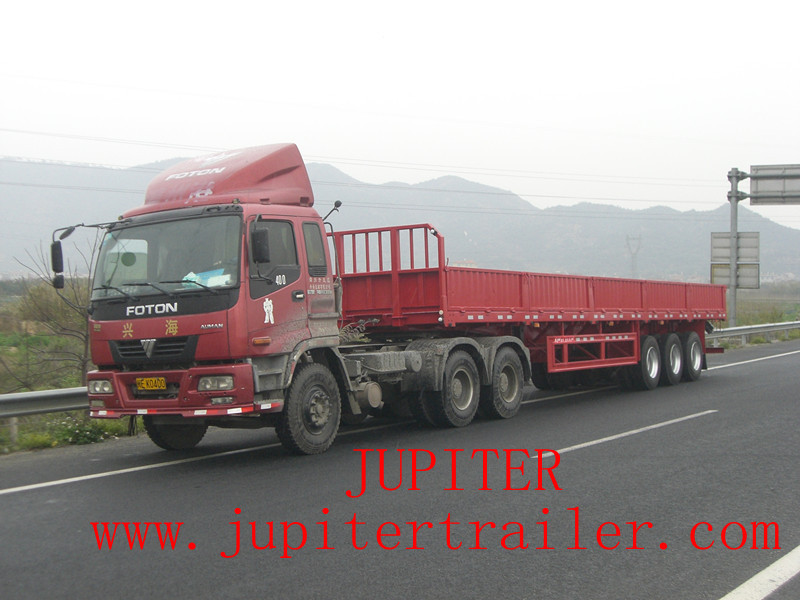

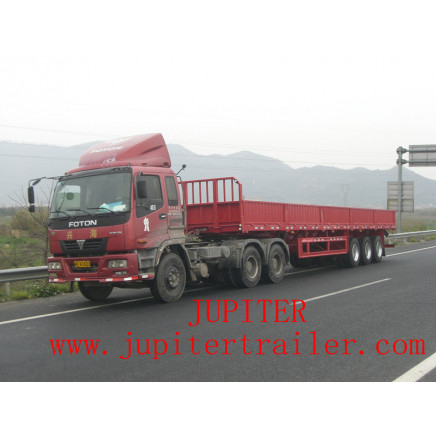

Side Wall Dropside Three Axle Semi Trailer 2 (FTW9391)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF

Payment Terms:L/C, T/T

Trademark:JUPITER

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:FTW9391

Type:Axle

Towing Pin Material:Carbon Steel

Impeller Type:Closed Type

Hook Type:Single

Universal Joint Type:Rigid Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:Mushroom Type

Towing Pin Diameter:50mm

Differential Gear Type:Gear Type

Independent Suspension Type:Cross Arm Type

Drop Side:Wal Trailer

Export Markets:Global

Additional Info.

Trademark:JUPITER

Packing:Nude, Coating with Wax

Standard:CCC

Origin:China

Production Capacity:90 Pieces/Month

Product Description

This side wall semi trailer also called sidewall trailer, it can be used for long distance transportation of heavy-duty or bulk goods. Its wide applicability has made it the best choice for long-distance cargo transport.

The main components of this side wall semi trailer are chassis, axles, tyres, suspension system, steel rims, and electrical system.

We can offer to you triaxial and biaxial sidewall trailers for you.

Features of Side Wall Semi Trailer:

1. Its whole vehicle body is made of high-quality steel, accompanied with advanced technology and strict production process. And the whole trailer features rational structure, reliable performance, easy operation, and beautiful appearance.

2. The vehicle frame is designed with the beam-passing structure, and its longitudinal beams are straight or goose-neck. The web is welded by manganese plates with the height varying from 400mm to 550mm. Its longitudinal beams employ automatic submerged arc welding technology, and its vehicle frame has undergone shot blasting treatment.

3. The suspension structure is made up of tandem steel springs and suspension base in rational mode, thus ensuring a high rigidity and high strength to better support load as well as to reduce the impact force.

4. This side wall semi trailer enjoys a wide applicability, a rational structure, high rigidity and high strength.

Operation of Side Wall Semi Trailer:

1. Enough attention should be given to the temperature of axles and wheel hubs, and users should better fasten these fasteners like leaf springs and wheels about per 40km. After three times of fastening, this side wall semi trailer can be put into normal use.

2. Whether the brakes become hot or emit abnormal smell also need your much attention. Additionally, excursion in the running gears of the trailer is also an important thing to get your attention. If there is anything abnormal, you should stop your trailer to examine and repair as soon as possible.

3. Regular examination of tyres, brakes, axles, and electrical system.

4. This sidewall trailer should adopt container transportation, bulk goods, and RORO.

Electrical system

24V system with standard 7 pole plug.

Rear electrical lighting, brake lights, indicators, fog lights and reversing light.

Painting

Sand blasting before painting; One coats of primer, anti corrosion; Two coat of finish painting; Color advised by customer

Accessories

1 tool box with standard tool.

Additional Information
