IDENTIFY SHOCK ABSORBER
If possible,please offer OEM code before you are going to send us the RFQ,or you can offer brand's code.We will identify below brand's code as well as original part number.

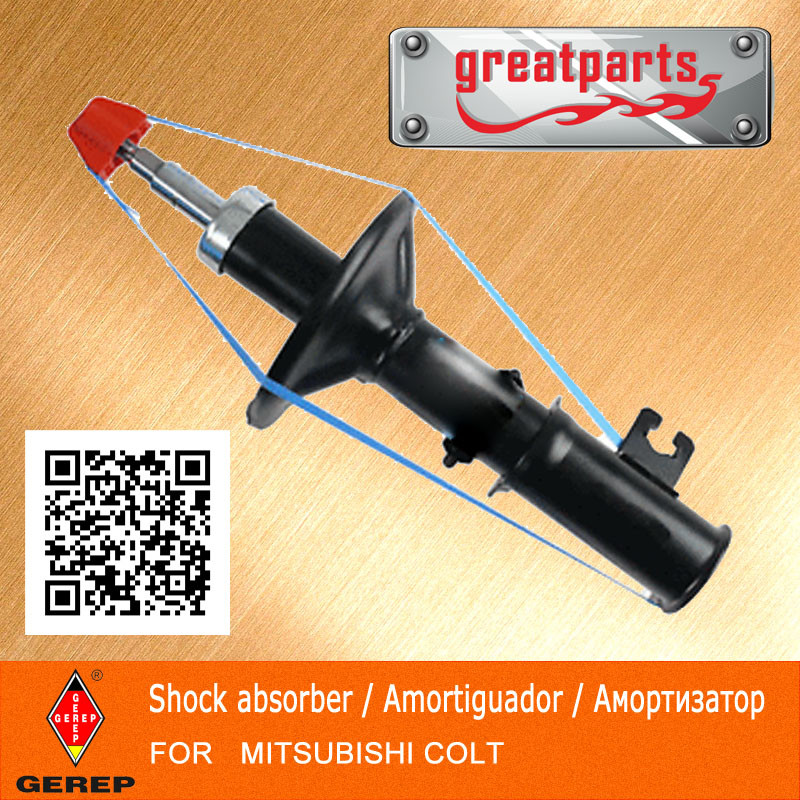

SHOCK ABSORBER SUIT FOR MITSUBISHI:
| Application model for MITSUBISHI COLT / COLT PLUS |
| Models | FRONT | REAR |
| OEM | KYB | OEM | KYB |
| COLT | MB303060 MB303061 MB349835 MB518032
MB518835 MB430354 MB430355 MB430997 MB518687 MB518688 MB518689 MB518690 MB518855 MB518856
MB573541 MB672292 MB518970 MB587339
MB911360 MB109090 MB109101 MB109188 MB109189 MB109091 MB10910 | 633040 333024 633059 333037 333078 634029 334019 334049 334326 665018 365027 | A103363 A103364
A122635 T131913E
MB242817 MB242818 MB338847 MB515097
MB515630 MB242819 MB515621 MB338897 MB338899 MB339474 MB339475 MB515064 MB584387 MB871227 MB515570 MB515571
MB584776 MB584777
MB631340 MB631341 MB515572 MB584778
MB631342 MB870869 MB584402 MB911458 MB584403 MB584340 MB584341 MB584342 MB663773 MB663774 MB515572 MB584778
MB631342 MB870869 MB110446 MB110447 MB242061 MB242062
MB242196 MB242813 | 443066 343121
553100 443357 553095 442029 552017 443250 343232 443222 343203 443251 343237 441079 341084 551074 441115 341071
551089 341114 341084 443087 553048 443269 343183 553112 |
| COLT PLUS | 4060A198 MR594045 MN125823 4060A199 4060A176 MR594024 MR594023 | 333476 | 4162A102 MR594488 MN125831 MN125832 MN125835 4162A103 4162A101 MR594131 | 343497 343490 343411 |
| S/N. | Material speciation | Top quality |
| 1 | Piston Rod | The piston rod, larger in diameter to increase the strength, is hard-chrome plated, induction hardening , and fine polished for greater resistance to corrosion, thus, assuring of smooth action. |
| 2 | Oil Seal | The special Multi-slip oil seal, made of oil and wear-resistant high quality synthetic rubber, having high sealing efficiency to keep vital oil and gas in and dirt out of the cylinder. |
| 3 | Rod Guide | The sintered iron rod guide with a PTFE-bushed sliding surface, assures smooth rod action with minimal resistance and wear. |
| 4 | Nitrogen Gas | Nitrogen gas is filled in the reservoir except hydraulic type shock absorbers. |
| 5 | Rebound Stopper | A rebound stopper, made of a high quality synthetic rubber, or resin, is installed on the piston rod to act as the rebound stop. |
| 6 | Pressure Tube | The pressure tube, with a precision sliding surface mirror-like finish is designed to withstand tremendous internal working pressures, thus, providing greater reliability. |
| 7 | Piston Valve | Unique automatic control rebound disc valve, which automatically adjusts to all ride conditions, is designed to assure maximum performance and smooth ride control.It also provides instant response for full performance without any time lag. |
| 8 | Absorber Oil | Our absorber oil with constant viscosity, blended with chemical additives provide optimum operating performance keeping its efficiency, in any weather conditions. |
| 9 | Bottom Valve | Compression disc valve, which provides excellent performance, has automatic control actions similar to the rebound piston disc valve. |
PACKAGE DETAILS:
Individual box + carton box; sticker ability: Ban-code sticker is available to print; Customerized sticker is available to print; Nylon bag will not be offered as a regular order, buyer should negotiate the charge before order. Wooden pallets will not be offered as a regular order, buyer should inform us if he need pallets For twin tube style shock absorbers: 20 GP load 8000 Pcs; 40 GP or 40 HQ load 12000 Pcs; For Strut shock absorbers, 20 GP load 1800 Pcs, 40 GP load 3600 Pcs
Packages show : Our brand and customized brand.
TRADE CONDITION:
1. RFQ - Request for quotation
We could identify shock absorbers by OEM No. or other brands part number which list following ( KYB, TOKICO, SACHS. BOGE, Bilstein, AL-KO, KONI, SABO, WEBCO, RECORD, MONROE, Gabriel, Cofap, Corven, NAKATA, Ultima, etc. )
Please send RFQ to our email to know our latest prices.
2. MOQ - Minimum order quantity
Our MOQ is 100 Pcs for each item, but if there are few items that we have in stock, the MOQ will not be indicated.
3. Customized brand packing box
We could accept customerized brand packing box based on MOQ 3000 pcs. If customerized brand order quantity less than 3000 pcs, a extra charge for printing box will be added in commercial invoice.
4. Delivery time: 45~60 days.
5. Payment term: 1> L/C 2> T/T
GUARANTEE POLICY:
Quality guarantee
For the period of two years or 50,000 kilometers, whichever occurs first, from the date of shipment, any shock absorber from WUHAN GREAT AUTO SPARE PARTS CO., LTD. found to be defective in material or workmanship in below cases, we will replace without charge, or return the equal money back:
1. Installation sizes are wrong;
2. Oil or gas leakage;
3. Iron was rusty after painting;
4. Welding position disconnect;
5. Damping force was out of test report range, ±20% damping force rate (National
standard) should be allowed and born by the purchaser.
6. 0.5% of failure rate should be allowed;
GEREP FACTORY SHOW:
GEREP SHOCK ABSORBER CREAT VALUE FOR CUSTOMER
