IDENTIFY SHOCK ABSORBER
If possible,please offer OEM code before you are going to send us the RFQ,or you can offer brand's code.We will identify below brand's code as well as original part number.

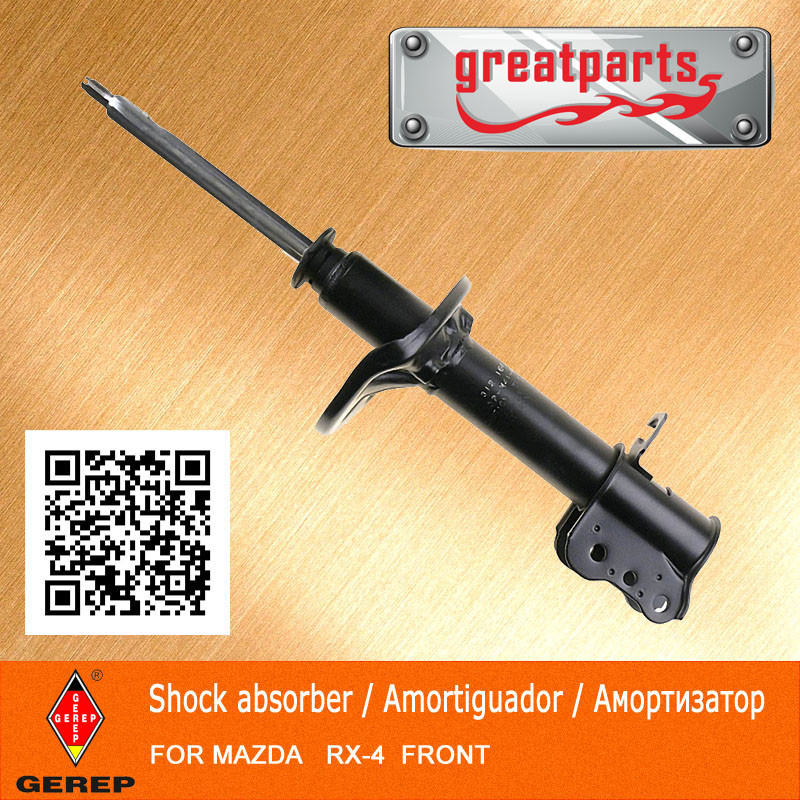

SHOCK ABSORBER SUIT FOR MAZDA: | Application model for MAZDA RX-2/RX-3/RX-4/RX-7/RX-8 |
| Models | FRONT | REAR |
| OEM | KYB | OEM | KYB |
| RX-2 | 030334910 030534910
030534960 817134910 817134960 817334910 817334960 824034910 824034960 412034910A 412034960A | 663016 363008 663019 | 030528700D 817328700 817399281 821828700A 821899281 | 341010 553299 343124 553046 |
| RX-3(SAVANNA) | 086634910 086634960 | 663017 363009 | 086228700 086628700B 058528700 058599281 | 443084 343029 443083 553267 |
| RX-4 | 101134910 175734910 854534910 854534960 859549790 859634910A
859634960A 859649790 H00134700B H04334700A
HA0134700A HA0134700B H00134900B H04334900A
HA0134900A HA0134900B | 663021 663022 665016 634003 334031 634004 334032 | 100428700 100499281
101128700 101199281 854528700 854599281
894699281 102928700 896199281 H11528700A H11528700D HA0128700D | 443081 553268 343124 553046 341040 |
| RX-7(SAVANNA) | 856234910 887134910 FA0134910B FA2434910A
FA3234910A FA5534910A F05734700B FB0134700C
FB4334700D FB4434700C F05734900B FB0134900C
FB4334900D FB4434900C FD0134700A FD0334700A FD0134900A FD0334900A | 363010 334129 334130 341168 341169 | 887128700 887199281 FA0128700 FB5228700C FC0228700 FD0128700D FD0128900D FD0328700D FD0328900D | 343064 551059 341170 |
| RX-8 | F15134700 F15134700C
F15734700 F15734700C | 551115 | F15128700 F15128700A
F15128700C F15728700
F15728700A F15728700C | 551116 |
TECHNOLOGY INTRODUCTION:| S/N. | Material speciation | Top quality |
| 1 | Piston Rod | The piston rod, larger in diameter to increase the strength, is hard-chrome plated, induction hardening , and fine polished for greater resistance to corrosion, thus, assuring of smooth action. |
| 2 | Oil Seal | The special Multi-slip oil seal, made of oil and wear-resistant high quality synthetic rubber, having high sealing efficiency to keep vital oil and gas in and dirt out of the cylinder. |
| 3 | Rod Guide | The sintered iron rod guide with a PTFE-bushed sliding surface, assures smooth rod action with minimal resistance and wear. |
| 4 | Nitrogen Gas | Nitrogen gas is filled in the reservoir except hydraulic type shock absorbers. |
| 5 | Rebound Stopper | A rebound stopper, made of a high quality synthetic rubber, or resin, is installed on the piston rod to act as the rebound stop. |
| 6 | Pressure Tube | The pressure tube, with a precision sliding surface mirror-like finish is designed to withstand tremendous internal working pressures, thus, providing greater reliability. |
| 7 | Piston Valve | Unique automatic control rebound disc valve, which automatically adjusts to all ride conditions, is designed to assure maximum performance and smooth ride control.It also provides instant response for full performance without any time lag. |
| 8 | Absorber Oil | Our absorber oil with constant viscosity, blended with chemical additives provide optimum operating performance keeping its efficiency, in any weather conditions. |
| 9 | Bottom Valve | Compression disc valve, which provides excellent performance, has automatic control actions similar to the rebound piston disc valve. |
PACKAGE DETAILS:
Individual box + carton box; sticker ability: Ban-code sticker is available to print; Customerized sticker is available to print; Nylon bag will not be offered as a regular order, buyer should negotiate the charge before order. Wooden pallets will not be offered as a regular order, buyer should inform us if he need pallets For twin tube style shock absorbers: 20 GP load 8000 Pcs; 40 GP or 40 HQ load 12000 Pcs; For Strut shock absorbers, 20 GP load 1800 Pcs, 40 GP load 3600 Pcs
Packages show : Our brand and customized brand.
TRADE CONDITION:
1. RFQ - Request for quotation
We could identify shock absorbers by OEM No. or other brands part number which list following ( KYB, TOKICO, SACHS. BOGE, Bilstein, AL-KO, KONI, SABO, WEBCO, RECORD, MONROE, Gabriel, Cofap, Corven, NAKATA, Ultima, etc. )
Please send RFQ to our email to know our latest prices.
2. MOQ - Minimum order quantity
Our MOQ is 100 Pcs for each item, but if there are few items that we have in stock, the MOQ will not be indicated.
3. Customized brand packing box
We could accept customerized brand packing box based on MOQ 3000 pcs. If customerized brand order quantity less than 3000 pcs, a extra charge for printing box will be added in commercial invoice.
4. Delivery time: 45~60 days.
5. Payment term: 1> L/C 2> T/T
GUARANTEE POLICY:
Quality guarantee
For the period of two years or 50,000 kilometers, whichever occurs first, from the date of shipment, any shock absorber from WUHAN GREAT AUTO SPARE PARTS CO., LTD. found to be defective in material or workmanship in below cases, we will replace without charge, or return the equal money back:
1. Installation sizes are wrong;
2. Oil or gas leakage;
3. Iron was rusty after painting;
4. Welding position disconnect;
5. Damping force was out of test report range, ±20% damping force rate (National
standard) should be allowed and born by the purchaser.
6. 0.5% of failure rate should be allowed;
GEREP FACTORY SHOW:
GEREP SHOCK ABSORBER CREAT VALUE FOR CUSTOMER
