IDENTIFY SHOCK ABSORBER
If possible,please offer OEM code before you are going to send us the RFQ,or you can offer brand's code.We will identify below brand's code as well as original part number.

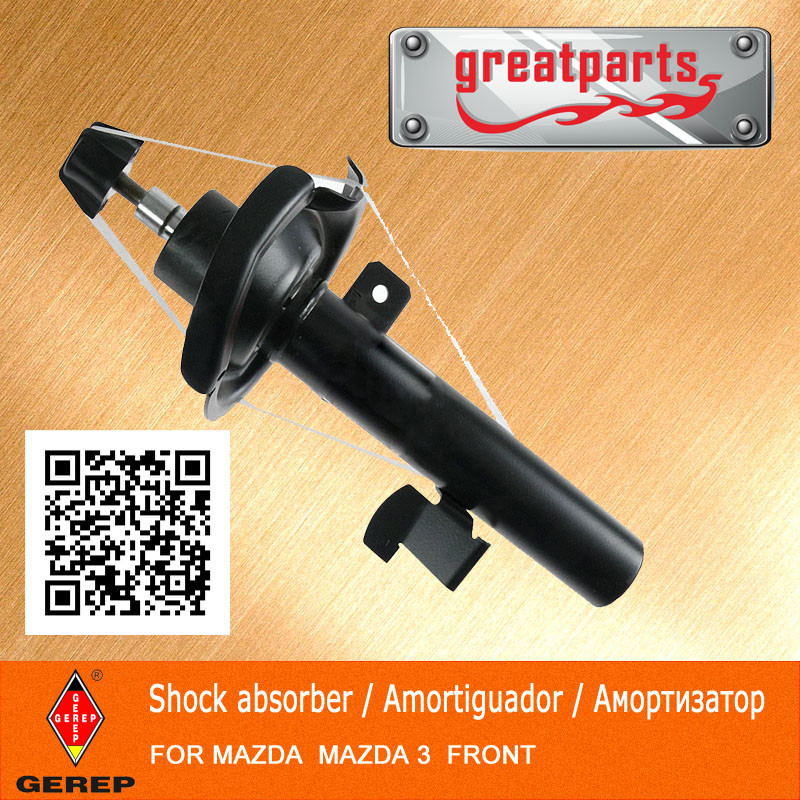

SHOCK ABSORBER SUIT FOR MAZDA:
Application model for MAZDA 2/3/5/6/8 |
Models | FRONT | REAR |
OEM | KYB | OEM | KYB |
MAZDA 2 | 1227710 2S6118045AH DDY23470YA DDY23490Y K8N7A3M7118045AC 2A21381A D65134700E DF7134700F DH0134700 2A21381B D65134900E DF7134900F DH0134900 D04A34700C D04A34900C | 333400 333401 333494 333495 | 1209075 256118008AB 3M7118008AF DD322870XD D6512870XA DF712870XB AE8118080AC AE8118080BC BE8Z18125A BE8Z18125B DN412870XD DR732870XE DS4528700 | 553308 553379 348018 |
MAZDA 3/AXELA | B32T34700C BP4K34700F B32T349000C | | BP4K28910D BR5S28910C BR5V28910C BRY028910 CC4328910A | 343412 551105 |
MAZDA 5/PREMACY | CC2934700C CC2934900C | | BP4K28910D C51328910 CC4328910A CD8528910A CDSS28910A CG3628910 CG3628910 | 343412 551105 |
MAZDA 6/ATENZA | G25S34700C G25S34700D G25S34700E GJ6E34700F GJ6E34700G GJ6E34700H GJ6W34700 GJ6W34700A GJ6W34700B GJ6W34700C GK2A34700G GK2C34700G GK2C34700J GM9A34700A GM9A34700C GM9A34700D GM9C34700A GM9C34700C GM9C34700D GR1L34700 GR1L34700A G25S34900C G25S34900D G25S34900E GJ6E34900F GJ6E34900G GJ6E34900H GJ6W34900 GJ6W34900A GJ6W34900B GJ6W34900C GK2A34900H GK2C34900H GK2C34900K GM9A34900A GM9A34900C GM9A34900D GM9C34900A GM9C34900C GM9C34900D GR1L34900 GR1L34900A G21D34700C G21D34700D G21D34700E G21D34700F G21D34700G G21D34700H G21D34700J GJ6F34700A GJ6F34700B GJ6F34700C GJ6F34700D GJ6F34700E GJ6F34700F GJ6F34700G G21D34900C G21D34900D G21D34900E G21D34900F G21D34900G G21D34900H G21D34900J GJ6F34900A GJ6F34900B GJ6F34900C GJ6F34900D GJ6F34900E GJ6F34900F GJ6F34900G GAM634700A GS1D34700C GS1D34700D GS1D34700E GS1D34700F GS1D34700G GS3L34700B GS4H34700B GAM634900A GS1D34900C GS1D34900D GS1D34900E GS1D34900F GS1D34900G GS3L34900B GS4H34900B G33S34700B G33S34900B | 341351 341352 341332 341333 341449 341450 341451 341452 | GJ5A28700B GJ5A28700C GJ5A28700D GJ6J28700B GJ6J28700C GJ6J28700D GJ6J28700E GK2A28700C GK2C28700D GM6A28700A GM6A28700B GM6A28700C GM6A28700D GM9A28700B GM9A28700C GM9A28700D GM9A28700E GM9A28700F GM9C28700A GR1L28700 GR1L28700A GR2F28700 GR2F28700A G21D28700B G21D28700C G21D28700D G21D28700E GS1D28700D GS1D28700E GS1D28700F GS1D28700G GS1M28700B GS1M28700C GS1M28700D G33S28700C GS1D28700H GS1D28700J GS3L28700B GS4H28700B | 344363 349033 349063 349064 349107 |
MAZDA 8/MPV | LA0134700C LA2534700 LB4834700P LC0334700A LC1134700A LA0134900C LA2534900 LB4834900P LC0334900A LC1134900A LA1234700 LA1234900 LC6234700C LC7234700A LC6234900C LC7234900A L09734700 L09734900 LD4734700A LD4734700B LE3334700A LD4734900A LD4734900B L20634700D L20634700E L23234700B L23234700C L52834700 L20634900D L20634900E L23234900B L23234900C L52834900 | 635009 335009 635010 335010 335011 335012 334282 334283 334418 334419 339144 339145 | LA0128700B LA2528700 LC0328700 LC1128700 LD1828700 LA1228700A LC6228700C LC7228700B L09728700A LE3128700A LC7228700 LD4728700 L20628700D L20628700E L23228700C L23228700D L52828700 | 445028 345033 554119 554126 345024 349074 |
TECHNOLOGY INTRODUCTION:S/N. | Material speciation | Top quality |
1 | Piston Rod | The piston rod, larger in diameter to increase the strength, is hard-chrome plated, induction hardening , and fine polished for greater resistance to corrosion, thus, assuring of smooth action. |
2 | Oil Seal | The special Multi-slip oil seal, made of oil and wear-resistant high quality synthetic rubber, having high sealing efficiency to keep vital oil and gas in and dirt out of the cylinder. |
3 | Rod Guide | The sintered iron rod guide with a PTFE-bushed sliding surface, assures smooth rod action with minimal resistance and wear. |
4 | Nitrogen Gas | Nitrogen gas is filled in the reservoir except hydraulic type shock absorbers. |
5 | Rebound Stopper | A rebound stopper, made of a high quality synthetic rubber, or resin, is installed on the piston rod to act as the rebound stop. |
6 | Pressure Tube | The pressure tube, with a precision sliding surface mirror-like finish is designed to withstand tremendous internal working pressures, thus, providing greater reliability. |
7 | Piston Valve | Unique automatic control rebound disc valve, which automatically adjusts to all ride conditions, is designed to assure maximum performance and smooth ride control.It also provides instant response for full performance without any time lag. |
8 | Absorber Oil | Our absorber oil with constant viscosity, blended with chemical additives provide optimum operating performance keeping its efficiency, in any weather conditions. |
9 | Bottom Valve | Compression disc valve, which provides excellent performance, has automatic control actions similar to the rebound piston disc valve. |
PACKAGE DETAILS:
Individual box + carton box; sticker ability: Ban-code sticker is available to print; Customerized sticker is available to print; Nylon bag will not be offered as a regular order, buyer should negotiate the charge before order. Wooden pallets will not be offered as a regular order, buyer should inform us if he need pallets For twin tube style shock absorbers: 20 GP load 8000 Pcs; 40 GP or 40 HQ load 12000 Pcs; For Strut shock absorbers, 20 GP load 1800 Pcs, 40 GP load 3600 Pcs
Packages show : Our brand and customized brand.
TRADE CONDITION:
1. RFQ - Request for quotation
We could identify shock absorbers by OEM No. or other brands part number which list following ( KYB, TOKICO, SACHS. BOGE, Bilstein, AL-KO, KONI, SABO, WEBCO, RECORD, MONROE, Gabriel, Cofap, Corven, NAKATA, Ultima, etc. )
Please send RFQ to our email to know our latest prices.
2. MOQ - Minimum order quantity
Our MOQ is 100 Pcs for each item, but if there are few items that we have in stock, the MOQ will not be indicated.
3. Customized brand packing box
We could accept customerized brand packing box based on MOQ 3000 pcs. If customerized brand order quantity less than 3000 pcs, a extra charge for printing box will be added in commercial invoice.
4. Delivery time: 45~60 days.
5. Payment term: 1> L/C 2> T/T
GUARANTEE POLICY:
Quality guarantee
For the period of two years or 50,000 kilometers, whichever occurs first, from the date of shipment, any shock absorber from WUHAN GREAT AUTO SPARE PARTS CO., LTD. found to be defective in material or workmanship in below cases, we will replace without charge, or return the equal money back:
1. Installation sizes are wrong;
2. Oil or gas leakage;
3. Iron was rusty after painting;
4. Welding position disconnect;
5. Damping force was out of test report range, ±20% damping force rate (National
standard) should be allowed and born by the purchaser.
6. 0.5% of failure rate should be allowed;
GEREP FACTORY SHOW:
GEREP SHOCK ABSORBER CREAT VALUE FOR CUSTOMER
