IDENTIFY SHOCK ABSORBERIf possible,please offer OEM code before you are going to send us the RFQ,or you can offer brand's code.We will identify below brand's code as well as original part number.

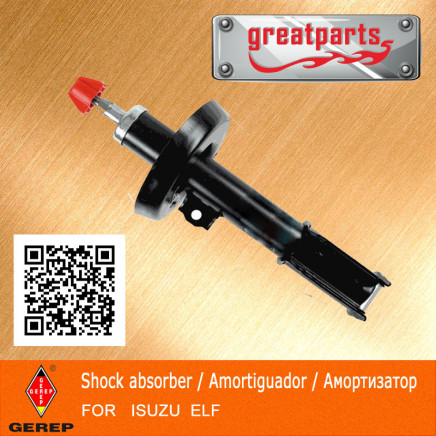

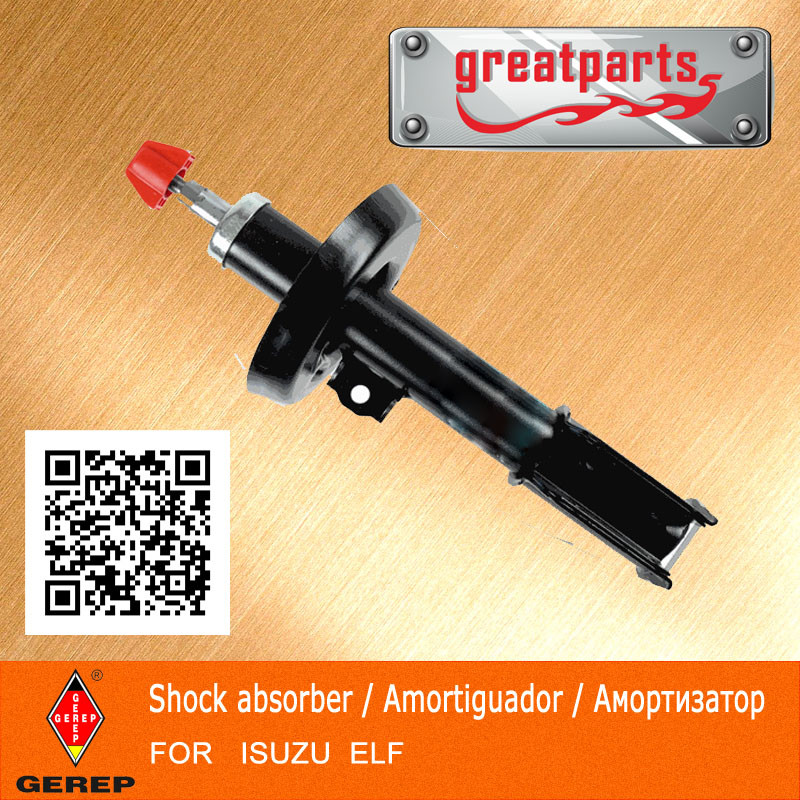

SHOCK ABSORBER SUIT FOR ISUZU:| Application model for ISUZU ELF/ELF 4WD/ELF150/250/350/ELF250 WIDE |
| Models | FRONT | REAR |
| OEM | KYB | OEM | KYB |
| ELF | 9516301710 9516303210 9516306650 9516303240 9516306630 9516306470
9516306690 9516306651
9516306471 5516300600
8972536200 8980981250
8980981270 8972536050 8980857090 |
344062 444028
553282 444198
445016 345025
444057 344335
444201 444329
349126 554381 | 951630046 9516301720
9516301740 9516302530
9516303000 9516306660
9516303220 9516306610 9516306560 5516300020 9516300520 5516300620 8972536650 8980980580 8980980590 8972536510 | 444057 344335 445047 444058 344328 553256
444151 344333
553255 444023
44334 444168
444328 444269
349119 554380
349127 554383 |
| ELF 4WD | 8944400381 | | 9516302532 | 445075 |
| ELF150/ELF250 | 8941674580 9516306652
8944466900 8979163500
8971079850 8972535920
8971600820 | 444201 444213 344319 444261
349126 | 8941674601 8941674600 8942494021 8971079860
8979163520 8971600940 | 444086 344320 444180 |
| ELF250 WIDE/ELF350 | 8970830270 9516306471 8970830350 8971600870 | 445016 345025 445079 | 9516306660 8971600940 | 444058 344328
553256 |
TECHNOLOGY INTRODUCTION:| S/N. | Material speciation | Top quality |
| 1 | Piston Rod | The piston rod, larger in diameter to increase the strength, is hard-chrome plated, induction hardening , and fine polished for greater resistance to corrosion, thus, assuring of smooth action. |
| 2 | Oil Seal | The special Multi-slip oil seal, made of oil and wear-resistant high quality synthetic rubber, having high sealing efficiency to keep vital oil and gas in and dirt out of the cylinder. |
| 3 | Rod Guide | The sintered iron rod guide with a PTFE-bushed sliding surface, assures smooth rod action with minimal resistance and wear. |
| 4 | Nitrogen Gas | Nitrogen gas is filled in the reservoir except hydraulic type shock absorbers. |
| 5 | Rebound Stopper | A rebound stopper, made of a high quality synthetic rubber, or resin, is installed on the piston rod to act as the rebound stop. |
| 6 | Pressure Tube | The pressure tube, with a precision sliding surface mirror-like finish is designed to withstand tremendous internal working pressures, thus, providing greater reliability. |
| 7 | Piston Valve | Unique automatic control rebound disc valve, which automatically adjusts to all ride conditions, is designed to assure maximum performance and smooth ride control.It also provides instant response for full performance without any time lag. |
| 8 | Absorber Oil | Our absorber oil with constant viscosity, blended with chemical additives provide optimum operating performance keeping its efficiency, in any weather conditions. |
| 9 | Bottom Valve | Compression disc valve, which provides excellent performance, has automatic control actions similar to the rebound piston disc valve. |
PACKAGE DETAILS:
Individual box + carton box; sticker ability: Ban-code sticker is available to print; Customerized sticker is available to print; Nylon bag will not be offered as a regular order, buyer should negotiate the charge before order. Wooden pallets will not be offered as a regular order, buyer should inform us if he need pallets For twin tube style shock absorbers: 20 GP load 8000 Pcs; 40 GP or 40 HQ load 12000 Pcs; For Strut shock absorbers, 20 GP load 1800 Pcs, 40 GP load 3600 Pcs
Packages show : Our brand and customized brand.
TRADE CONDITION:
1. RFQ - Request for quotation
We could identify shock absorbers by OEM No. or other brands part number which list following ( KYB, TOKICO, SACHS. BOGE, Bilstein, AL-KO, KONI, SABO, WEBCO, RECORD, MONROE, Gabriel, Cofap, Corven, NAKATA, Ultima, etc. )
Please send RFQ to our email to know our latest prices.
2. MOQ - Minimum order quantity
Our MOQ is 100 Pcs for each item, but if there are few items that we have in stock, the MOQ will not be indicated.
3. Customized brand packing box
We could accept customerized brand packing box based on MOQ 3000 pcs. If customerized brand order quantity less than 3000 pcs, a extra charge for printing box will be added in commercial invoice.
4. Delivery time: 45~60 days.
5. Payment term: 1> L/C 2> T/T
GUARANTEE POLICY:
Quality guarantee
For the period of two years or 50,000 kilometers, whichever occurs first, from the date of shipment, any shock absorber from WUHAN GREAT AUTO SPARE PARTS CO., LTD. found to be defective in material or workmanship in below cases, we will replace without charge, or return the equal money back:
1. Installation sizes are wrong;
2. Oil or gas leakage;
3. Iron was rusty after painting;
4. Welding position disconnect;
5. Damping force was out of test report range, ±20% damping force rate (National
standard) should be allowed and born by the purchaser.
6. 0.5% of failure rate should be allowed;
GEREP FACTORY SHOW:
GEREP SHOCK ABSORBER CREAT VALUE FOR CUSTOMER
