IDENTIFY SHOCK ABSORBER
If possible,please offer OEM code before you are going to send us the RFQ,or you can offer brand's code.We will identify below brand's code as well as original part number.

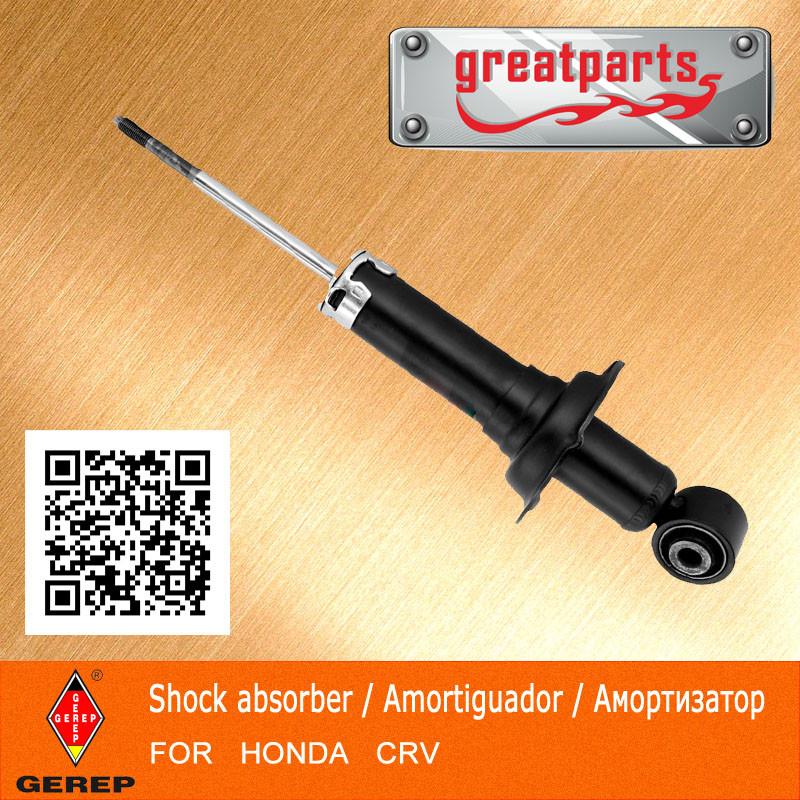

SHOCK ABSORBER SUIT FOR HONDA:| Application model for HONDA CR-V |
| Models | FRONT | REAR |
| OEM | KYB | OEM | KYB |
| CR-V | 51605S10024 51605S10A01 51601S9HT01 51605S9A034
51605S9AA05 51605S9AK02
51605S9HT01 51602S9AA08 51602S9HT01 51606S9A034 51606S9AK02 51606S9HT01 51605S9AA22 51605S9AG22
51605S9ET12 51606S9AA22 51606S9AG22 51606S9ET12 51605SKNG01 51606SKNG01 51601SXSA02 51605SWAA04
51605SWAA21 51605SWAJ04
51605SWAJ05 51605SWAJ21
51605SWET02 51605SWWE02
51605SWYE02 51605SXSA02 51605SXSA21 51606SWAA21 51606SWAJ04 51606SWAJ21 51606SWET02 51606SWWE02 51606SXSA02 51606SXSA21 | 341260 331050 331051 331048 331049 331044 331045 339261 339262 | 52611S10024 52611S10A01 52611S9AA03 52611S9AA12
52611S9AG02 52611S9AN02
52611S9AN03 52611S9AN03
52611S9ET03 52611S9HK01
52620S9AA4 52611S9AA12 52611S9ET12 52610SXSA15
52611SWAA01 52611SWAA02
52611SWET01 52611SWET02 | 341261 341488 341463 341492 |
TECHNOLOGY INTRODUCTION:| S/N. | Material speciation | Top quality |
| 1 | Piston Rod | The piston rod, larger in diameter to increase the strength, is hard-chrome plated, induction hardening , and fine polished for greater resistance to corrosion, thus, assuring of smooth action. |
| 2 | Oil Seal | The special Multi-slip oil seal, made of oil and wear-resistant high quality synthetic rubber, having high sealing efficiency to keep vital oil and gas in and dirt out of the cylinder. |
| 3 | Rod Guide | The sintered iron rod guide with a PTFE-bushed sliding surface, assures smooth rod action with minimal resistance and wear. |
| 4 | Nitrogen Gas | Nitrogen gas is filled in the reservoir except hydraulic type shock absorbers. |
| 5 | Rebound Stopper | A rebound stopper, made of a high quality synthetic rubber, or resin, is installed on the piston rod to act as the rebound stop. |
| 6 | Pressure Tube | The pressure tube, with a precision sliding surface mirror-like finish is designed to withstand tremendous internal working pressures, thus, providing greater reliability. |
| 7 | Piston Valve | Unique automatic control rebound disc valve, which automatically adjusts to all ride conditions, is designed to assure maximum performance and smooth ride control.It also provides instant response for full performance without any time lag. |
| 8 | Absorber Oil | Our absorber oil with constant viscosity, blended with chemical additives provide optimum operating performance keeping its efficiency, in any weather conditions. |
| 9 | Bottom Valve | Compression disc valve, which provides excellent performance, has automatic control actions similar to the rebound piston disc valve. |
PACKAGE DETAILS:
Individual box + carton box; sticker ability: Ban-code sticker is available to print; Customerized sticker is available to print; Nylon bag will not be offered as a regular order, buyer should negotiate the charge before order. Wooden pallets will not be offered as a regular order, buyer should inform us if he need pallets For twin tube style shock absorbers: 20 GP load 8000 Pcs; 40 GP or 40 HQ load 12000 Pcs; For Strut shock absorbers, 20 GP load 1800 Pcs, 40 GP load 3600 Pcs
Packages show : Our brand and customized brand.
TRADE CONDITION:
1. RFQ - Request for quotation
We could identify shock absorbers by OEM No. or other brands part number which list following ( KYB, TOKICO, SACHS. BOGE, Bilstein, AL-KO, KONI, SABO, WEBCO, RECORD, MONROE, Gabriel, Cofap, Corven, NAKATA, Ultima, etc. )
Please send RFQ to our email to know our latest prices.
2. MOQ - Minimum order quantity
Our MOQ is 100 Pcs for each item, but if there are few items that we have in stock, the MOQ will not be indicated.
3. Customized brand packing box
We could accept customerized brand packing box based on MOQ 3000 pcs. If customerized brand order quantity less than 3000 pcs, a extra charge for printing box will be added in commercial invoice.
4. Delivery time: 45~60 days.
5. Payment term: 1> L/C 2> T/T
GUARANTEE POLICY:
Quality guarantee
For the period of two years or 50,000 kilometers, whichever occurs first, from the date of shipment, any shock absorber from WUHAN GREAT AUTO SPARE PARTS CO., LTD. found to be defective in material or workmanship in below cases, we will replace without charge, or return the equal money back:
1. Installation sizes are wrong;
2. Oil or gas leakage;
3. Iron was rusty after painting;
4. Welding position disconnect;
5. Damping force was out of test report range, ±20% damping force rate (National
standard) should be allowed and born by the purchaser.
6. 0.5% of failure rate should be allowed;
GEREP FACTORY SHOW:
GEREP SHOCK ABSORBER CREAT VALUE FOR CUSTOMER
