Shenzhen Manufacturer Vehicle GPS Tracking Device for Long Time Tracking

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 300/ Piece

Price:US $300.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: T/T, Paypal, Money Gram, Western Union

Price Valid Time:From Aug 18, 2014 To Jul 14, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:BSJ-M20

Function:Anti-theft Warning, Central Locking System Automation, GSM Network Remote Real-time Monitoring, Mute Anti-theft, Remote Central Locking, Automatically Unlock when Get Close

Type:GSM

Size of Main Unit:110*80*25mm

Weight:170g

Backup Battery:3000mAh/3.7V

Power Consumption:65mA

Working Temperature:-20 to 80 Centigrade

Humidity:5% to 95%

Data Logger Memory:4MB

GPS Chip:U-Blox

GPS Sensitivity:-163dBm

Positioning Accuracy:10 Meter

Export Markets:Global

Additional Info.

Trademark:BSJ/Customized brand is accepted

Packing:Gift Box/Netural Box

Standard:ISO9001; CE; Rohs; CCC;

Origin:Shenzhen, China.

HS Code:85311010

Production Capacity:2, 000, 000PCS/Week

Product Description

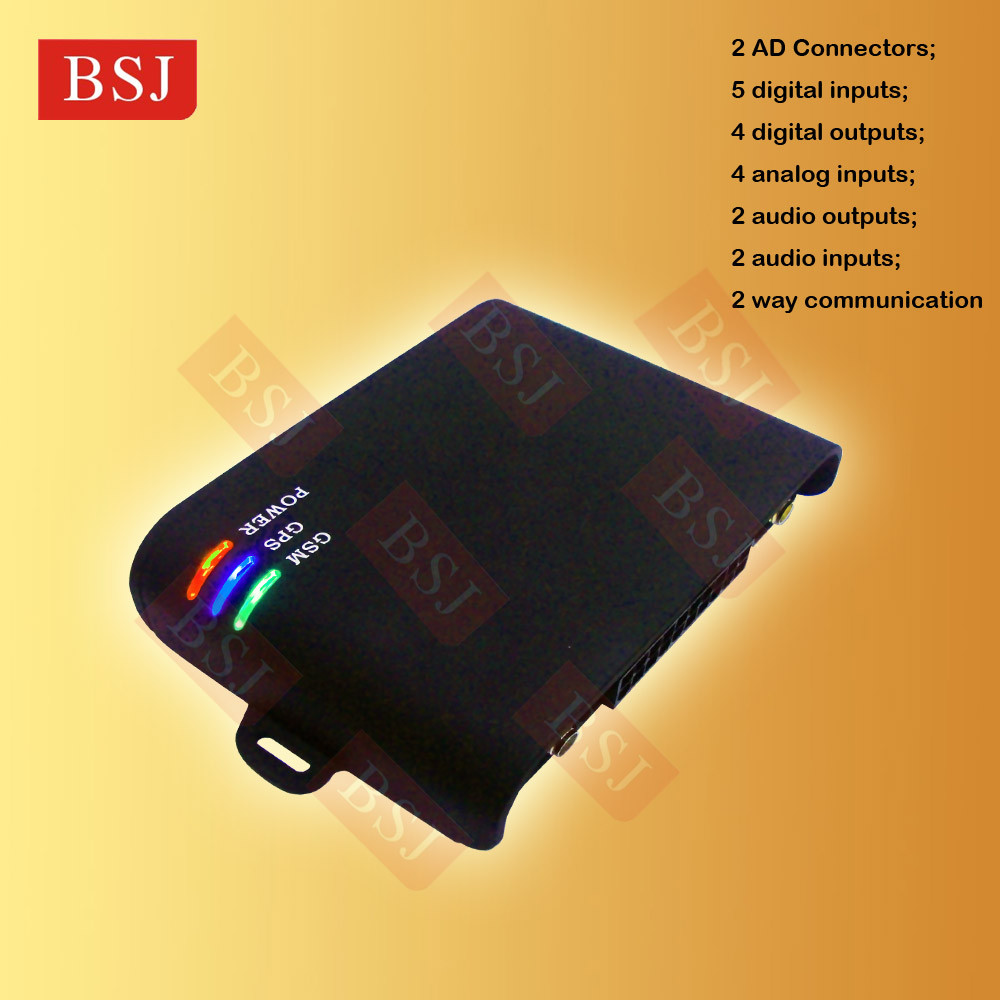

Shenzhen Manufacturer Vehicle GPS Tracking Device for Long Time Tracking

I. Description of Vehicle GPS Tracking Device for Long Time Tracking BSJ-M20

Real Time Vehicle Tracking Device Fleet Management, motion sensor for shake alarm and power saving is designed for car, truck and fleet management. It is a new product based on 900/1800/850/1900MHZ for worldwide market. It is a mulstiple gps tracker and car alarm device. Support upgrade firmware in air for free.

2. Applications of Vehicle GPS Tracking Device for Long Time Tracking BSJ-M20

Vehicle Real Time Tracking
Vehicle Data Warehouse
Location Based Service
Car Security/Anti-Hijack
Fleet Management

3. Features of Vehicle GPS Tracking Device for Long Time Tracking BSJ-M20

U-blox GPS and Quad Band GSM 850/900/1800/1900Mhz
Track by SMS/GPRS (TCP/UDP)
Track on Demand
Track by Time Interval
Track on Mobile Phone
Inbuilt Motion Sensor
3, 000mAh Internal Backup Battery
Mileage report
Wiretapping
Power low/lost alert
Towing alert
SOS alert
Geo-fence alert
GPS Antenna Cut alert
20 ports(5 digital inputs; 4 digital outputs; 4 analog inputs; 2 audio outputs; 2 audio inputs)

4. Accessories of Vehicle GPS Tracking Device for Long Time Tracking BSJ-M20

M20 GPS tracker
GPS antenna
GSM antenna
Microphone
I/O cable
Panic button
USB cable

5. Optional accessories of Vehicle GPS Tracking Device for Long Time Tracking BSJ-M20

Fuel sensor
Temperature sensor
Relay

Items	Parameter
Dimension	110mm80mm25mm
Weight	170g
Input Voltage	DC 9V~36V/1.5A
Back-up Battery	3000mAh/3.7V
Power consumption	65mA standby current
Operating temperature	-20~80 Centigrade
Humidity	5%~95%
Work Time	10 hours in normal mode
LED	3 LED lights to show GPS, GSM and Power
Button	1 SOS and 1 power on/off
Microphone	1
Speaker	1
Flash memory	4MB
Sensor	Built in motion sensor
GSM frequency	GSM 850/900/1800/1900MHz
GPS chip	U-blox
GPS sensitivity	-159dB
Positioning accuracy	10 meters
I/O ports	5 digital inputs; 4 digital outputs; 2 analog inputs; 2 audio outputs; 2 audio inputs.
USB port	1 USB for configuration, updating firmware and detecting logs
