Shacman F3000 4X2 Tractor Trailer Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Unit)	Unit Price
1.0	US $ 31000/

Price:US $31000.0 / Unit

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Apr 01, 2015 To Jul 01, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:SX4255NT324

Transmission Type:Manual

Power:Diesel

Load Capacity:21-30t

Emission Standard:Euro 3

Drive Wheel:4×2

Seats:?5

Horsepower:251-350hp

Engine Capacity:6-8L

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Condition:New

Truck Type:Tractor Truck

Export Markets:Global

Additional Info.

Trademark:SHACMAN

Packing:Nude Packing

Standard:Euro 2 or 3

Origin:Shanxi, China

Production Capacity:10000 Units/Month

Product Description

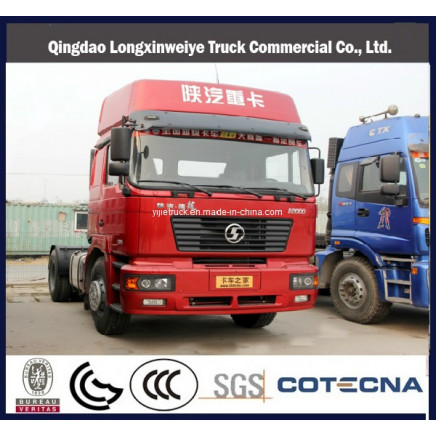

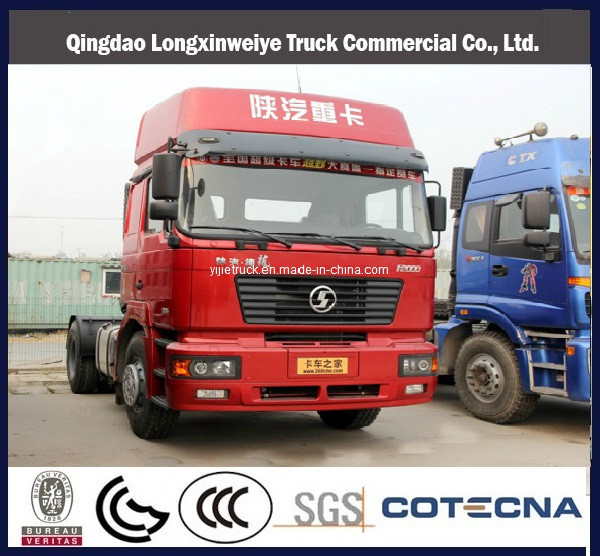

Shacman F3000 4X2 Tractor Trailer Truck

1) Engine model: WD615.50/34/38 (280/340/380HP)
2) Clutch: 430 Diaphragm
3) Transmission: Fuller
6) Steering: Zf technology
9) Maximum driving speed: 85km/h
11) Minimum ground clearance: 298mm
13) Fuel consumption: 36L/100km
14) Rated traction weight: 35, 500kg
15) Maximum loading capacity at fifth wheel: 18, 000kg
16) Dead weight: 7, 210kg
17) Gross vehicle weight: 19, 000kg
18) Front axle loading capacity: 6, 500kg
19) Gross combination weight: 55, 000kg
20) Rear axle loading capacity: 13, 000kg
21) Wheelbase: 3, 500mm
22) Front wheel track: 1, 939mm
23) Rear wheel track 1, 800mm
24) Front overhang: 1, 576mm
25) Rear overhang: 1, 110mm
26) Approach angle: 15 degrees
27) Departure angle: 42 degrees
28) Overall length: 6, 110mm
29) Overall width: 2, 496mm
30) Overall height: 3, 958mm
31) Coupling kingpin diameter (mm): 50#/90#

Shacman F2000 Tractor Truck
Drive type	6×4
Cabin	F2000 cabin with one sleeper, with air condition
Engine WD615.34	Horsepower		340
	Emission standard		EUROII
Wheel base (mm)	2925+1350
Rated weight (T)	40Ton- 60Ton
Steering	ZF technology
Front axle	7.5Ton MAN technology
Rear axle	13Ton STR
Saddle	90# 3.5 inch
Transmission	9JS135 1350N.m 9 forward speeds, 1 reverse speed.
Weight (kg)	Curb weight (kg)	9210
	Max. total weight (kg)	25000
	Rated weight (kg)	40000
Tire	Model	12.00-20 Bias tire
	Number	10+1
Dimension (mm)	6600×2480×3950(L×W×H)
Spring number	9/12
Max. speed (km/h)	90
Fuel tanker capacity (L)	380L Iron
