Shacman F2000 6X4 10 Wheels Tractor Truck Trailer Head

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Unit

Trade Terms:FOB, CFR, CIF

Payment Terms:L/C, T/T

Trademark:Shacman

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:SX4254NR351

Transmission Type:Manual

Power:Diesel

Load Capacity:50t

Emission Standard:Eurp 2 or Euro 3

Drive Wheel:6×4

Seats:?5

Horsepower:251-350hp

Engine Capacity:?8L

Tire Type:Inner Tube

Tire Design:Radial

Condition:New

Truck Type:Tractor Truck

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:Shacman

Packing:Nude Packing

Origin:Shanxi, China

Production Capacity:1000 Units/Month

Product Description

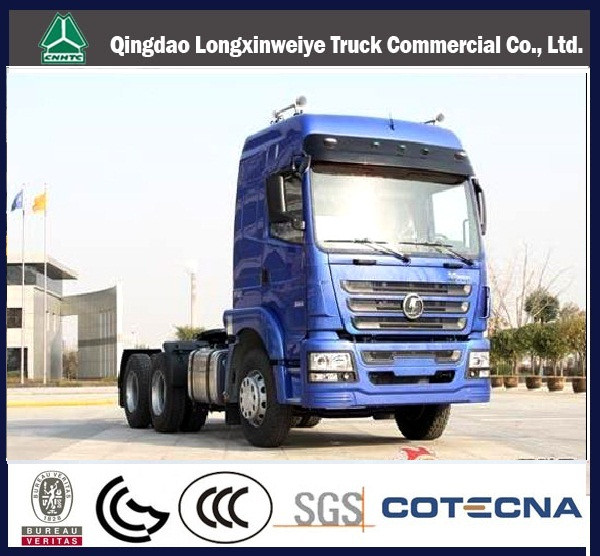

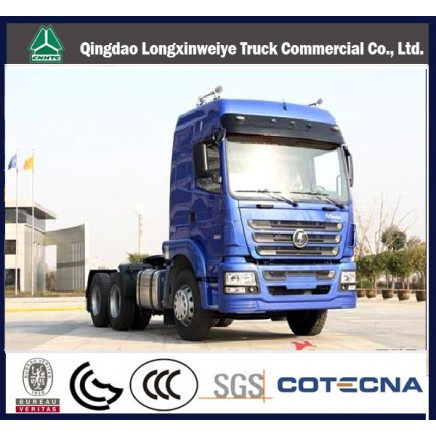

Shacman F2000 6x4 10 Wheels Tractor Truck Trailer Head

1. Shacman 6x4 tractor prime mover
2. Based on MAN design platform
3. European technology WEICHAI engine
4. FAST (Fuller technology) transmission
5. HANDE military axles
6. Good quality
7. Timely delivery

Tractor Truck	Driving type: 6x4 Based on MAN Design platform
Cabin	Air suspension MAN F2000 cab, sleeper, hydraulic shock absorb adjustable seat, safety belt,
adjustable steering, sunroof, sun cap, bumper
Engine	Diesel, 4-stoke Direct injection, 6-cylinder in line, radiator, Turbo-charging.
Model:	WD12.420		WEICHAI engine with European WEVB technology
	Engine power		420HP/309kw
	Displacement(L):		11.596 Liter
	Max torque:		1750NM@1300~1600
	Bore/stoke:		126mm/155mm
	Fuel consumption		198g/kW. h
Gear box			Applied American technology
	Model:		FAST 12JS180T
	Speed:		12speed, 2 reverse
Axle(front/rear)- Military axle
Front axle	7.5ton MAN technology non-driving steering axle
Tandem	13T STR technology double reduction, hub redactor driving axle
(Driving axle)	Wheel differential locks
Clutch	D430 diaphragm type, single dry frictional disc, hydraulic boosting.
Brake	Service brake: Double circuit pneumatic brake
	Parking brake: Spring-Power drum brake
	Engine brake: Engine exhaust brake(EVB)
Steering	ZF technology, driver sit at the left hand side
Electric Equipment
	Operating voltage:	24Vnegative grounded
	Starter:	24V, 5.4KW
	Alternator	28V, 758W
	Battery voltage	12V/135Ah, cigar lighter
Frame	850mm (width)-Variable sections strengthened frame, made as tough road condition
Tyre	10+1 spare tyre with wheel
	12.00-20
Suspension system: Leaf spring type
	Front/Rear	10/12
Overall dimension(mm): 6600x2490x3950(Length x width x height)
Wheelbase	2925+1350mm
Track:
	Front/Rear		1939/1800/1800
	Approach/Departure angle		16/66
	Front /Rear overhang		1525/800
	Max speed		92km/h
Curb weight:	9050kg		Diesel tank	400L
