Shacman D'long F3000 6X4 375HP Euro2 Tractor Head

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Unit)	Unit Price
1.0	US $ 32000/

Price:US $32000.0 / Unit

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Jan 08, 2015 To Apr 08, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:SX4254NT2941

Transmission Type:Manual

Power:Diesel

Load Capacity:31-40t

Emission Standard:Euro 3

Drive Wheel:6×4

Seats:?5

Horsepower:351-450hp

Engine Capacity:?8L

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Condition:New

Truck Type:Tractor Truck

Export Markets:Global

Additional Info.

Trademark:SHACMAN

Packing:Nude Packing

Standard:Euro 2 or Euro 3

Origin:China

Production Capacity:60000 Sets/Year

Product Description

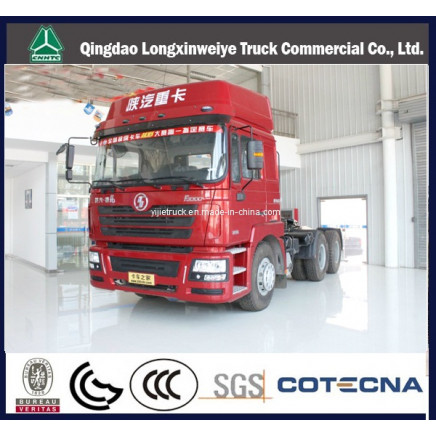

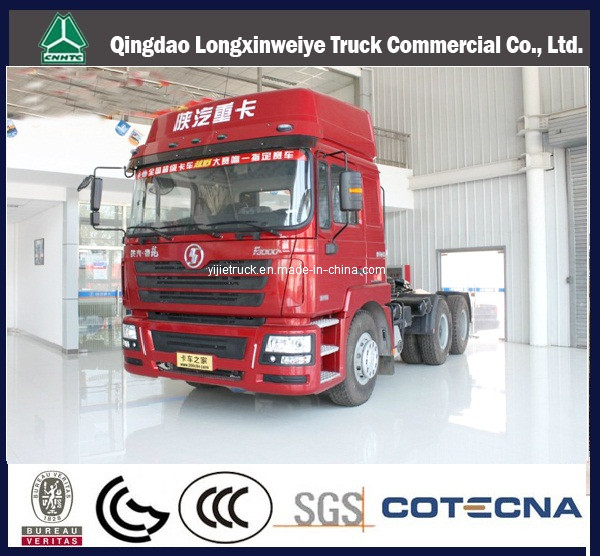

Shacman D'long F3000 6X4 375HP Euro2 Tractor Head

Type: TRACTOR TRUCK
Brand: DELONG ( SHACMAN )
Traction type: 6x4
Driving type: Left hand driving (RHD is optioned)
Cabin: MAN F3000 cab
Engine
Engine brand: Steyr (Weichai)
Engine model: WP10.290
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
With water cooling, turbo-charging & intercooling, Bosch pump (Electronic control unit), common rail system
Rated power: 213kw
Displacement: 9.726 liters
Max. Output: 290HP@2200rpm
Gear box:
Model: Fuller 9 speeds (9JS119)
Type: Manual
Clutch: 430 Diaphragm type
Steering: ZF Technology

ABS system: Chinese brand
Speed limiter
Tyre: 12R22.5 (rim: 8.5-20) Radial tyre

No. Of tyre: 6+1spare
Spring: 10/9+6, 4/3

Front axle: MAN technology 7.5ton front axle

Rear axle: 13T man axle
Fuel tank capacity (L): 400L aluminum
Fuel consumption (L/ 100km ): 36
Wheel base (mm): 3600
Dimension (mm): 6150x2490x4000.

Shacman D' long F3000 6X4 375HP Euro2 Tractor Head
Cabin				air deflector, air-condition, single or double sleeper, USB application,
				electric window lifter, MAN/STEYER cabin
Drive type				Left hand / right hand, 6x4
Engine: WEICHA I(WP series , WD series)
Type				Diesel 4-stroke direct injection engine,
				6-cylinder in line with water cooling, turbo-charging& inter cooling.
Number of cylinder				Inline six-cylinder		BOSCH oil pump
Displacement				5.762L, 11.596L
Emission				Euro 2, 3, 4
Max torque (kg. m/rpm)				1 5 00NM@1400-1600rpm
Cl u tch
Type				? 430 diaphragm construction
				Single-plate dry cluth, mechanically operating with air assisted
Gear box, Transmission
Model				FAST FULLER(recommendation), ZF 8098,
Type				9, 10, 12, 16 speeds AS ( Automatic Synchronizer )
Gear box				Mechaical form, Remote control device
Front axle
Type				STYER / HANDE,
Permissble load			Kg /axle	65 00 kg, 7500kg
Rear driving axle
Model				STYER / HANDE driving axle
Type				Pressed axle housing, single/double reduction with planetary wheel reduction.
Permissble load		Kg /axle		1 3000kg, 16 000 kg
Track				1800/1860
Transmission ratio				4.42 4.80 5.73 6.72 7.49 8.40 9.94
Tyre :
				Bias/Radial TYRE 315/80R22.5 / 12.00R20
Braking sytstem
Brake					ABS, ASR
Service brake					Dual circuit pneumatic brake
Parking brake					Spring energy, compressed air operating on rear wheels
Hanging
Type	FR/RR				Spring plate, Lug/Multi-leaf spring
Electric equipment
Operating voltage					24v, negative grounded
Battery voltage/capacity					12v/135A, 165
Turning technolog					ZF8098 hydraulic pressure steering system
Oil Tank: 38 0L

Other option: PTO, more than 20 colors' surface, strengthen leaf spring. mainly as your requests.
