SHACMAN D'long F3000 6x4 336HP Tractor Head

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Unit)	Unit Price
1.0	US $ 41200/

Price:US $41200.0 / Unit

Trade Terms: FOB

Payment Terms: L/C, T/T

Price Valid Time:From May 14, 2015 To Aug 14, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:SX4254NM351

Transmission Type:Manual

Power:Diesel

Load Capacity:31-40t

Emission Standard:Euro 3

Drive Wheel:6×4

Seats:?5

Horsepower:251-350hp

Engine Capacity:?8L

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Condition:New

Truck Type:Tractor Truck

Type:Tractor Truck

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:SHACMAN-F3000

Packing:Nude Package

Standard:Euro 2 or 3

Origin:Shanxi, China

Production Capacity:3000sets/Month

Product Description

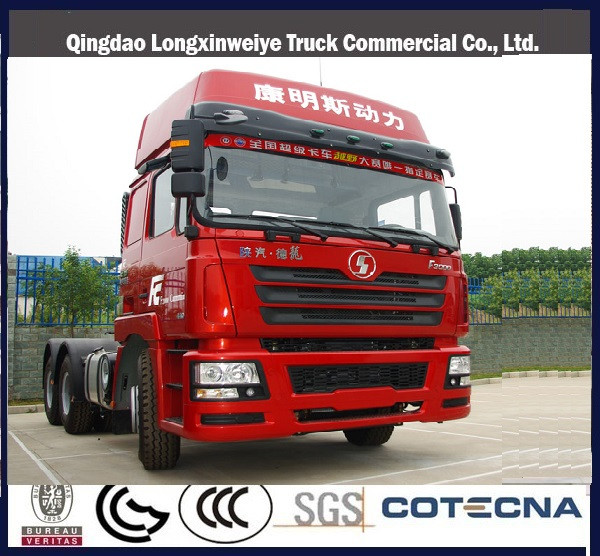

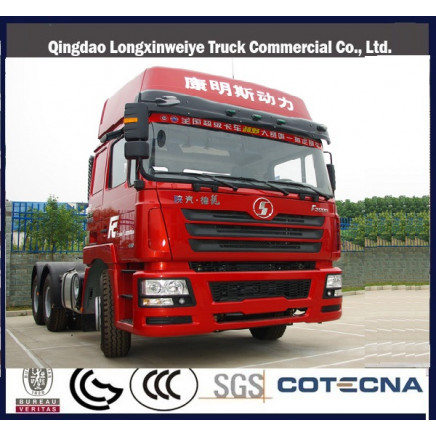

Shacman D'long F3000 6x4 336HP tractor head
Traction type: 6x4
Driving type: LHD(RHD is option)
Cabin: MAN cab extra lengthened series extra widened with high-roof(A/C)

Engine
Engine brand: Steyr (Weichai)
Engine model: WP12.336N
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & intercooling
Displacement: 11.596liters
Max. Output: 336HP@2200rpm
Max torque: 1360NM@1200-1600rpm
Bore/Stroke(mm): 126/130
Mean Position Speed: 9.53m /s
Compression ratio: 15.5: 1
Specific fuel consumption: 190g /Kwh
Gear box:

Model: Fuller 12 speeds (12JSD160T)
No. Of speeds: 12 forward, 2 reverse

Clutch:
Model: ? 430 pull-type diaphragm clutch
Steering: ZF technology
Front axle: MAN technology 7.5ton front axle
Rear axle: MAN13t driving axle (punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock)

Tyre
Tyre: 12.00-20
No.: 10+1
Spring: 9/12

Fuel consumption (L/ 100km ): 38
Fuel tank capacity (L): 400
Max. Speed (km/h): 92
Max. Gradeability(%): 28
Kerb. Mass: 9050 kg
Wheel base (mm): 3225+1350

Front overhang (mm): 1525
Rear overhang (mm): 800
Front track (mm): 1939
Rear track (mm): 1800
Turning circle diameter: 14.2 m
Approach angle: 16 degree
Departure angle: 66 degree
Dimension (mm): 6600x2490x3750
5th wheel: 2.5"(3.5" is optioned).

ITEM

DESCRIPTION & SPECIFICATIONS

SHACMAN F2000 4x2 LHD Tractor Truck
SX4184NM351
Made Year:2014
1.    Drive System: 4x2;
2.    Wheelbase: 3500mm;
3.    Curb weight: 6945kgs;
4.    Overall Dimensions: 6130×2490×3646mm;
5.    Engine: WD615.50( WEICHAI ), EUROII emission standard;
6.    Horsepower: 280HP;
7.    Gearbox: 9JS119;
8.    Clutch: 430 Diaphragm type;
9.    Steering: ZF Technology;
10. Cab: F2000 lengthened high roof Cabin with A/C;
11. Front axle: 7.5T MAN;
12. Rear axle: 13Ton STR double reduction driving axle, final ratio 4.42;
13. Tyre (radial tyre): 12.00R20(10+1 );
14. Saddle: 90#;
15. Max. speed: 92km/h;
16. Torque: 1160N·m;
17. Rated speed: 2200RPM;
18. Maximum torque speed : 1100~1600RPM;
