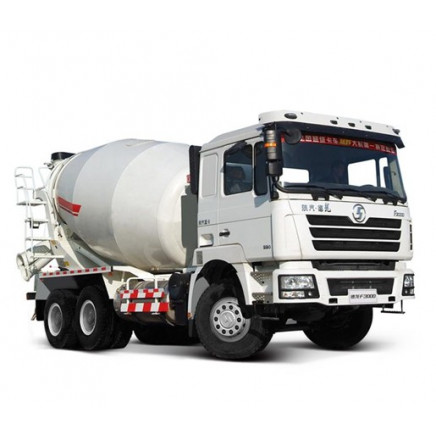

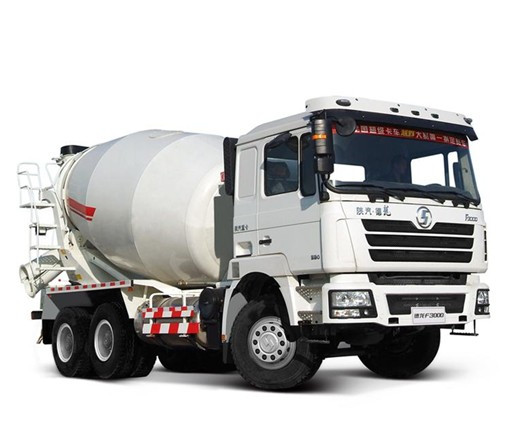

Shacman D'long 6X4 8m3 Concrete Mixing Truck,

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF

Payment Terms:L/C, T/T

Trademark:Shacman

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:SX5251GJBJM334

Certification:ISO9000

Transmission Type:Manual

Engine Type:6 Cylinder

Payload:20T

Fuel:Diesel

Condition:New

Color:White

Power:Diesel

Emission Standard:Euro 3

Truck Type:Mixer Truck

Tire Design:Bias

Seats:?5

Tire Certification:ISO

Tire Type:Inner Tube

Type:Mixer Truck

Export Markets:Global

Additional Info.

Trademark:Shacman

Packing:Nude Packing

Standard:Euro Ii

Origin:China

Production Capacity:60000units/Year

Product Description

SHACMAN D'long 6x4 concrete mixing truck&mixing truck&concrete mixer
Traction type: 6X4
Driving type: LHD (RHD is option)
Cabin: MAN F2000 widened and lengthened normal-roof

Engine
Engine brand: Steyr ( Weichai)
Engine model: WP10.340E32 340HP Euro III
Engine type: 6-cylinder in line, 4-stroke, water-cooled, turbocharged, air-to-air intercooled, direct injection

Displacement: 11.596liters
Max. Output: 340HP@2200rpm
Max torque: 1360NM@1200-1600rpm
Bore/Stroke(mm): 126/155
Specific fuel consumption: 198g/Kwh
Mean positon speed: 9.53m/s
Compression ratio: 15.5: 1
Oil pump: P12

Gear box
Gear box: Fuller9 9JS119
Clutch: GF430 Diaphragm type
Steering: ZF technology

Tyre
Tyre: 12.00R20
No. Of tyre: 10+1spare
Front axle: Man technoology 7.5 front ton
Rear axle: Steyr 13t strengthened axle (punching-welding axle housing, double
Reduction driving axle, inter-wheel differential and differential lock)

Spring: 9/12
Fuel tank capacity (L): 380 Aluminium Alloy Tank
Max. Speed (km/h): 77
Kerb. Mass: 13170kg
Total mass: 25000kg
Wheel base (mm): 3800+1350
Front overhang (mm): 1525
Rear overhang (mm): 2460
Front track (mm): 1939
Rear track (mm): 1850
Approach angle: 20 degree
Departure angle: 18 degree
Dimension (mm): 9135x2500x3810

Body(mixer, drum):
Water Tank: 450L
Mixer drum: 8CBM
Hydraulic pump and moter: ETON (America)
Decelerator: Top (Italy)
Discharged remain ratio: <0.5%.
