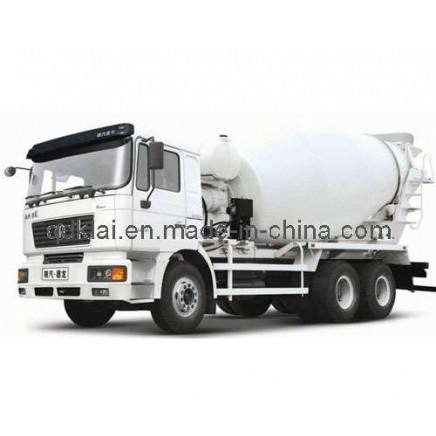

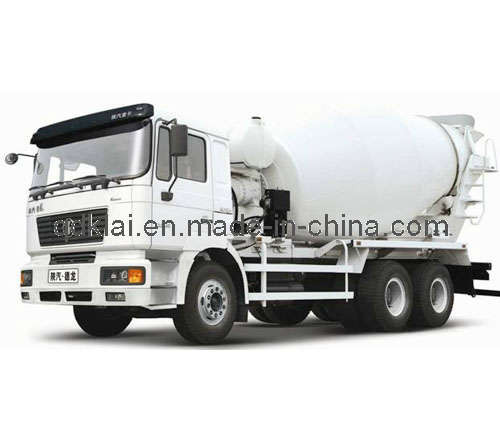

Shacman 9m3 Concrete Mixer Truck with Military Chassis

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 unit

Trade Terms:FOB,CFR,CIF,etc

Payment Terms:L/C, T/T

Production Capacity:20000units/Year

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Condition:New

Power:Diesel

Transmission Type:Manual

Emission Standard:Euro 2

Truck Type:Concrete Mixer Truck

Seats:3

Tire Certification:CCC, ISO

Drive Wheel:6x4

Type:Mixer Truck

Additional Info.

Origin:China

Production Capacity:20000units/Year

Product Description

1. Concrete mixer truck 6x4 shacman chassis
2. Mixing drum 6m3 to 16m3
3. Italy Bonfili speed reducer
4. US EATON hydraulic pump and motor
5. Good performance
6. Timely delivery

Concrete mixer truck
Curb Weight (Kg)	8940
Total Vehicle Weight (Kg)	25000
Outline Dimension (mm)	9100 * 2490 * 3250
Wheelbase (mm)	3265+1350
Front Overhang (mm)	1525
Rear Overhang (mm)	1770
Max Traveling speed	77
Clutch	Dry Single Disc Clutch (? 430)
Gear Box	FAST 9JS119
Driving Type	6*4
Steering Mechanism ZF technology
Service Brake	Dual-circuit Air Brake
Parking Braking	Spring-powered Air-cut-off Brake
Auxiliary Brake	Engine Exhaust Brake
Tyre	12.00(R)-20
Engine Parameters
Type	Diesel 4-stoke Direct injection, 6-cylinder in line, Turbo-charging, Inner cooling.
Emission Standard	Euro II
Max Power (KW)	340HP
Max Torque	1190 N. M
Mixing Drum Parameters	Geometric Volume of Mixing Drum (m3)	14.7
Max Mixing Cubage (m3)	9---10
Feeding Speed (m3)	? 3.5
Discharging Speed (? M3)	? 1.5
Leftover Rate	Nearly Zero
Max Rotating Speed (r/min)	14---16
Mixing Drum Obliquity (° )	13.5
Max Mixing Drum Diameter (mm)	? 2162
Driving System	Speed Reducer	Italian BONFILI-577L
Hydraulic Pump	US EATON5423-518
Hydraulic Motor	US EATON5433-138
Radiator	German AKG with Vacuum Meter
Water Supply System	Water Tank Capacity (L)	260
Water Supply Mode Water Pump; Pneumatic Pump
