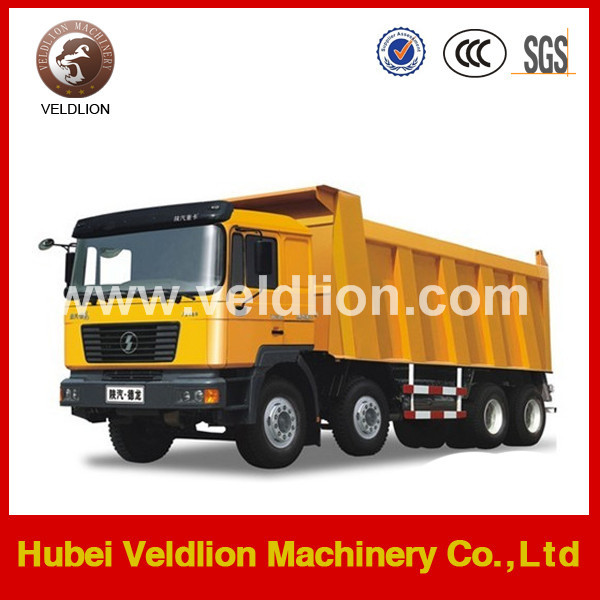

Shacman 8X4 Dump Trucks with Cummins Engine

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 51500/ Piece

Price:US $51500.0 / Piece

Trade Terms: FOB, CFR, CIF, FCA, EXW

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From Jun 11, 2014 To Sep 10, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:VL3315

Transmission Type:Manual

Power:Diesel

Load Capacity:21-30t

Emission Standard:Euro 2

Drive Wheel:8в4

Engine Capacity:4-6L

Seats:?5

Horsepower:251-350hp

Tire Type:Solid Tire

Tire Certification:ECE

Tire Design:Tubeless

Dumping Type:Front Lifting Style

Condition:New

Dump Truck:Tipper Dump Truck

Fump Truck Certification:ISO, BV Test, CCC, SGS

Export Markets:Global

Additional Info.

Trademark:Veldlion

Packing:Nude Package or Roro Ship

Origin:Hubei

Production Capacity:3000PCS Per Month

Product Description

1. Technical parameters of the tipper dump trucks.
(1) For construction and industrial trucks
(2) Curb Weight: 12500kgs
(3) Loading Weight: 25000kgs
(4) Box Volume: 21000L
(5) Engine Power: 266Hp - 420Hp
(6) Steelsheet Thickness: Floor 8mm, front, side and back wall 6mm

We also supply you the other type of HOWO, 4*2, 4*4, 6*2, 6*4, 6*6, 8*4 different engine power(270HP, 290HP, 310HP, 330HP, 350HP, 380HP, and 420HP), EURO II, and EURO III dump truck. We could choose the right truck for you and confirm that is your good assistant in your work.

2. Company introduce
HUBEI VELDLION MACHINERY CO., Ltd is an authorized Special Trucks manufacturer. We are specialized in the production of a variety of special-purpose vehicles.
Creating value for our customers is our company's concept. Welcome to enquiry from us, Let's our sales team make you more great in this field.
Our main products:
1. Heavy duty truck,
2. Fire engine truck
3. Truck mounted with crane
4. Dump truck
5. Water truck,
6. Fuel tanker,
7. Van truck, insulated truck, refrigeration truck
8. Fecal suction truck, sewage suction truck,
9. Concrete mixer truck,
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Bulk cement truck,
13. Chemical liquid tank truck

3. Contact us
Atten: Ms. Julia He
Mobile: 0086-15927026165
www.veldlion.com

Model				SX3315DT326
Kerb mass (kg)				14800
Max. total mass (kg)				31000
Max. speed (km/h)				85
Min. turning diameter (m)				24
Min. ground clearance (mm)				314
Max. gradeability (%)				40
Appearance dimensions (mm)		Max. Length		9830
		Max. Width		2490
		Max. Height		3450
Wheel base (mm)				1800+3200+1350
Overhang(front/rear)				1525/1955
Track width (mm) (front/rear)				1939/1939, 1850/1850
Engine				WP10.375 EURIII
Output power ps r. p. m				375/2200
Torque N.m r. p. m				1250 /1200-1600
Cylinder bore в Engine stroke (mm)				126 в 130
Compression ratio				15.5:1
Fuel consumption for 100km (L)				36
Dimensions of lorry body(L в W в H)				7000 в 2300 в 1100
Fuel tank capacity (L)				300 Aluminum alloy
Clutch				GF430 Single-plate, air-assisted, mechanically operated, spring type
Gearbox	Transmission			Fuller RT11509C
	Gear ratio			12.44 8.31 6.09 4.54 3.36 2.47 1.81 1.35 1.00 13.02(R)
Front axle				6.5STR front axle
Rear axle				16T MAN casting axles
Frame				850mm300mm(8+7)
Suspension			Front	Longitudinal semi-elliptic leaf spring type with telescopic absorber
			Rear	Longitudinal parabolic leaf spring balance type
Steering				ZF8098 Integral type power-steering
Cab				F2000 cab, Middle-long flat head,
