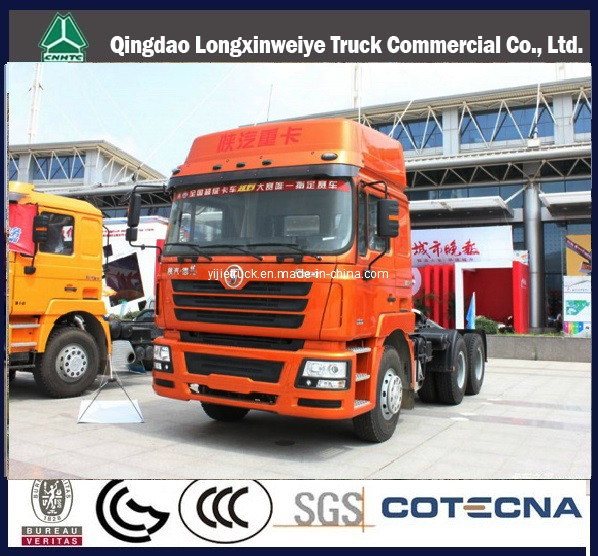

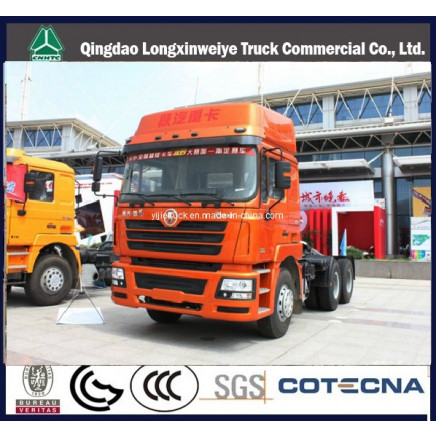

Shacman 6X4 Tractor Head (SX4254NV294)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Piece)	Unit Price
1.0	US $ 20000.0-50000.0/

Price:$20000.0 - $50000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Jan 28, 2015 To Apr 28, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:SX4254NV294

Transmission Type:Manual

Power:Diesel

Load Capacity:31-40t

Emission Standard:Euro 3

Drive Wheel:6×4

Seats:?5

Horsepower:251-350hp

Engine Capacity:?8L

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Condition:New

Truck Type:Tractor Truck

Type:Tractor Truck

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:SHACMAN

Packing:Nude Packing

Standard:Euro 2 or 3

Origin:China

Production Capacity:5000 Pieces/Year

Product Description

Shacman 6x4 Tractor Head (SX4254NV294)

Features:
1) Engine model: WD12.375 375HP(Steyr technology)
2) Clutch: 430 Diaphragm type
3) Transmission: Fuller 12
4) Kerb mass: 9050kg

5) Maximum speed: 92km/h
6) Cab: MAN
7) Tire: 12.00-20
8) Fuel tank capacity: 380L
9) Steering: ZF technology
10) 5th wheel (mm): 50#/90#.

Tractor Truck	Driving type: 6x4 Based onMAN Design platform
Cabin	Air suspension MAN F2000 low cab with sleeper, hydraulic shock absorb adjustable seat, safety belt,
adjustable steering, A/C, sunroof, sun cap, bumper
Engine	Diesel, 4-stoke Direct injection, 6-cylinder in line, radiator, Turbo-charging.
Model:	WD615.34	European technology WEICHAI brand (Euro 2)
	Engine power	340hp/250kw
	Displacement(L):	9.726 Liter
	Max torque:	1350NM@1200~1600
	Bore/stoke:	126mm/130mm
Gear box		Applied American technology
	Model:	FAST 9JS135
	Speed:	9speed, 1reverse
Axle(front/rear)-Military axle
Front axle	7.5ton MAN technology non-driving steering axle
Tandem	13T STR technology double reduction, hub redactor driving axle
(Driving axle)	Wheel differential locks
Clutch	D430 diaphragm type, single dry frictional disc, hydraulic boosting.
Brake	Service brake: Double circuit pneumatic brake
	Parking brake: Spring-Power drum brake
	Engine brake: Engine exhaust brake(EVB)
Steering	ZF technology, driver sit at the RIGHT hand side (RHD)
Electric Equipment
	Operating voltage:	24Vnegative grounded
	Starter:	24V,5.4KW
	Alternator	28V,758W
	Batteryvoltage	12V/135Ah,cigar lighter
Frame	850mm (width)-Variable sections strengthened frame, made as tough road condition
Tyre	10+1 spare tyre with wheel
	12.00-20 bias tyre
Suspension system: Leaf spring type
	Front/Rear	10/12
Overall dimension(mm): 6600x2490x3210/3950 (Length x width x height)
Wheelbase	2925+1350mm
Track:
	Front/Rear	1939/1800/1800
	Approach/Departure angle	16/66
	Front /Rear overhang	1525/800
	Max speed	92km/h
Curb weight:	9210kg	Diesel tank	380L
