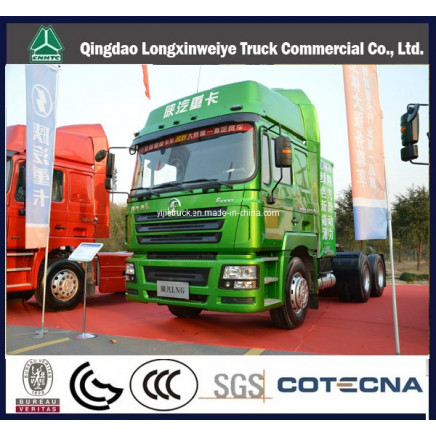

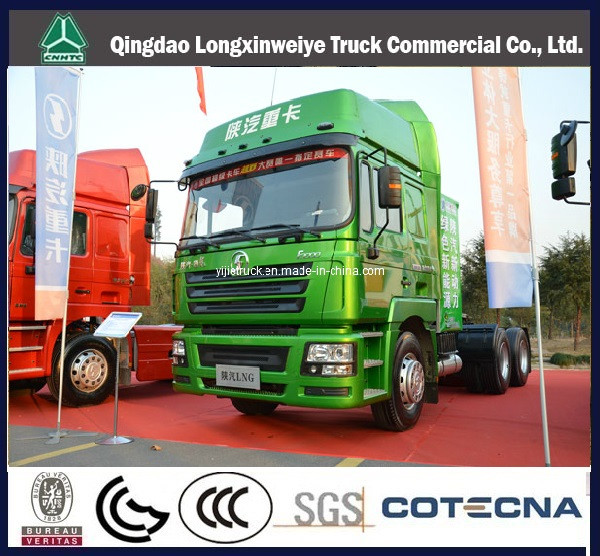

Shacman 6x4 Man Diesel Tractor Trailer SX4254NX294C
Model: SX4254NX294C
Traction type: 6x4
Driving type: LHD (RHD is optioned)
Cabin: MAN cab F2000 widened and lengthened high-roof, with A/C.
Engine brand: Cummins
Engine model: ISM440E 20
Displacement: 11 L
Max. Output: 440HP@1800rpm
Max torque: 2100NM@1200rpm
Bore/Stroke (mm): 125/147
Gear box:
Model: Fuller 12 speeds Model: 12JS210T
Clutch:
Model: D430 Diaphragm type
Steering: ZF8098
Front axle: MAN technology 7.5ton front axle
Rear axle: Steyr strengthened axle (punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock)
Tyre: 12.00R24 (rim: 8.5-24)
Spring: 9/12, 10/12
Fuel consumption (L/ 100km): 32
Fuel tank capacity (L): 400
Max. Speed (km/h): 92
Max. Gradeability(%): 40
Kerb. Mass: 9000 kg
Total mass: 39800kg
Wheel base (mm): 2925+1350
Front overhang (mm): 1525
Rear overhang (mm): 800
Front track (mm): 1939
Rear track (mm): 1800
Turning circle diameter: 14.2 m
Approach angle: 16 degree
Departure angle: 66 degree
Dimension (mm): 6600x2490x3750
5th wheel: 3.5Inch
We can supply kinds of service to customers according to customers' request:
1- Spare parts supply: We have the professional spare part department, with the experienced engineers, we can supply you original spare parts and punctual service;
2- SKD services: For many contries, the freight by RORO/BULK vessel is very expensive while by container it will be much cheaper. In order to save the cost on freight for customers, we can supply you SKD services so that the trucks can be put into containers (40HQ).| Model | SX4257NX294C |
| Drive Type | 6x4 LHD (Right Hand Drive IS OPTIONAL) |
| Cab | Type | Long Cabin(RED Color) |
| Equipment | with Air Condition,two sleepers |
| Weight | Kerb mass(kg) | 8870 |
| GVW(kg) | 8870+32700 |
| Dimensions | Max. length(mm) | 6825 |
| Max. width(mm) | 2490 |
| Max. height(mm) | 3310 |
| Front/Rear overhang(chassis) | 1515/1085 |
| Wheel base(mm) | 3170+1400 |
| Track width(mm) | 2035/1808 |
| Performance | Max. speed (km/h) | 90±10 |
| Max. gradeability(%) | 30 |
| Approach/Departure angel | 26°/32° |
| Engine | Brand | WEICHAI BRAND BOSCH TECHNOLOGY
Diesel: 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & intercooling |
| Model | WP10 series |
| Power (kw/hp) | 200-310kw/290-420hp |
| Max torque (N.M)/rpm | 1100-1920/1400--1600 |
| Displacement (L) | 9.726 |
| Emission Standards | Euro III |
| Transmission | Brand | FULLER |
| Model | 9JS135 12JSD160TA |
| Control type | Manual |
| Gear Shift | 9/12-forward & 1/2-reverse speeds |
| Clutch | Type | Single plate,diaphragm spring |
| Diameter (mm) | ?430 |
| Action | hydraulically operating with air assistance |
| Brakes | Type | Drum |
| Service Brake | With dual-circuit compressed air brake |
| Park Brake | Power spring brake acting on rear wheel |
| Auxiliary Brake | WEVB |
| ABS | ABS(Anti-lock Brake System) |
| Steering | Type | ZF Technology(GERMAN ZF Technology) |
| Chassis | Type | Ladder structure with parallel straight |
| Dimensions (mm) | 300x90x8+6+8 |
| Suspension | Front | Longitudinal leaf spring |
| Rear | Inverted leaf spring stabilizator suspension |
| Axles | Brand | HAND |
| Front | MAN TECHNOLOGY: 7.5 ton drum axle |
| Rear | MAN TECHNOLOGY: 13 ton strengthened axle, double reduction driving axle with inter-wheel differential and differential lock |
| Ratio | 4.625 |
| Tyre | Type | 12.00R20 radial tire |
| Fuel tank | Tank capacity(L) | 400 |
| Material | Plastic (Option: Aluminium alloy ) |
| Electrics | Type | 24V |
| Starter | 5.58kw(24) |
| Generator | 2.0kw(28V 70A) |
| Battery | 2x135Ah |
