Shacman 6X4 Dump Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$45000.0 - $49999.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 45000/ Piece
100.0	US $ 49999/ Piece

Trade Terms: FOB, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Oct 11, 2014 To Jan 11, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:VL3255

Transmission Type:Manual

Power:Diesel

Load Capacity:21-30t

Emission Standard:Euro 3

Drive Wheel:6в4

Engine Capacity:4-6L

Seats:?5

Horsepower:251-350hp

Tire Type:Solid Tire

Tire Certification:ISO

Tire Design:Bias

Dumping Type:Front Lifting Style

Condition:New

Shacman 6X4 Dump Truck:Special Truck

Truck Type:Dump Truck

Type:Dump Truck

Color of Shacman Dump Truck:Yellow

Drive Mode of Shacman Dump Truck:6X4, LHD

Export Markets:Global

Additional Info.

Trademark:VELDLION

Packing:in Bulk or in Container, Wax Polished

Standard:CE, ISO9001: 2000

Origin:China

HS Code:8706002200

Production Capacity:300 PCS Per Month

Product Description

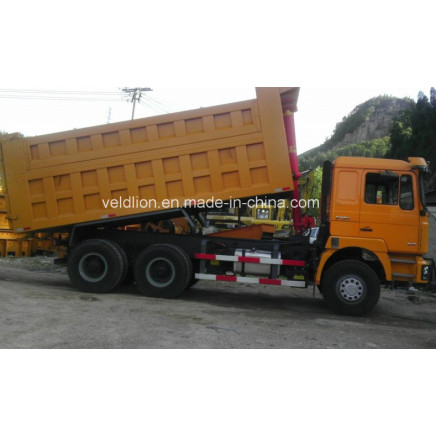

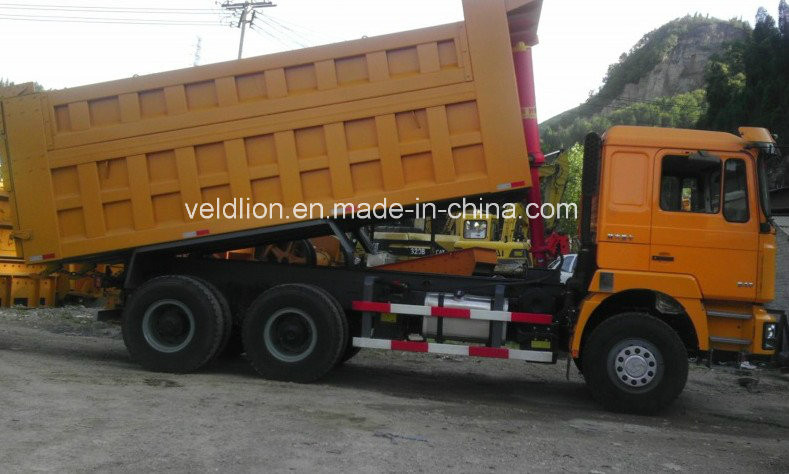

Shacman 6X4 dump truck

I. SPECIFICATION of Tipper truck
1) MAN F3000 Cabin
2) Drive Mode: 6x4, LHD or RHD
3) Overall dimensions(mm): 8275x2490x3300
4) Wheel base(mm): 3800+1350
5) Tire specification: 11.00-20Engine typeC30020
6) Equipment: Equipped with dustbin, hydraulic system and operating system

II. Company introduce for China 20tons Dump Truck
HUBEI VELDLION MACHINERY CO., Ltd is an authorized dump truck manufacturer. We are specialized in the production of a variety of special-purpose vehicles.
Creating value for our customers is our company's concept. Welcome to enquiry from us, Let's our sales team make you more great in this field.

Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

III. Our Service:
(1) Over 400 workers include our sales and engineers will offer you the best design, price and quality;
(2) Pefect after-sales service, offer long days quality guarantee.
(3) within 7-24 hours feedback.

IV. Contact us for China 20tons Dump Truck
Atten: Mr ERIC KE
Mobile: 0086-18961715558
www.veldlion.com

Traction	6x4
Driving type	LHD (RHD is option)
Cabin	l MAN F3000 flat roof cabin, Four-point suspension l One sleeping bed, Air Conditioner,double doors, tippable l Radio player, Safety belt, Adjustable air type. l Dash board with all necessary gauges, such as (km meter, rpm, oil pressure, temperature, air pressure, fuel level), Tachograph, Odometer l Fog lights with side lights and standard lights., l Sun protection on cabin. l Electric circuit with breaker in cabin
	Majo r color : Red , yellow, white
Vehicle Main Dimensions	LxWxH(mm)				8275x2490x3300
	Wheel base(mm)				3800+1350
	Wheel track(front/rear)(mm)				Front track (mm): 1939 Rear track (mm): 1800/1800
	Approach/Departure angle( ╟ )				16 / 66
	Overhang (front/rear)(mm)				1525/1600
Weight in KGS	Tare Weight(kg)				1 12 00 kg
	Load mass (kg)				250 00kg
	Front axle loading capacity				9.5tons MAN technology
	Rear axle loading capacity				2x16tons MAN technology
Driving Speed(km/h)						77
Engine		Brand			Wei chai
		Model			WP10.340E32 340HP
		Emission			Euro III
		Engine type			Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & inter-cooling
		Displacement			12L /Diesel
		Max. output			340hp@2200rpm
		Max torque			1350NM@1400-1600rpm
		Bore/Stroke(mm)			126/130
		Specific fuel consumption			198g/Kwh
		Engine oil filling volume			24L
		Thermostat opening at			80 + 2 ╟ C
Gear box		Model			10JSD140
		Brand			Fuller 10 speeds
		Type			Fuller transmission, mechanism, 9 forward gears, 1 reverse gear,manual,made in China
Clutch		? 430 Diaphragm type , Single dry frictional disc, Hydraulic boosting
Steering		ZF Technology, whole circulation in ball type, hydraulic boosting
		option: ZF8098 from Germany
Tyre		Tyre			12.00R20 Radial tyres
		No. of tyres			10+1spare
Fuel tank		300L Aluminium Tank
Front axle		Man Technology , 9.5tons front axle
Rear axle		Steyr strengthened axle (punching-welding axle housing, double Reduction driving axle, inter-wheel differential and differential lock)
		Front suspension		Conventional and parallel leaf spring type suspension
		Rear suspension		Inverted leaf spring stabilizator suspension
Spring		9 /12,1 0 /12
G radeability		30 %
Manufacturer			S HAANXI AUTOMOBILE GROUP CO.,LTD
Origin			P.R. CHINA
