Shacman 380HP Concrete Mixing Truck, Concrete Mixer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 40000.0-50000.0/ Piece

Price:$40000.0 - $50000.0 / Piece

Trade Terms: FOB

Payment Terms: T/T

Price Valid Time:From Aug 22, 2014 To Jan 31, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:D?long

Certification:ISO9000, CCC, CE

Transmission Type:Manual

Engine Type:4 Stroke

Payload:50T

Fuel:Diesel

Condition:New

Color:White

Power:Diesel

Emission Standard:Euro 3

Truck Type:Mixer Truck

Tire Design:Bias

Seats:?5

Tire Certification:ISO

Tire Type:Inner Tube

Drive Wheel:4WD

Type:Mixer Truck

Export Markets:Global

Additional Info.

Trademark:Shacman

Packing:Nude Packing

Standard:Euro 3

Origin:China

Production Capacity:60000units/Year

Product Description

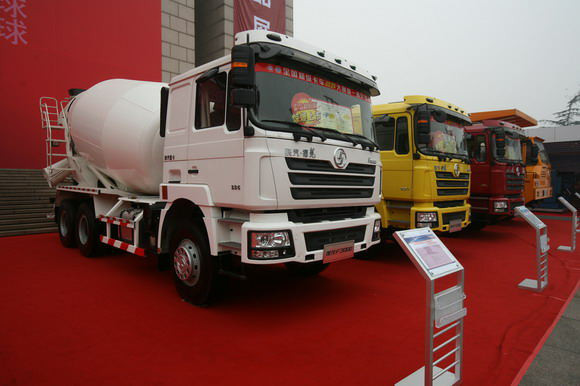

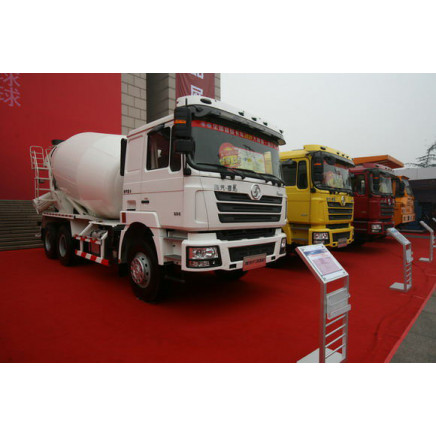

SHACMAN D'long 6x4 concrete mixing truck&mixing truck&concrete mixer
Traction type: 6X4
Driving type: LHD (RHD is option)
Cabin: MAN F2000 widened and lengthened normal-roof

Engine
Engine brand: Steyr ( Weichai)
Engine model: WP10.340E32 340HP Euro III
Engine type: 6-cylinder in line, 4-stroke, water-cooled, turbocharged, air-to-air intercooled, direct injection

Displacement: 11.596liters
Max. Output: 340HP@2200rpm
Max torque: 1360NM@1200-1600rpm
Bore/Stroke(mm): 126/155
Specific fuel consumption: 198g/Kwh
Mean positon speed: 9.53m/s
Compression ratio: 15.5: 1
Oil pump: P12

Gear box
Gear box: Fuller9 9JS119
Clutch: GF430 Diaphragm type
Steering: ZF technology

Tyre
Tyre: 12.00R20
No. Of tyre: 10+1spare
Front axle: Man technoology 7.5 front ton
Rear axle: Steyr 13t strengthened axle (punching-welding axle housing, double
Reduction driving axle, inter-wheel differential and differential lock)

Spring: 9/12
Fuel tank capacity (L): 380 Aluminium Alloy Tank
Max. Speed (km/h): 77
Kerb. Mass: 13170kg
Total mass: 25000kg
Wheel base (mm): 3800+1350
Front overhang (mm): 1525
Rear overhang (mm): 2460
Front track (mm): 1939
Rear track (mm): 1850
Approach angle: 20 degree
Departure angle: 18 degree
Dimension (mm): 9135x2500x3810

Body(mixer, drum):
Water Tank: 450L
Mixer drum: 10CBM
Hydraulic pump and moter: ETON (America)
Decelerator: Top (Italy)
Discharged remain ratio: <0.5%.
