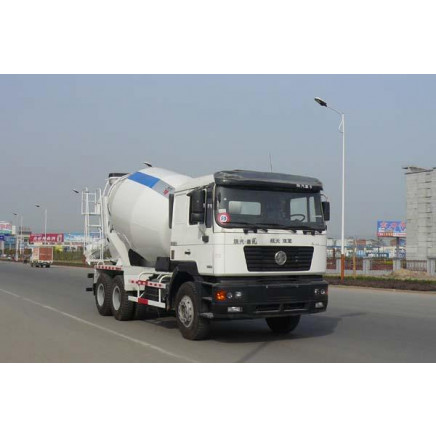

SHAANXI MAN technology concrete mixer truck 6x4 9cbm

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Unit)	Unit Price
1.0	US $ 40000.0-50000.0/

Price:$40000.0 - $50000.0 / Unit

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Dec 05, 2012 To Mar 05, 2013

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:SX5251GJBJM364

Transmission Type:Manual

Condition:New

Engine:WD615.50 290hp

Transmission:Fuller 9 speeds (9JS135)

Steering:ZF technology

Rear axle:Steyr strengthened double reduction driving axle

Mixing body:9cbm

Power:Diesel

Emission Standard:Euro 2

Truck Type:Mixer truck

Tire Design:Bias

Seats:?5

Export Markets:Global

Additional Info.

Trademark:SHACMAN

Packing:Nude Packing

Standard:ISO, CCC

Origin:China(Mainland)

Production Capacity:30000 Units Per Year

Product Description

Model:SX5251GJBJM364
Drive type: 6x4
Chassis:Shanxi automobile
Cabin Features: MAN F2000 widened and lengthened flat-roof cabin
Four-point suspension
One sleeping bed, double doors, tippable
Radio player, Safety belt, Adjustable air type.
Dash board with all necessary gauges, such as (km meter, rpm, oil pressure, temperature, air pressure, fuel level), Techograph, Odometer can be zeroed.
Lights: side lights and standard lights.
Sun protection on cabin.
Engine brand: Steyr (Weichai)
Model: WD615.50
Emission standard: EUROII
Type:Diesel 4-stroke direct injection engine,6-cylinder in-line with water cooling, turbo-charging & intercooling
Displacement: 9.726L
Engine output: 290Hp @2200 rpm
Max. torque: 1160 NM @1100-1600rpm
Bore:126mm
Stroke:130mm
Mean piston speed: 9.5m/s
Compression ratio: 15.5:1
Specific fuel consumption: 195g/kwh

Transmission (gear box): Fuller 9 speeds (9JS135)
Clutch:D430 Diaphragm type
Steering:ZF technology
Type: Hydraulic power steering
Front axle: MAN technology 7.5 ton front axle
Rear axle: Steyr strengthened axle 13ton (punching-welding axle housing, double
Reduction driving axle, inter-wheel differential and differential lock)
Fuel tank: 380L
Tire: 12.00-20 Bias tire
No.tyre: 10+1 spare
Kerb mass:12785kg
Approach angle(°): 20
Departure angle(°): 19
Front overhang(mm): 1525
Rear overhang(mm): 2605
Max.speed(km/h) : 80
Wheel base(mm): 3650+1350
Spring:9/12,10/12
Dimension(mm): 9130*2500*3900
Body(mixer,drum):
Capacity: 9CBM
Slope: 13.5
Rotating speed: 0-18 r/min
Water Tank: 450L
Discharged remain ratio:<0.2%
Hydraulic pump and motor : ITALY TOP
Decelerator:P68 Decelerator
Features:
Crank chute operation
High pressure water jets, with air pressure supply
Rod manipulation
Radiator made in China
