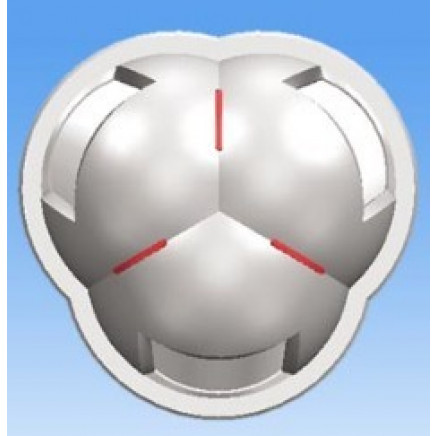

Sensor with 3 Lens Ceiling Infrared Detector (TA-365)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:10 Pieces

Trade Terms:FOB, EXW

Payment Terms:L/C, T/T, Paypal, Money Gram, Western Union

Trademark:T-GUARD

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:TA-365

Type:Anti-Theft Alarm

Signal Transmission:Wired Alarm

Working Mode:Active

Application:Outdoor

Sensor Type:Double Technology Alarm

Usage:Door, Window

Special Feature:3 Lens

Service:OEM & ODM

Export Markets:Global

Additional Info.

Trademark:T-GUARD

Packing:CTN

Standard:CE, UL

Origin:China

HS Code:8531100000

Production Capacity:1000PCS/ Month

Product Description

Ceiling Infrared Detector TA-365

THREE year Warraty

Absorb a locator with red and outside source of a type

Installment Height:2.5m~4m

Detecting Angle:360°

Detecting Coverage: Diameter:12M

Main Feature:

Fussy Logical Intelligent Analysis allowing it to identify the human motion accurately and reduce the false alarm
360° all-dimensional detecting and 3 infrared lenses
Sensitivity level: High, Medium and low for your selection
Anti-jamming Mode: 1(week)/2(strong) modes available for your selection.
Anti-demolition: it will automatically send the alarm signal to the host when it is dismantled
Automatic temperature compensation to ensure the detecting sensitivity
EMI and white- light immunity to reduce the false alarm
SMD adopted and high anti-jamming

TA-365 Wired Ceiling Infrared Detector is an all-dimensional detector which consists of special infrared signal processing chipset, dual pyroelectric transducer, and Fresnel lens. It boasts its steady performances, reliable quality, unique appearance and high anti-jamming. And it is applicable for home, hall, supermarket and wherever where the security is a concern. It is installed on the ceiling with 360 °detecting coverage. Once detecting the infrared radiation given out by human body, it will send the intrusive signal to the host in wired mode

Model	Sensor with 3 Lens Ceiling Infrared Detector (TA-365 )
Input Voltage	DC 9-15V
Static Current	?30 mA (12V DC)
Working Current	?15mA (12V DC)
Installment Height	2.5m~4m
Detecting Angle	360°
Detecting Coverage	Diameter: 12 m
Alarm Output	N/C
Working Environment temperature	-10-40 ºC
Relative humidity	?80%
