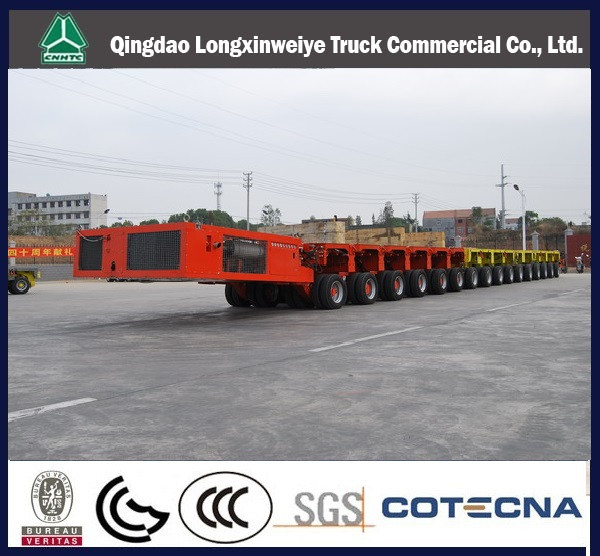

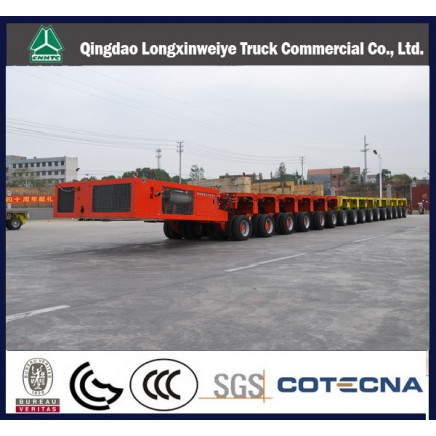

Self Propelled Hydraulic System Modular Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Unit)	Unit Price
1.0	US $ 169800/

Price:US $169800.0 / Unit

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Apr 23, 2015 To Jul 23, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:LAT9702TDP

Type:Axle

Load Capacity:100

Wheel Base:8000-9000mm

Tread:1820mm

Grade:Heavy Duty

Towing Pin Material:Carbon Steel

Impeller Type:Closed Type

Hook Type:Single

Universal Joint Type:Rigid Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:Mushroom Type

Towing Pin Diameter:90mm

Differential Gear Type:Anti-slip Type

Independent Suspension Type:Cross Arm Type

Connecting Type:Semi-trailer

Shape:Flatbed

Axle Number:4

Tire Number:12

Self-dumping:Not Self-dumping

ABS Anti-lock Braking System:No ABS Anti-lock Braking System

Material:Steel

Condition:New

Export Markets:Global

Additional Info.

Trademark:CIMC

Packing:Nude Packages

Origin:Shandong, China

Production Capacity:1000unit/Year

Product Description

Model: LAT9702TDP
1, suspension; Rigid, single point or air suspension
2, material of the main beam: Q690
3, Axles number: More than 3
4, Design type; Self propelled
5, with hydraulic system used in yard

Order information:
1, Payment terms: T/T or L/C.
2, Delivery time; Within 15 days after receipt your deposit or L/C
3, packing: In nude
4, shipment type: By bulk ship, ro-ro or container

Description
1. Be designed according to your requirements
2. More than twelve years professional manufacturer experience
3. Be designed according to your requirements
4. CCC, ISO9001, SGS, CE agreement
5. Small order can be accepted
6. Mean beam 12 months quality guarantee term, easily damaged parts warranty lifetime.
7. We accept 100% inspection, welcome to our factory at any time

Company information:
We specialized in many kinds of trailers and special vehicle (Aotong brand): All types semi trailer: Store house bar series, van semi-trailer series, container carrier trailer, dump trailer, tanker trailer series, modular trailer, special trailer and transport car series etc.

Pls contact the supplier for details, good quotation and further product information will be provided as required. We will be 24 hours on line, waiting for your kind inquiry.

Product Name	Model	Outside Dimension L×W×H	inside Dimension L×W×H	leaf spring	NO.of tire	NO. of Axle	type of tire	Total Weight(kg)	Rated Loading Capacity(kg)	Distance of each Axle(mm)
store house bar semi trailer	LAT9402CLXY	12000,11500X2500X 3400,3600,3800,4000	11850,11350X2340X 1800,2000,2200,2400	10 (8) (4)	12	3	11.00R20 12PR 11.00-20 12PR 12R22.5 12PR	40000	34000	6130+1310+1310 5630+1310+1310
	LAT9281CLXY	13000X2500X4000,3800,3600,3400	12800X2300X2400,2200,2000,1800	10 (8)	12	3	10R22.5 10PR	28000	21000	6830+1310+1310
	LAT9300CLXY	10000X2500X3950,3750,3550,3350	9800X2300X2400, 2200,2000,1800	10 (8) (4)	8	2	11.00R20 14PR 12R22.5 14PR	30000	24000	5690+1310
	LAT9390CLXY	13000X2500X4000,3800,3600,3400	12800X2300X2400,2200,2000,1800	10 (8) (4)	12	3	11.00R20 12PR 12R22.5 12PR	39200	31000	6900+1310+1310
	LAT9400CLXYE	13000X2500X4000, 3800,3600 3400,3200	12800X2300X2600, 2400,2200 2000,1800	10 (8) (4)	12	3	11.00R20 12PR 12R22.5 12PR	40000	33000	6900+1310+1310
	LAT9400CCY	13000,12500X2500X 4000,3800,3600,3400	12850,12350X2340X 2400,2200,2000,1800	10 (8) (4)	6	3	425/65R22.5 20PR	40000	33500	6810+1310+1310 6510+1310+1310
	LAT9401CCY	13000,12500X2500X 4000,3800,3600,3400,3200	12850,12350X2340X 2600,2400,2200,2000,1800	10 (8) (4)	6	3	425/65R22.5 20PR	40000	33500	6810+1310+1310 6510+1310+1310
	LAT9402CCY	11000,10500X2500X 4000,3800,3600,3400	10850,10350X2340X 2400,2200,2000,1800	10 (8) (4)	6	3	425/65R22.5 20PR	40000	34000	5300+1310+1310 5000+1310+1310
	LAT9401CLXY	13000X2500X4000,3800,3600,3400	12800X2300X2400,2200,2000,1800	10 (8) (4)	12	3	11.00R20 12PR 12R22.5 12PR	40000	32000 (31850)	6900+1310+1310
	LAT9403CLXY	11000,10500X2500X 3950,3750,3550,3350	10800,10300X2350X 2400,2200,2000,1800	10 (8) (4)	12	3	11.00R20 12PR 12R22.5 12PR	39500	31000	5350+1310+1310 5000+1310+1310
	LAT9404CLXY	11000,10500X2500X 3950,3750,3550,3350	10800,10300X2350X 2400,2200,2000,1800	10 (8) (4)	12	3	11.00R20 12PR 12R22.5 12PR	40000	33000	5350+1310+1310 5000+1310+1310
	LAT9405CLXY	13000,12500X2500X 3950,3750,3550,3350	12850,12350X2350X 2400,2200,2000,1800	10 (8) (4)	12	3	11.00R20 12PR 12R22.5 12PR	40000	33000	6460+1310+1310 5960+1310+1310
	LAT9340CLXY	13000,12500X2500X 3950,3750,3550,3350	12850,12350X2350X 2400,2200,2000,1800	10 (8)	12	3	10R22.5 12PR	34000	26000	6460+1310+1310 5960+1310+1310
	LAT9320CLXY	11000,10500X2500X 3950,3750,3550,3350	10850,10350X2340X 2400,2200,2000,1800	10 (8)	12	3	10R22.5 12PR	32200	24200	5480+1310+1310 4980+1310+1310
Brand Name			Aotong Brand
Manufacture			Liangshan Juyuan special vehicle manufacturing Co., Ltd
Main Frame			Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes
Floor			Steel Sheet 3mm thickness
Axle			1. brand: FUWA (BPW optional) 2. alxe load: 21000kg
Suspension			Independent stamping steel rigid suspension ( air suspension)
Leaf Spring			Six sets of reliable local brand, 7-piece leaf
King Pin			2" or 3.5" traction pin made in China( Jost optional)
Landing Gear			chinese brand loading 28000kg (JOST optional)
Wheel Rim			12 units of 7.50-20 rim
Tyre			12 units of 10.00-20 nylon tyre
Spare Wheel Carrier			One set of spare wheel carrier including a riser.
Braking System			Kemi or other Brand of China; ABS (optional )
Brake Air Chamber			Four double and two single chamber
Electrical System			1. Voltage: 24v 2. Receptacle: 7 ways(7 wire harness)
Painting			Sand blasting processing clean rust 1 coat of anticorrosive primer 2 coats of finish urethane paint Color as customer choice
Accessory			One tooling box with a set of standard trailer tool
Usage			Suitable for the agricultural, sideline and other light products' transportation. The design is convenient for products' unloading, and it's not only satisfy the rated load also reduce the burden of the compartments.
Other Descriptions			The cargo's carring part of the stake truck is store house bar style designed, the beam wears through the longitudinal beam which is welded as a space frame structure, making the frame strength, stiffness, flexibility an equilibrium, a strong carrying capacity without permanent deformation.
remark			we can designed model according to client's requirement.
