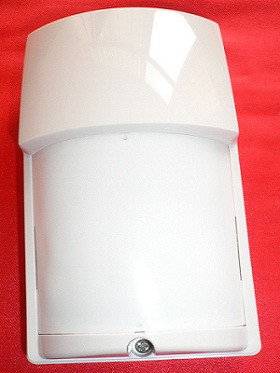

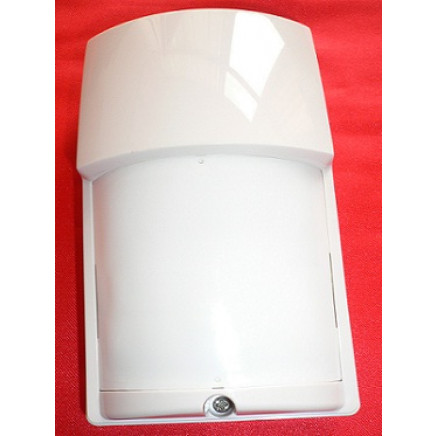

Selectable Outdoor Passive Infrared Motion Detector (LX-402)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:50 Pieces

Trade Terms:FOB, EXW

Payment Terms:T/T, Paypal, Western Union

Trademark:OPTEX

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPTEX LX-402

Type:Sensor

Usage:Anti-theft

Installation Mode:Wall Mounted

Application:Home

Detect:12*15 M

Export Markets:Global

Additional Info.

Trademark:OPTEX

Packing:CTN

Origin:China

Production Capacity:10000PCS/Month

Product Description

Description:
The LX Series is robust, weatherproof and specifically designed for short-range outdoor Event-Driven CCTV applications.
The small size and attractive finish ensures that it will blend into even the most sensitive areas. Wide angle and long-range options offer flexibility and advanced features such as sensitivity and range adjustment. A built-in light sensor provides day and night modes and further adds to the flexibility of the LX Series.
An ingenious mirror assembly allows the sensor to provide a pet alley configuration, while the inclusion of Optex patented Double Conductive Shielding ensures the sensor is highly resistant to interference from foreign light sources such as the sun and car headlights.
Features
1. Patented Double Conductive Shielding
2. Selectable detection patterns (pet alley or multi level)
3. Area masking strips
4. Sensitivity selection switch (high, mid and low)
5. Selectable pulse count (test or 2)
6. Day & night modes
7. LX-402 C standard model 12m x 15m

Name:	Selectable Outdoor passive infrared motion detector(LX-402)
Model:	OPTEX LX-402
Detection model:	passive infrared
Detection area:	40ft50ft(12m15m)120°wide
Coverage:	multi-level area: 40zones
Coverage:	pet alley area:18zones
Mounting height:	multi-level area: 8.3ft(2.5m)max
Mounting height:	pet alley area:4-5ft(1.2-1.5m)
Detection speed	1-3.3ft/sec.(0.3-1.0m/sec.)
Sensitivity adjustment	selectable 3 position(H,M,L)
LED indicator:	LED lights during detection
Alarm period	2±1sec.(delay timer)
Alarm output	NC.NO.28VDC 0.2A max
Tamper switch	opens when cover removed
pulse count	2(20±5sec.)or TEST(1pulse)
Day/night mode adjustment	approx. 10 to 100,000 lux
Warm up period	approx.60 sec.
Power input	10.8-13.2VDC
Current draw	25mA max
Mounting	wall(indoor/outdoor)
Operating temperature:	-20°C to +50°C
Environment humidity	95%max
Weight	6.0oz(170g)
IP rating	IP54
Accessory	Masking strips,mounting screw,sponge
