Sealed Type Dump Garbage Truck (QDT5160ZLJE)

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

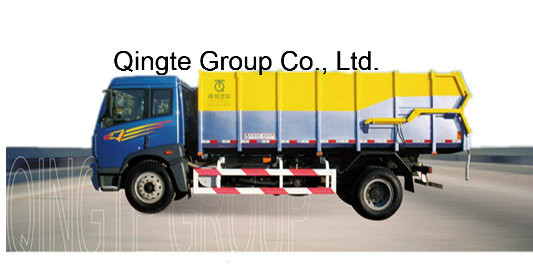

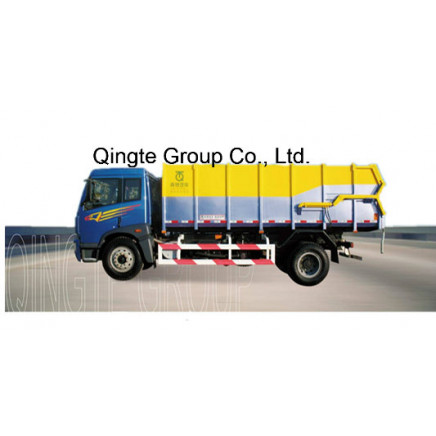

Sealed Type Dump Garbage Truck (QDT5160ZLJE)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 33000/ Piece

Price:US $33000.0 / Piece

Trade Terms: FOB, CFR, CIF, DDP, DAP, FCA, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Oct 06, 2014 To Jan 06, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QDT5160ZLJE

Type:Dump Type

Certification:ISO9000, CCC, TS16949, CE

Volume:?15000L

Emission Standard:Euro 4

Transmission Type:Manual

Engine Type:2 Stroke

Payload:8t

Fuel:Diesel

Drive Wheel:4×2

Brand:Jiefang

Models:Single Bridge

Usage:Dump

Chassis:EQ1168kj

Condition:New

Chassis Model:EQ1168kj

Engine Type/Cc(Ml):Isde180 30(Optional)

Rated Power(Kw):132

Loading Capacity(Kg):8025

Curb Weight(Kg):7780

Gross Weight(Kg):16000

Wheel Specification:10.00-20(Optional)

Tank Volume(Cbm):16.8

Hydraulic System Rated Power(MPa):16

Filling Time(S):25

Export Markets:Global

Additional Info.

Trademark:Qingte

Packing:Nude Packing

Standard:SGS

Origin:Qingdao, Shandong, China

HS Code:8716

Production Capacity:1000/Year

Product Description

Sealed type Dump Garbage Truck is one set of special equipment for environmental. It is adopted our large advanced technique of refuse compression. Equipment electrical and hydraulic components are well-known international brand, with a long product life, low failure rate. Fully sealed design tank body and a large capacity sewage slot on the rear bottom, to avoid sewage leakage pollution during transportation; This vehicle will mainly meet the need of refuse processing in small-medium cities and large towns

Model	QDT5160ZLJE
Chassis Model	EQ1168KJ
Engine Type/cc(ml)	ISDe180 30(Optional)
Rated Power(kw)	132
Wheel Specification	10.00-20(Optional)
Loading Capacity(kg)	8025
Curb Weight(kg)	7780
Gross Weight(kg)	16000
Max Speed(km/h)	90
Dimension(L/W/H)(mm)	7685X2480X2940
Wheel Base ( )	4500
Wheel Track(Front/Rear) ( )	1940/1860
Overhang(Front/Rear)	1205/1980
Approach Angle/Departure Angle (°)	25/18
Tank Volume(m³)	16.8
Hydraulic System Rated Power(Mpa)	16
Tank Lifting Angle (°)	48±2
Filler Opening Lower Edge Ground Clearance(mm)	Appr.1450
