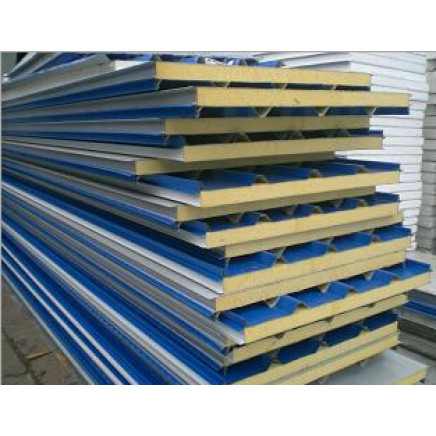

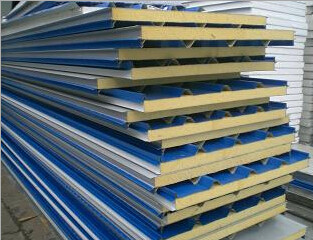

Sea Blue Corrugated PU Sandwich Panel

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$3.5 - $23.5 / Meter

Min. Order (Meter)	Unit Price
1000.0	US $ 3.5-23.5/ Meter

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Sep 12, 2014 To Dec 12, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Description

Details

Basic Info.

Model NO.:Width 950 1000 1100 1150

Material:Sandwich Panel

Usage:Warehouse, Villa, Dormitories, Temporary Offices, Workshop, House/ Wall

Certification:ISO, SGS

Steel Thickness:0.5mm

Width:950 1000 1100 1150

Export Markets:Global

Additional Info.

Trademark:SXGG

Packing:Seaworthy as Customer?s Requirement

Origin:Xiamen, China

Production Capacity:10000ton/Per Month

Product Description

Rock wool sandwich panel
1, Excellent price and quality
2, Light weight
3, Easy installation
4, Heat and fire insulation

Product Description
Heat Insulation / Inflaming Retarding
Thickness: 50mm-200mm
Width: 950mm/1150mm
Steel Thickness: 0.35mm-0.80mm
Color: As request

This kind of Sandwich Panel has many features as follows:
Material:
1. The thickness of up/lower steel panel: 0.35-1.2mm colour-coated panel/zinc plate, hot galvanized plate/stainless steel panel
2. Core material---The density of this(mineral)
Rock wool is: 120-250kg/m3
3. Side steel strip or not: 0.35-0.8mm galvanized plate

Specification:
1. The suitable interface width: 950mm, 1150mm
Thickness: 50mm-200mm
Length: Less than 11.8m
2. Surface protection: PVC film

Characteristics:
1. Advantage: Good fire-resistance, noise-absorbing
2. Fire resistance raring: None

Usage:
This kind of sandwich panel can be used in steel structure workshop, easy building and air clean room as walls, ceilings.

Rockwool sandwich panel
Type	RW-1150-50
Dimensions	Total thickness	50mm
	Width	1150mm
	Length	Less than 11.8m
External face	Material	PPGI
	Thickness	0.18-0.6mm
	Thickness of the zinc	60g-80g/m2
	Corrosion protection	Galvanized
	Coating	Polyester
	Thickness of coating	20 micron
	Color	According to the RAL
	Pattern	Nearly plain
Insulation	Optional foam Material	EPS PU Rockwool Paper honeycomb
	Thickness	50-200mm
	Density	EPS 12~25KG/M3; PU 36-45KG/M3; ROCKWOOL>110KG/M3;
	Thermal conductivity	0.045w/m2k 0.021W/M2K 0.0034W/M2K0
Internal face	Material	PPGI
	thickness	0.18-0.6mm
	Thickness of zinc	60g-80g/m2
	Corrosion protection	Galvanized
	Coating	Polyester
	Thickness of coating	7micron
	Pattern	Plain
Shipping terms
Package	Seaworthy or as customers' requirement
Delivery time	Within 15-20days after your prepaid
application	Purification workshop condole top , Industrial workshop and warehouse
