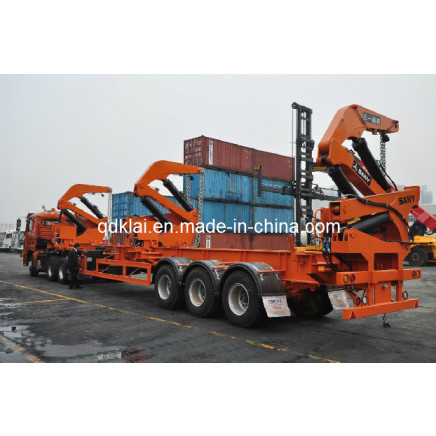

Sany 20ft or 40ft Container Side Lifter Semi Trailer, Self Loading Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 UNITS

Trade Terms:FOB, CFR, CIF

Payment Terms:L/C, T/T

Trademark:SANY

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Type:Semi-Trailer

Material:Iron

Scale:Heavy Duty

Certification:CE

Additional Info.

Trademark:SANY

Standard:ISO, CE, CCC

Origin:China

Production Capacity:40000PCS/Year

Product Description

1. Rated Capacity 35000kg
2. Overall weight: 27000kg
3. Container size: 40ft or 20ft
4. Trailer Dimension: 14846* 2490* 1800mm
5. Good performance and reasonable price
6. Timely delivery
7. Best after-sales service

Rated capacity	kg	35000
Overall weight	kg	27000
Container size		40' x1 or 20' x2
Layer of stack	layer	1 (9'6'')
Overall length	mm	18780
Overall width	mm	2490
Overall height	mm	3250
Min. Ground clearance	mm	310
Hoisting height	mm	5760
Min. Turning radius	mm	20000
Grade ability	%	28
Max travel speed	Km/h	60/92
Overall displacement of hydraulic system	ml/r	80
Working pressure of hydraulic system	Mpa	23
Trailer dimension	mm	14846* 2490* 1800
