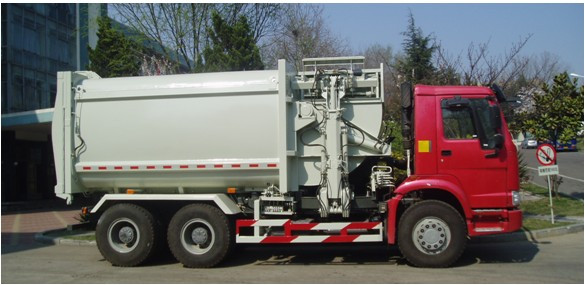

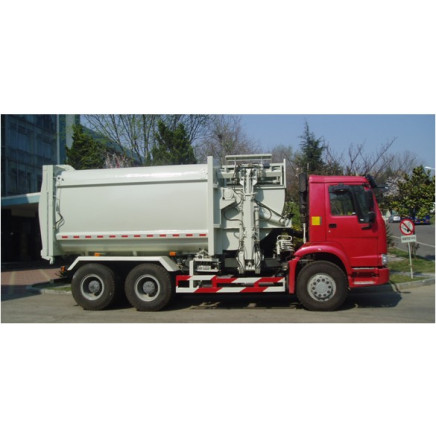

Said-Loading Compressed Refuse Truck (QDZ5252ZYSZH)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 unit

Trade Terms:FOB, EXW, CIF, DDP, DAP

Payment Terms:L/C, T/T

Model NO.:QDZ5252ZYSZH

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QDZ5252ZYSZH

Type:Garbage Truck

Certification:ISO9000

Volume:10000-20000L

Engine Type:4 Stroke

Fuel:Diesel

Export Markets:Global

Product Description

Characteristics:
1) The materials of upper parts fundamentally guarantee the performance and service life.
2) The key hydraulic elements are imported, with advanced functions and reliable quality.
3) The truck is controlled both manually and electronically, which is easy to operate.
4) Seal system adopts hydraulic automatic locking sealing mechanism to solve sewage leakage thoroughly.
5) Feed mechanism has the function of catching garbage can, hanging and lifting can, as well as discharging, which can be operated inside the cab by the driver.

Model	QDZ5252ZYSZH
Chassis Model	ZZ3257M3847C
Overall Dimensions (LxWxH) (mm)	8075X2500X3490
Pressure of Hydraulic System (MPa)	18
Kerb Mass (kg)	14690
Loading Mass (kg)	10180
Gross Vehicle Weight (kg)	25000
Max. Speed (kg/h)	75
Engine Model	WD615.93E (EuroIII)
Engine Output (KW/r/min)	213/2200
Body Volume (m 3 )	17
Filler Volume (m 3 )	2.0
Discharging Angle (А)	?43
