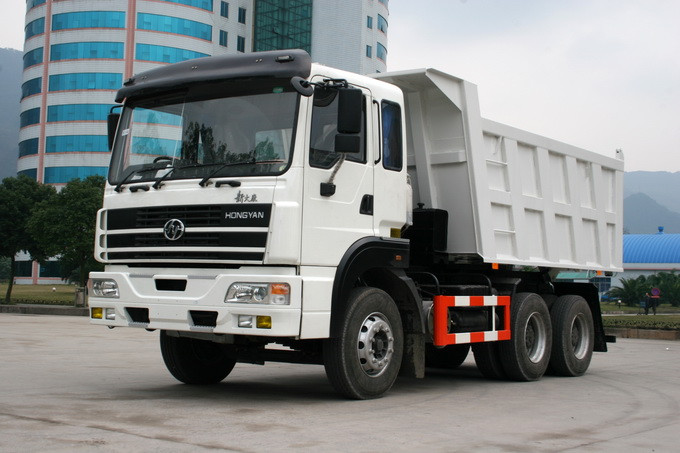

Saic-Iveco Hongyan 6X4 Heavy-Duty Dump Truck (CQ3254T8F39G324)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 45000.0-50000.0/ Piece

Price:$45000.0 - $50000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Jul 28, 2015 To Apr 08, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CQ3254T8F39G324

Transmission Type:Manual

Power:Diesel

Load Capacity:21-30t

Emission Standard:Euro 3

Drive Wheel:6ط4

Engine Capacity:?8L

Seats:?5

Horsepower:351-450hp

Tire Type:Solid Tire or Inner Tube

Tire Certification:ISO

Tire Design:Bias or Radial

Dumping Type:Middle Lift/Front Lift

Condition:New

Truck Type:Dump Truck

Color:Red, White, Yellow

Cab:Right Hand Drive

Export Markets:Global

Additional Info.

Trademark:HONGYAN BRAND

Packing:Nude Packing, Seaworthy

Standard:Euro3 Emission Standard

Origin:China

HS Code:8704230090

Production Capacity:10000 Pieces Per Year

Product Description

Saic-Iveco Hongyan mature classic RHD version of XINDAKANG Series,
Dump Truck Model: CQ3254T8F39G324, with Weichai engine, or Saic-Fiat Hongyan Cursor series engine, or Shangchai Power engine, Fuller tech transmission.

Model	CQ3254T8F39G324
Cab	XinDaKang, Right hand drive Equipped with AC
Drive	6ط 4
Payload (kg)	12370
Kerb Weight (kg)	12500
Gross Vehicle Weight (kg)	25000
Max Speed (km/h)	85
Gradeability (%)	38
Overall Dimension(mm)	8650ط 2500ط 3346
Skip Volume (m3)	16
Skip Dimension (mm)	5400ط 2300ط 1235
Wheelbase (mm)	3825+1350
Engine	WP10.340E32; Euro3 Standard
Engine Output(Kw)	250(340HP)
Gearbox	9-Gear, FULLER Technology
Front Axle	Forging Press I-shaped Axle. Allowed capacity: 6500 kg
Drive Axle	Full-Floating, Double-Reduction, with Differential Lock Allowed capacity: 16000 kgط 2
Tyre	12.00R20ط 11PR
Oil Tank (L)	350L Aluminum-Magnesium Alloy
