Description

Details

Basic Info.

Model NO.:DF-766M2362

Type:Monitoring System

Application:Sentinel Surveillance

Feature:Waterproof / Weatherproof

Video Capture System:Video Camera

Video Transmission System:Wireless Transmission

Software Function:Monitoring+Control

Software Usage:Vehicle Monitoring Software

Client Software:Without Client Software

Model:CCTV

Sensor:CCD

Kind:Autofocus Lens

Technology:Wireless

Horizontal Resolution:420tvl

Export Markets:Global

Additional Info.

Trademark:VEISE

Packing:Gift Box

Standard:CE, FCC, ISO9001: 2000, RoHS, E-MARK

Origin:China

HS Code:8528591090

Production Capacity:5000PCS/Month

Product Description

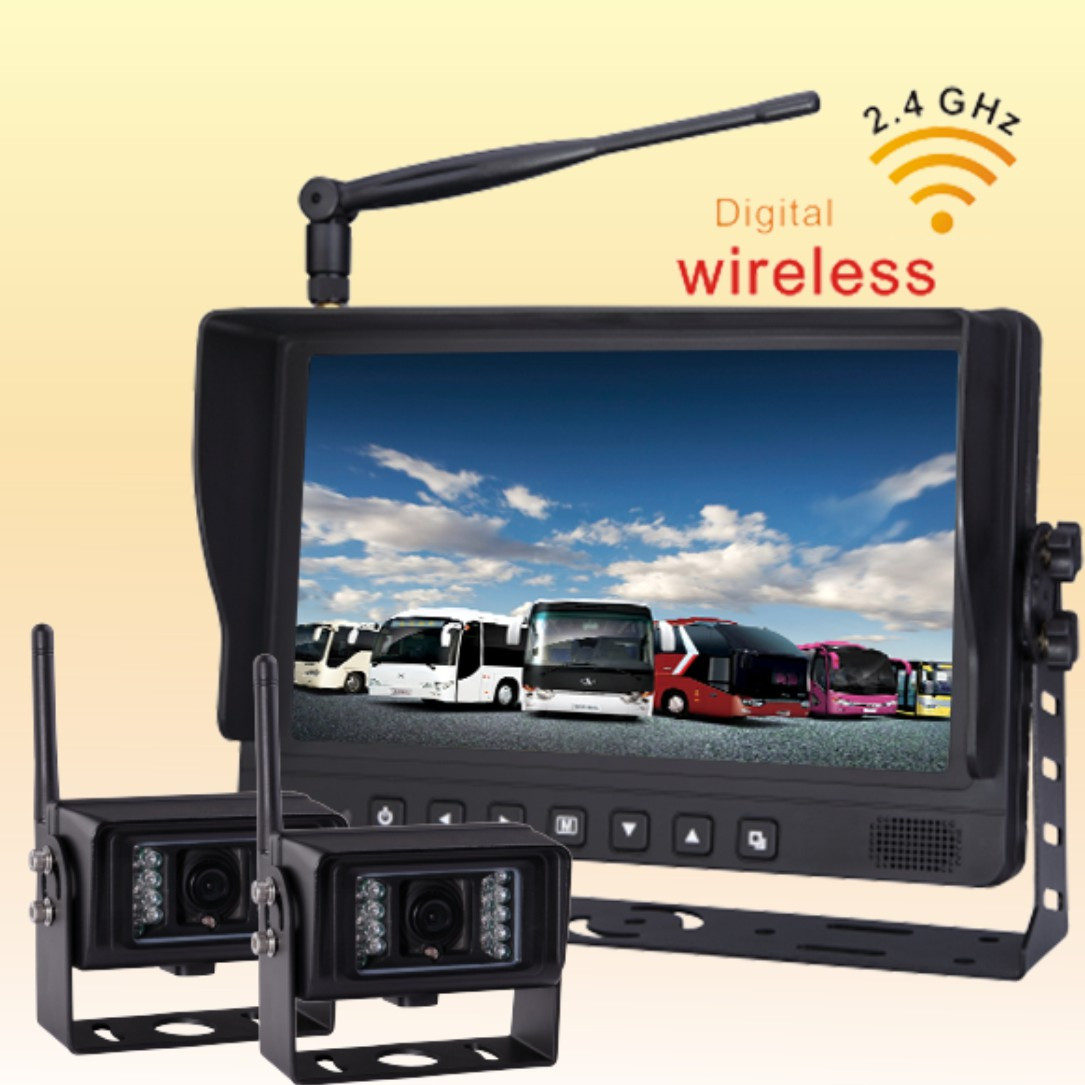

Safety Solutions With Backup Camera And Rear View Monitor

Camera Observation Video System That Mounts To Your Tractor, Combine, or Trailer ,System fits to many brands including: John Deere, Ford / New Holland, Case - International, Massey Ferguson, Kubota, Allis Chalmers, White / Oliver / Mpl Moline, Deutz, Yanmar, Gleaner, Steiger, Versatile, and more.

Safety Solutions with Backup Camera and Rear View Monitor

Digital Wireless Quad Monitor Camera System

2.4GHz Digital Wireless Transmission CCTV Camera (MODEL:DF-8275SFS*2)

Image Type: 1/4 inch Color CMOS

Built in 2.4GHz Digital wireless transmitter

Transmission Power:18dBm with Power control

Line of Sight Range:?100M

Horizontal Resolution:420TV Lines

Effective pixel:NTSC:640(H)X480(V);PAL:640(H)X480(V)

Usable Illumination : 0Lux ( Built in 18pcs IR LED's for Picture Support in the Dark)

Free viewing angle: 120°

Waterproof: IP69K

Shockproof: 10G

Free Operating Voltage: DC10-32 Volts

Dimensions: 106(W) x 75(H) x 70.4(D) mm (without mounting)

Digital Wireless Receive Monitor(Model:SP-766M2)

7" Digital Screen TFT LCD Monitor with Removable Sun Visor

Built-in 2.4G digital wireless receiver module, supports single screen /double screen display

Operation Frequency:2400 ~ 2483.5MHz

Receiving Sensitivity:?-86dBm(1MHZ QPSK MD300RE)

Overlapping Hopping Channel:80

Color System:PAL/NTSC

Display Resolution: 800RGB(H) X 480(V) dot

Wide view angle(CR>10):(up/ down): 45/65 (left/right): 65/65

Brightness (cd/m2): 450

Contrast ratio: 500:1

Operating temperature: -20ºC to +70ºC

Storage temperature: -30ºC to +80ºC

Free Operating Voltage: DC10~32V

External dimensions:(L x W x T) (199 x 128 x 28mm) without mounting Sun Visor

Weight Approx: 400g

Product Accessories

U- Support Bracket,Angle Adjustment Screw*2,Removable Sun Visor*1,Electrical Connecting Cable*5,Antenna*6,Hexagon Screw pack*4,User's Manual*1
