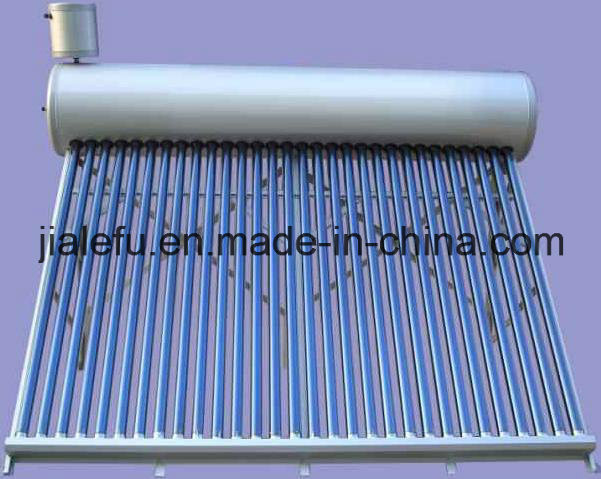

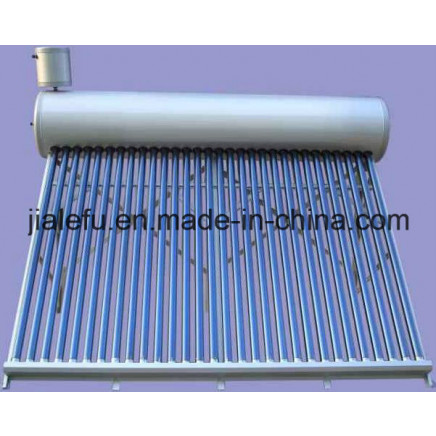

SABS Solar Geysers for Home Use

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 75.0-250.0/ Piece

Price:$75.0 - $250.0 / Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T, D/P, Paypal

Price Valid Time:From Apr 04, 2015 To Jun 13, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:JLF-SP20

Max. Capacity:51-100L

Structure:Separate Type

Pressure:Unpressurized

Interior Material:Stainless Steel

Collector Components:Glass Vacuum Tube

Composition:Connecting Pipe

Certification:CE, ISO9001, CCC

Certificate:CE CCC ISO

Frame:30degree to 60degree

Tube Size:58mm 1800mm

Solar Water Heater Color:as Per Customer

Warranty:5 Years

Product:Sabs Solar Geysers, Home Use Sabs Solar Geysers, S

Export Markets:Global

Additional Info.

Trademark:JLF

Packing:Export Standard Carton with Foam

Standard:58mm*1800mm

Origin:China

HS Code:8419191000

Production Capacity:36000

Product Description

SABS Solar Geysers, Home Use SABS Solar Geysers, Solar Hot Water Heater Sabs Certificate Approved

SABS Solar Geysers, Home Use SABS Solar Geysers, Solar Hot Water Heater Sabs Certificate Approved Specifications:
1. Inner water tank: SS304 stainless steel 1.0-1.2mm
2. Outer water tank: SS304 stainless steel 0.4mm
3. Bracket: SS304 stainless steel 1.5mm / 1.2mm
4. Insulation layer: 55mm
5. Tank diameter: 470mm

Pressure Solar Water Heaters/Solar Geysers
Highly absorptive with an average daily performance efficiency over 50%;
Quick start-up, heat pipe transfer the heat energy into the storage tank in single direction.
Withstand pressure of 0.6 MPa, can be connected directly to city tap water system.

No water running inside the evacuated tubes, the water heater can be still in service even with several tubes broken;
Highly efficient insulation with polyurethane foam;
Simple structure, easy to assembly and install, diffusing light reflector can be assembled easily with its module structure;
Can be used all year round in cold climate;
Can be used together with auxiliary electric boost;
Service life as long as 15 years; Environment-friendly, power-saving

Pressure Solar Water Heaters/Solar Geysers Working Principle:
One copper coil is installed inside the tank as the heat exchanger. When water flows into the copper coil. It absorbs the heat of the water in the tank via the copper coil therefore the water tank is just a heat storage tank.
Working pressure: 6 bar

6. Temperature using range: >50 degrees below zero

SABS Solar Geysers, Home Use SABS Solar Geysers, Solar Hot Water Heater Sabs Certificate Approved Model	Tube Size	Tube Qty	Actual Capacity	Loading QTY
	MM		(L)	20 GP	40 GP	40 HP
JIJ5818-15-HP	58 mm 1800mm	15	150	44	91	115
JIJ5818-18-HP	58 mm 1800mm	18	180	37	78	98
JIJ5818-20-HP	58 mm 1800mm	20	200	35	72	91
JIJ5818-24-HP	58 mm 1800mm	24	240	29	60	76
JIJ5818-30-HP	58 mm 1800mm	30	300	23	49	62
JIJ5818-36-HP	58 mm 1800mm	36	360	20	41	52
